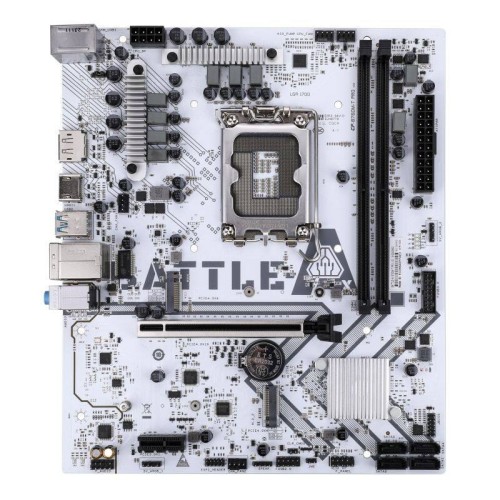

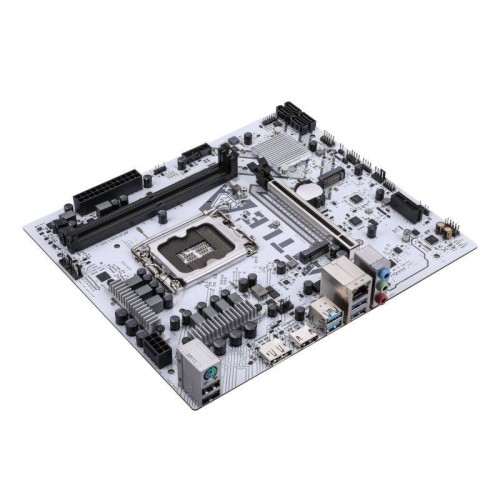

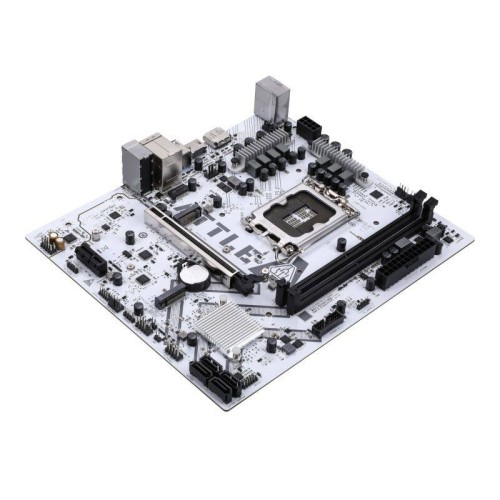

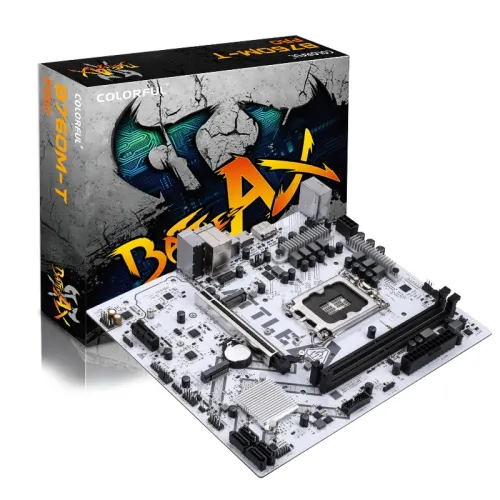

COLORFUL BATTLE-AX B760M-T PRO V20 mATX Motherboard
The COLORFUL BATTLE-AX B760M-T PRO V20 motherboard is a cutting-edge and feature-rich solution designed to meet the demands of gamers and PC enthusiasts. Engineered to support the 13th and 12th generation Intel processors, this motherboard boasts compatibility with the LGA 1700 slot, catering to a range of CPUs including Core TM, Pentium, and Cylon processors. With an Intel B7602 chipset at its core, this motherboard provides a solid foundation for high-performance computing. Memory capabilities are a highlight of the B760M-T PRO V20, offering two DDR4 memory sockets that can accommodate up to 64 GB of RAM. The memory support spans a wide range of frequencies, from DDR4-2133MHz to overclocked speeds of DDR4-4800MHz, ensuring users can fine-tune their system for optimal performance. Intel® Extreme Memory Profile (XMP) technology is also supported, enhancing memory customization. In terms of form factor, the B760M-T PRO V20 adopts the M-ATX form factor, compact yet powerful with dimensions of 240mm x 207mm. The motherboard features a 5.1 Channel sound card for immersive audio experiences, complementing the visual prowess of the system. Expansion slots include 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot, catering to graphics cards and additional peripherals. The motherboard also provides robust power management options, supporting S3, S4, network S5 wake-up, regular power on, and power-off functionalities. Connectivity is a strong suit of the B760M-T PRO V20, equipped with a RTL8125 2.5G network card for high-speed networking. Storage options are versatile, featuring 2 M.2 slots and 4 SATA 6Gb/s interfaces, with support for RAID 0, RAID 1, RAID 5, and RAID 10 configurations. The rear I/O interface includes a variety of ports, from USB 2.0 and USB 3.2 Gen 1 to DP 1.2 and HDMI 2.0 for 4K 60Hz resolution output. The internal I/O ports offer extensive connectivity for fans, cooling, USB, RGB, audio, and more.
COLORFUL BATTLE-AX B760M-T PRO V20 Motherboard Features
- CPU Compatibility: Supports the 13th and 12th generation Intel processors, accommodating Core TM, Pentium, and Cylon processors, and designed to fit the LGA 1700 slot.
- Chipset: Equipped with the Intel B7602 chipset, providing a stable foundation for high-performance computing.
- Memory Support: Features two DDR4 memory sockets supporting up to 64 GB of RAM. The motherboard supports a wide range of memory frequencies, ranging from DDR4-2133MHz to overclocked speeds of DDR4-4800MHz. It also supports Intel® Extreme Memory Profile (XMP) technology and dual-channel memory.
- BIOS: Boasts a 128M UEFI BIOS that supports multiple languages, enhancing user accessibility and customization options.
- Form Factor: Adopts the M-ATX form factor, striking a balance between compactness and performance, with dimensions of 240mm x 207mm.
- Audio Capabilities: Features a 5.1 Channel sound card, providing immersive audio experiences for gaming and multimedia.
- Power Management: Supports various power management modes, including S3, S4, network S5 wake-up, regular power on, and power off, ensuring efficient energy utilization.
- Expansion Slots: Offers 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot for graphics cards and additional peripherals, providing flexibility for system expansion.
- Memory Slots: Provides 2 DDR4 memory slots, supporting a maximum memory capacity of up to 64 GB.
- Connectivity: Equipped with an RTL8125 2.5G network card for high-speed LAN connectivity, ensuring seamless online gaming and data transfer. Features 2 M.2 slots and 4 SATA 6Gb/s interfaces for versatile storage options, supporting RAID 0, RAID 1, RAID 5, and RAID 10 configurations.

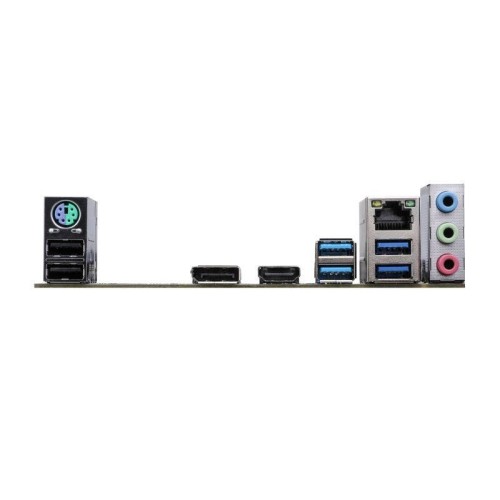

- I/O Ports: The rear I/O interface includes a variety of ports such as USB 2.0, USB 3.2 Gen 1, DP 1.2, HDMI 2.0, and a 2.5G network interface. The internal I/O ports offer extensive connectivity for fans, cooling, USB, RGB, audio, and more.
