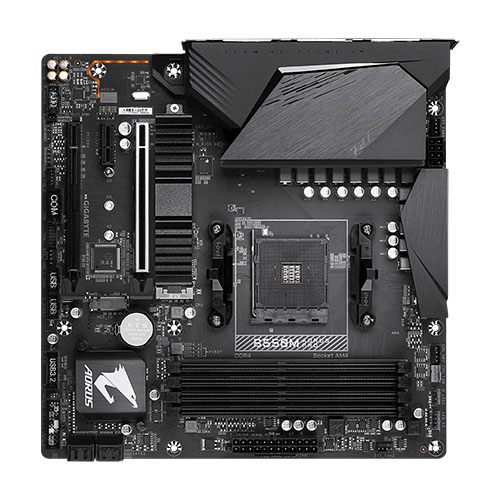

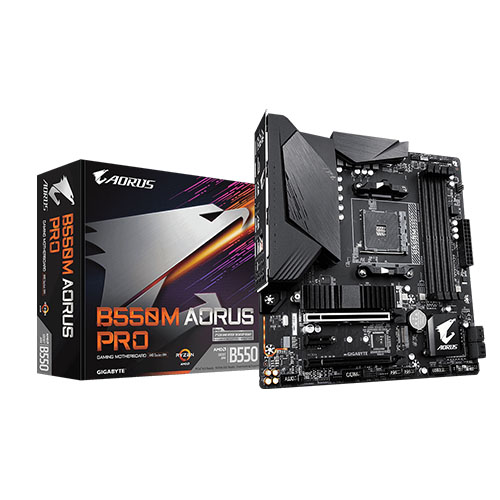

GIGABYTE B550M AORUS PRO AMD MOTHERBOARD
  • GIGABYTE B550M AORUS PRO AMD MOTHERBOARD
  • GIGABYTE B550M AORUS PRO AMD MOTHERBOARD

GIGABYTE B550M AORUS PRO AMD MOTHERBOARD

Price: Out Of Stock
Status: Out Of Stock
Product Code: 1358
Brand: Gigabyte
Key Features
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Digital 10+3 VRM Solution
  • Advanced Thermal Design
  • AMP-UP Audio with ALC1200
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

BASIC INFORMATION
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Basic Information
Chipset AMD B550
Audio Realtek® ALC1200 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out
CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd
Generation AMD Ryzen™ with Radeon™ Graphics processors
Memory
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of
system memory

3rd Gen AMD Ryzen™ Processors:

Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
/3200/2933/2667/2400/2133 MHz memory modules

New Generation AMD Ryzen™ with Radeon™ Graphics processors:

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) /
3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules
Storage 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key,
type 2242/2260/2280/22110 SSDs:

3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA
and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M
key, type 2242/2260/2280 SSDs:

Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10
Graphics
Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics
processors:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB
Connector & Ports
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

1 x Thunderbolt header

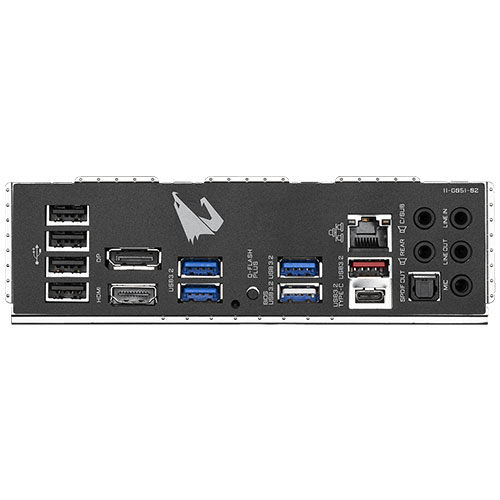

USB Port CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+1 USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel
WARRANTY INFORMATION
Manufacturing Warranty 03 years

Description :

GIGABYTE B550M AORUS PRO

Get ready for those intense gaming marathons with GIGABYTE B550M AORUS Pro MOTHERBOARD. Designed for Supports 3rd Gen AMD Ryzen™ Processors, this motherboard features the AMD B550 chipset to power gaming, content creation, entertainment, and other intense computing tasks. The Gigabyte AMD B550 AORUS Motherboard with Digital VRM Solution, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Gigabyte Gaming GbE LAN, RGB FUSION 2.0, Q-Flash PlusAMD B550 AORUS Motherboard with Digital VRM Solution, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Gigabyte Gaming GbE LAN, RGB FUSION 2.0, Q-Flash Plus

  • Supports 3rd Gen AMD Ryzen™ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Digital 10+3 VRM Solution
  • Advanced Thermal Design with Enlarged VRM Heatsinks
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • AMP-UP Audio with ALC1200 and premium capacitor
  • GIGABYTE Exclusive 8118 Gaming GbE LAN
  • Onboard DisplayPort & HDMI
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation

Performance:

GIGABYTE AORUS series motherboards use a 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
