| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z790 Chipset | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Total supports 3 x M.2 slots Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
|
| Memory | ||
| Maximum Memory | 192GB | |
| Slots | 4 x DIMM slots | |
| Supported Memory | 8000+ OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module OptiMem II |
|
| Type | DDR5 | |
| Graphics | ||
| Graphics | 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth. USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin Front Panel System header 1 x Thunderbolt (USB4) Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Wireless Communication module | Wi-Fi 6 (802.11 ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation ASUS DriverHub AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Warranty | 3 Year | |

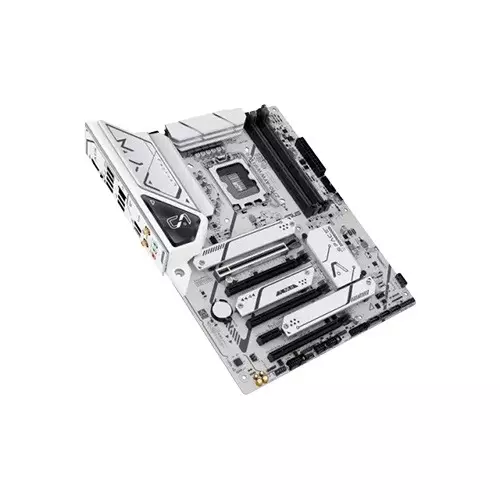

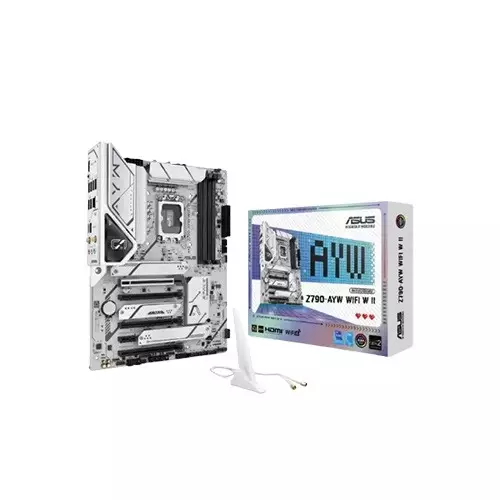

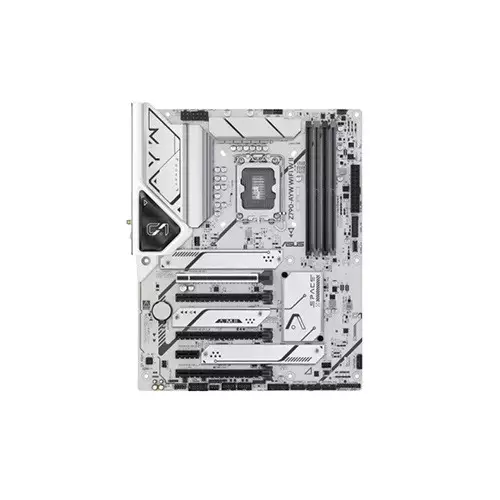

The ASUS Z790-AYW WIFI W II is a high-performance, aesthetically striking ATX motherboard featuring a clean, white-themed design. Tailored for the LGA1700 socket, it provides a solid foundation for Intel 14th, 13th, and 12th Gen Core processors. Built on the flagship Intel Z790 chipset, this motherboard seamlessly blends robust power delivery, advanced thermal management, and modern connectivity for creators, gamers, and PC enthusiasts building clean, modern setups.
Robust Power Delivery: Built with a continuous 12+1+1 power stage system rated at 60A per stage. Combined with DrMOS, high-quality alloy chokes, and durable capacitors, it ensures clean, highly stable voltage tracking to the CPU during intensive rendering or multitasking.
Next-Gen DDR5 Overclocking: Across 4 DIMM slots, it handles up to 192GB of dual-channel DDR5 RAM. Utilizing ASUS OptiMem II and AEMP II, memory signal routing is drastically enhanced, allowing enthusiast memory kits to reach blistering speeds of 8000+ MT/s (OC).
PCIe 5.0 GPU Readiness: Features a primary reinforced PCIe 5.0 x16 SafeSlot, doubling data transfer bandwidth over older generations to protect and maximize the performance of massive modern graphics cards.
Triple NVMe Storage: Equipped with three onboard M.2 slots supporting high-speed PCIe 4.0 x4 modes. Every storage slot is covered by a dedicated silver aluminum heatsink to prevent thermal throttling during continuous data transfers.

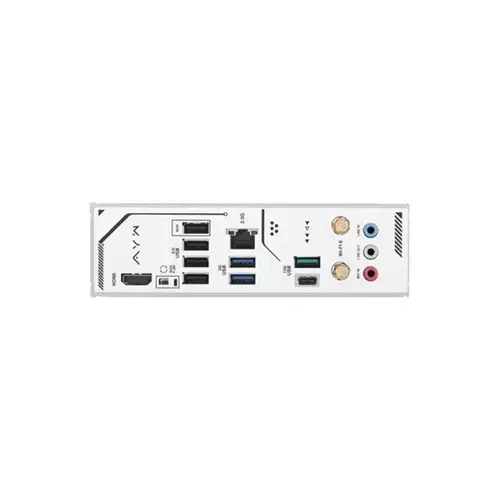

The board features a comprehensive cooling network including massive VRM heatsinks and hybrid fan headers managed by AI Cooling II. For high-speed networking, it packs low-latency Realtek 2.5Gb Ethernet and built-in Wi-Fi 6 with an external moving antenna. The rear I/O is highly practical, containing a high-speed USB 10Gbps Type-C port, a BIOS FlashBack button for risk-free system upgrades, Aura Sync ARGB headers, and Realtek 7.1 Surround Sound audio for crisp, clear media immersion.
