| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Basic Information | ||
| Chipset | AMD X670 | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel 3 x audio jacks |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 DIMMs | |
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |

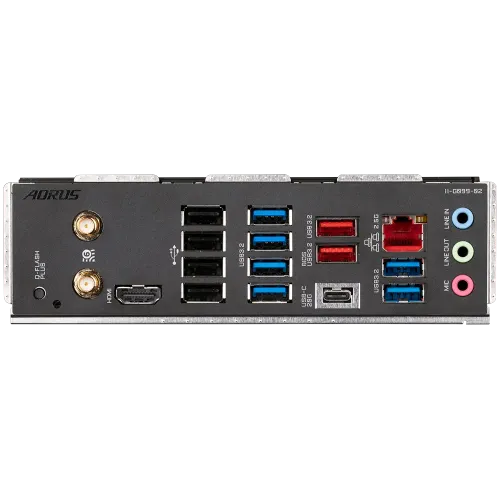

| USB (s) | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 4 x SATA 6Gb/s connectors |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x THB_U4 add-in card connector 1 x power button 1 x reset button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |
At PC House, we're dedicated to giving our clients the greatest products at competitive costs. Because of this, we're pleased to provide the affordable GIGABYTE X670 AORUS ELITE AX Motherboard. Furthermore, you can feel secure knowing that your investment is safeguarded thanks to the three-year warranty.
Absolutely, in general, the Gigabyte X670 AORUS ELITE AX outperforms the Gigabyte B760 AORUS ELITE AX. The X670 provides more sophisticated connectivity options, such as more M.2 slots and greater RAID capabilities, and supports AMD Ryzen 7000 series CPUs in addition to PCIe 5.0 support. In addition, it supports up to 128 GB of DDR5 memory, which makes it a superior option for future-proof and high-performance designs.
High-End Gaming: Its support for AMD Ryzen 7000 series CPUs, PCIe 5.0, and high-speed DDR5 memory make it ideal for gaming at high resolutions with advanced graphics.
Content Creation: The motherboard’s robust memory capacity and multiple high-speed M.2 slots cater to demanding tasks like video editing, 3D rendering, and other professional applications.
Overclocking: With its advanced features and robust power delivery, it is well-suited for overclocking enthusiasts looking to maximize CPU and memory performance.
Future-Proofing: The X670 chipset offers support for the latest technologies and expansions, ensuring longevity and compatibility with future upgrades.
The AMD Ryzen 7000 series CPUs, PCIe 5.0, and DDR5 RAM are supported by the GIGABYTE X670 AORUS ELITE AX, which offers incredible performance. Its fast USB connections and several M.2 slots contribute to its strong connectivity. It has cutting-edge features and is future-proof, making it perfect for gaming, creating content, and overclocking. With its extensive BIOS options and reliable cooling solutions, it's a great alternative for high-performance setups.
