| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B760 Chipset | |
| BIOS | 128Mb Flash ROM | |
| Form Factor | mATX | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
|
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots |
|
| Memory | ||
| Maximum Memory | Max. 192GB | |
| Slots | 4 x DIMM | |
| Supported Memory | DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II |
|
| Type | DDR5 | |
| Graphics | ||
| Graphics | 2 x DisplayPort** 1 x VGA port 1 x HDMI port*** ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Display Port (s) | 2 x DisplayPort 1 x VGA port |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
|
| Others | ||
| Special Features | ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection |
|
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE) |
|
| Warranty Information | ||
| Warranty | 3 Year | |

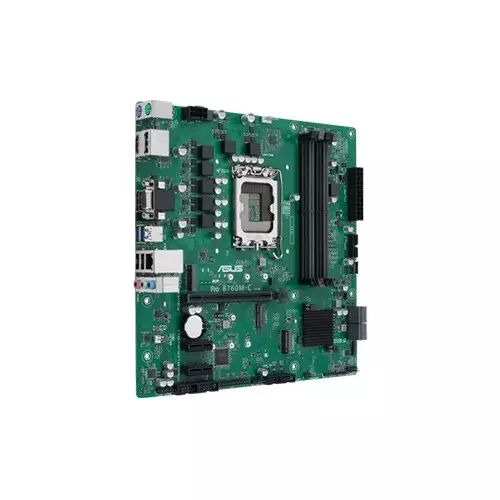

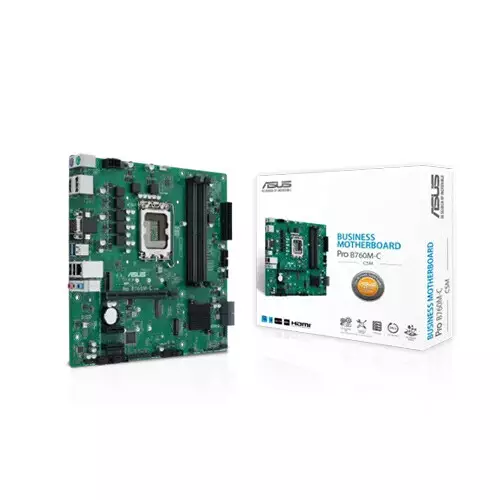

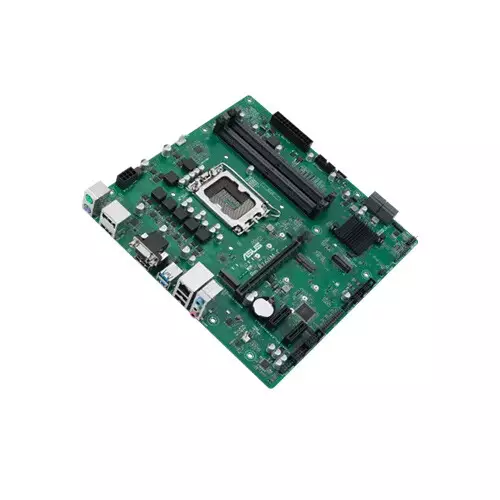

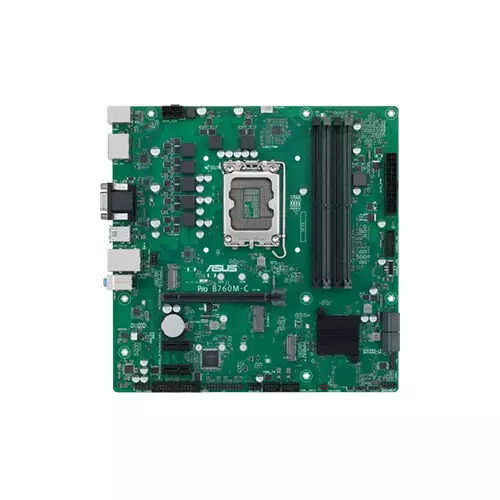

The ASUS PRO B760M-C-CSM is a highly reliable, commercial-grade micro-ATX motherboard engineered specifically for enterprise environments, professional offices, and IT-managed networks. Operating on the Intel B760 chipset with the LGA1700 socket, it offers robust support for 12th, 13th, and 14th Generation Intel Core processors, blending modern performance with elite hardware security.
Corporate Stable Model (CSM): This board comes with the ASUS Control Center Express, a centralized IT management software that streamlines endpoint monitoring, data security, and remote inventory tracking. It also provides businesses with long-term supply cycles and controlled transitions.
Hardware-Level Safeguards: Equipped with an onboard TPM (Trusted Platform Module) header for robust cryptographic data protection and secure boot encryption. It also features a custom Q-LED diagnostic array and an organized debug header for rapid IT troubleshooting.
Resilient Infrastructure: The motherboard features a special moisture-resistant coating to protect internal traces from humid environments, alongside ASUS Shield technology which includes overvoltage protection and an anti-sulfur resistor layout for long-term endurance.
Dual DDR5 Memory: Designed for modern productivity, it features high-bandwidth DDR5 memory support across four DIMM slots, boosting data throughput for complex database manipulation, multitasking, and rendering workflows.
Flexible Storage and I/O: Hosts dual high-speed PCIe 4.0 M.2 slots for rapid NVMe storage access. The expansion layout includes a primary PCIe 4.0 x16 slot for discrete GPUs, legacy PCI slots for industrial hardware compatibility, and dual DisplayPort and HDMI ports for versatile multi-monitor configurations.
