| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B760 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | Total supports 2 x M.2 slots | |
| Memory | ||
| Maximum Memory | Max. 96GB | |
| Slots | 2 x DIMM | |
| Supported Memory | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module |
|
| Type | DDR5 | |
| Graphics | ||
| Graphics | ** Supports 4K@30Hz as specified in HDMI 1.4. | |
| Connector & Ports | ||
| HDMI | 1x HDMI port | |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Audio | 3 x Audio jacks | |

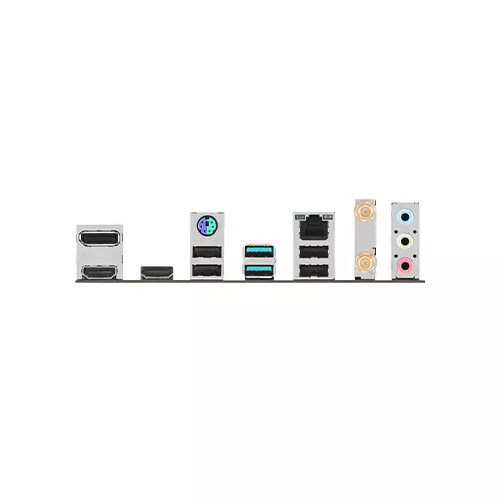

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
|
| Display Port (s) | 1x DisplayPort | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Wireless Communication module | Wi-Fi 6 | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Warranty | 3 Year | |

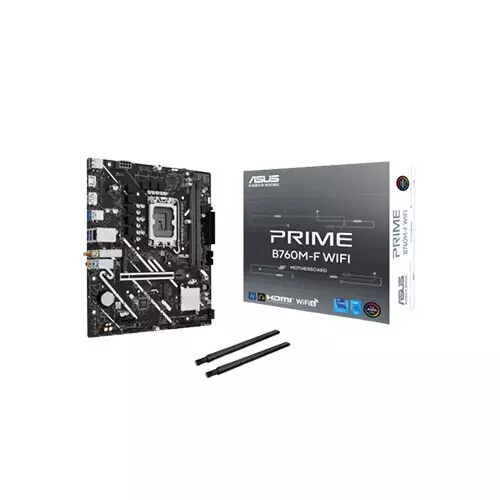

The ASUS PRIME B760M-F WIFI is a feature-packed Micro-ATX motherboard engineered to unleash the full performance of 14th, 13th, and 12th Gen Intel Core processors on the LGA1700 socket. Built around the Intel B760 chipset, this motherboard seamlessly bridges the gap between next-generation speeds and mainstream value, making it an excellent platform for modern gaming rigs, productive home offices, and advanced AI PC setups.
Designed to accommodate the latest hardware standards, the PRIME B760M-F WIFI features dual DIMM slots that support up to 96GB of blazing-fast DDR5 memory, hitting overclocked speeds of up to 8000MHz (OC) through Intel XMP profiles. For graphics card deployment, it breaks boundaries with a future-proof PCIe 5.0 x16 slot, offering twice the bandwidth of previous generations for high-end GPUs. Storage is similarly rapid, offering dual PCIe 4.0 x4 M.2 slots for high-speed NVMe SSD boot drives alongside four traditional SATA 6Gb/s ports.
A standout feature of this model is its comprehensive networking toolkit. It boasts built-in Wi-Fi 6 (802.11ax) and Bluetooth 5.3, delivering reliable, high-bandwidth wireless connectivity even in crowded network environments. For wired setups, a Realtek 1Gb Ethernet port backed by ASUS LANGuard ensures a secure, hardware-fortified connection against voltage surges and static electricity.
System longevity is maintained via an aluminum PCH heatsink, hybrid fan headers, and Fan Xpert 2+ intelligent thermal management. The board features Two-Way AI Noise Cancelation for crystal-clear voice communication during online multiplayer or video meetings. Finally, builders can easily personalize their rigs using the dual onboard Addressable Gen 2 RGB headers, fully customizable via ASUS Aura Sync software.
