| Basic Information | ||
| Supported CPU | ntel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H610 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Mini ITX | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot |
|
| M.2 Socket | 1 x M.2 slots | |
| Memory | ||
| Maximum Memory | Max. 96GB | |
| Slots | 2x DIMM | |
| Supported Memory | 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
|
| Type | DDR5 | |
| Graphics | ||
| Graphics | Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 1Gb Ethernet port | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 3x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|
| Display Port (s) | 1 x DisplayPort 1 x VGA port |
|
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
|
| Warranty Information | ||
| Warranty | 3 Year | |

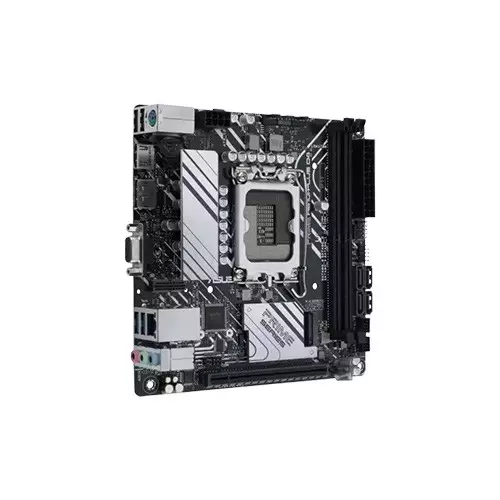

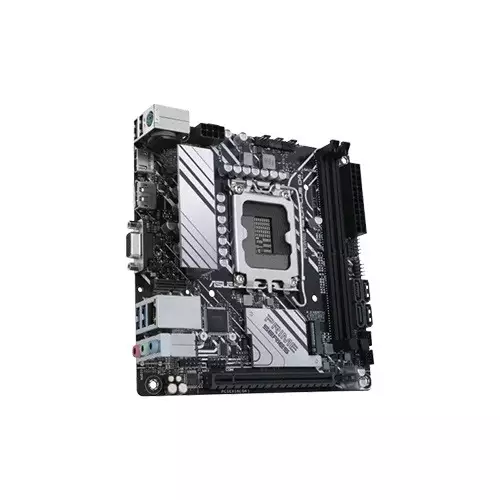

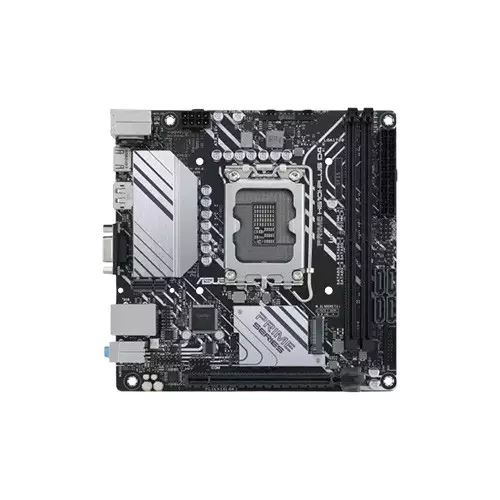

The ASUS PRIME H610I-PLUS DDR5 is a compact, highly efficient Mini-ITX motherboard engineered to anchor small-form-factor (SFF) PCs without sacrificing next-generation memory standards. Designed for the LGA1700 socket, it provides reliable compatibility with 14th, 13th, and 12th Gen Intel Core processors, making it an excellent, budget-friendly foundation for sleek home theater systems, space-saving office stations, and compact gaming builds.
DDR5 Performance: Despite its diminutive size, this motherboard embraces cutting-edge memory technology. It features two DIMM slots supporting up to 96GB of dual-channel DDR5 RAM, offering a significant boost in bandwidth and energy efficiency compared to older DDR4 platforms.
Stable Power Delivery: Built with a 5+1+1 power stage design and an 8-pin ProCool power connector, it ensures clean, stable voltage routing to the CPU, guaranteeing rock-solid stability during daily multitasking and continuous operation.
High-Speed Storage: The board features a dedicated M.2 slot supporting PCIe 3.0 x4 speeds, alongside four SATA 6Gb/s ports, ensuring plenty of versatility for high-speed NVMe boot drives and traditional high-capacity storage.
PCIe Expansion: A single, reinforced PCIe 4.0 x16 slot is ready to accommodate modern discrete graphics cards or high-speed expansion hardware.
Comprehensive Thermals: ASUS Fan Xpert software works alongside onboard thermal sensors and a dedicated VRM heatsink with thermal pads to keep critical components running cool inside cramped PC chassis.

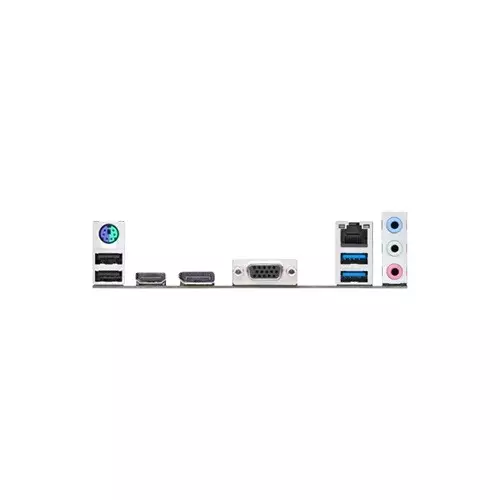

The rear I/O panel is highly practical, offering dual DisplayPort and HDMI outputs for multi-monitor setups utilizing Intel integrated graphics. It includes a Realtek 1Gb Ethernet port, multiple USB 3.2 Gen 1 ports, and legacy support via a PS/2 port and a COM header. Backed by ASUS 5X Protection III hardware safeguards, the PRIME H610I-PLUS DDR5 provides long-term durability and exceptional value for compact computing.
