| BASIC INFORMATION | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - DRAM Voltage multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm, - Solid Capacitor design |
|
| Basic Information | ||
| Chipset | AMD Promontory B450 | |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - ELNA Audio Caps, - PCB Isolate Shielding, - Individual PCB Layers for R/L Audio Channel, - Supports Creative Sound Blaster™ Cinema 5 |
|
| CPU | AMD AM4 Socket - Digi Power design, - 9 Power Phase design, - Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge), |
|
| Memory | ||
| Memory | Type: Dual Channel DDR4 Memory Technology, Slots: 4 x DDR4 DIMM Slots, Supported Memory: AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*, - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*, - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory, Maximum Memory: 64 GB |
|
| Graphics | ||
| Graphics | Supports Triple Monitor, - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz, - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required), - Supports HDCP 1.4 with HDMI and DisplayPort 1.2 Ports, - Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports |
|
| Connector & Ports | ||
| HDMI | HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz | |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s, - Realtek RTL8111H, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE |
|

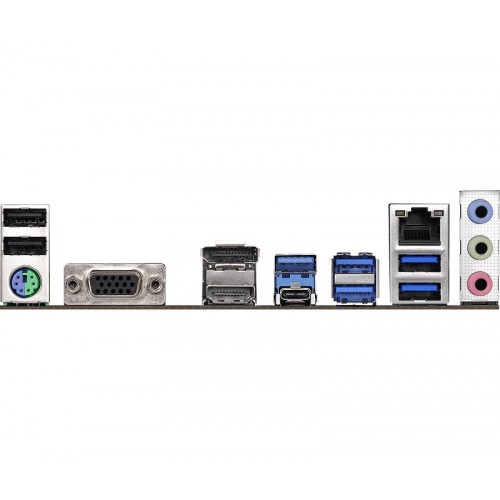

| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port, - 1 x D-Sub Port, - 1 x HDMI Port, - 1 x DisplayPort 1.2, - 2 x USB 2.0 Ports (Supports ESD Protection)*, - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection), - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| USB Port | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
CREATIVE SOUND BLASTER™ CINEMA5
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
