Product Price | 11,300৳ |
Special Price | 11,100৳ |
Stock Status | In Stock |
Product code | 5552 |
Brand | Gigabyte |
Product model | H610M S2H |
Warranty | 03 years |
Total Reviews | Based on 1 reviews. - Write a review |
EMI Price
Price Click here to view 25 banks EMI Plans
BASIC INFORMATION | |
Supported CPU | LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors L3 cache varies with CPU |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
Basic Information | |
Chipset | Intel H610 Express Chipset |
Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
Motherboard | |
External I/O Ports | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI 2.0 port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Memory | |
Slots | 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard |
Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Graphics | |
Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. |
Connector & Ports | |
LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
USB Port | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
WARRANTY INFORMATION | |
Warranty | 03 Years |

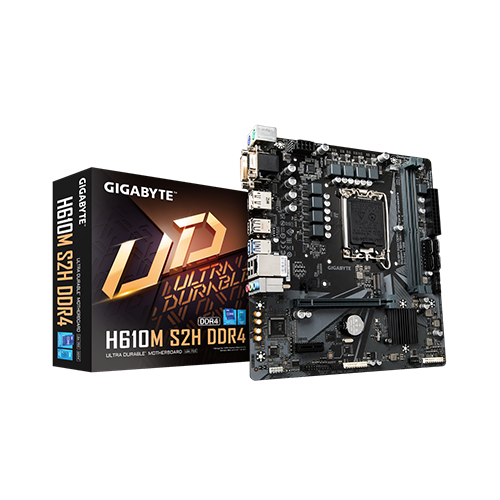

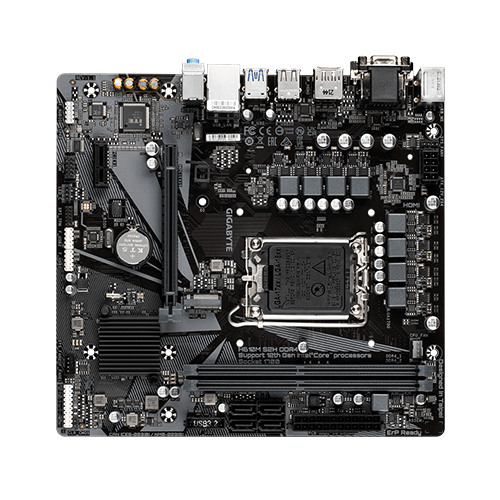

Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard
The Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard is a cutting-edge and feature-rich motherboard designed to support Intel's 12th Generation Core processors, providing users with a powerful platform to build high-performance systems for various computing needs. With its Micro ATX form factor, it offers a balance of compactness and expandability, making it suitable for a wide range of applications, from gaming rigs to productivity workstations.At the heart of the motherboard is the Intel H610 Express Chipset, which ensures stable and efficient performance for the supported processors. The motherboard is compatible with 12th Generation Intel Core i9, Core i7, and Core i5 processors, offering users an array of choices to meet their specific performance requirements.The audio section features a Realtek® Audio CODEC, delivering high-definition audio with support for 2/4/5.1/7.1-channel setups, ensuring an immersive audio experience for gaming, multimedia, and content creation.For connectivity, the motherboard offers a diverse range of ports, including a D-Sub port, DVI-D port, HDMI 2.0 port, and two DisplayPort outputs. The HDMI and DisplayPort connections support resolutions of up to 4096x2160@60Hz, providing users with the ability to connect high-resolution displays and enjoy stunning visuals.The internal I/O ports include essential connectors like the 24-pin ATX main power connector, 8-pin ATX 12V power connector, M.2 Socket 3 connector for high-speed storage devices, four SATA 6Gb/s connectors for traditional storage drives, RGB LED strip header for customizable lighting effects, front panel headers, and USB headers for additional expansion.The memory configuration is impressive, featuring four DDR4 DIMM sockets supporting up to 128GB of system memory. It supports memory modules with speeds ranging from 2133MHz to 3200MHz, ensuring smooth multitasking and optimal performance for memory-intensive tasks.The motherboard also comes with one PCI Express x16 slot running at x16, conforming to the PCI Express 4.0 standard, allowing users to install a dedicated graphics card for enhanced gaming and graphics performance. Additionally, there's one PCI Express x1 slot conforming to the PCI Express 3.0 standard for further expansion options.In terms of USB connectivity, the motherboard offers four USB 3.2 Gen 1 ports (two on the back panel, two through internal header) for high-speed data transfer, as well as four USB 2.0/1.1 ports on the back panel and additional USB 2.0/1.1 ports available through internal headers for various peripherals.The motherboard is equipped with a Realtek® GbE LAN chip, delivering reliable and high-speed Ethernet connectivity for seamless online experiences, whether for gaming, streaming, or work-related tasks.To ensure long-term reliability and peace of mind, the Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard comes with a 3-year warranty, providing users with confidence in the durability and quality of the product.
Gigabyte H610 Motherboard Price in BD
The Gigabyte H610 motherboard is a dependable choice for those building a cost-effective PC in Bangladesh. Designed to support Intel’s 12th Gen processors, it offers robust features including DDR4 memory compatibility, PCIe 4.0 for faster data transfer, and ample connectivity options with multiple USB ports. The board is well-regarded for its stability and ease of use, making it suitable for both everyday tasks and light gaming. Ideal for budget-conscious users, the Gigabyte H610 motherboard ensures reliable performance and future-proofing in a competitive market. For precise pricing, consulting local electronics stores or online platforms is advised.
Gigabyte H610M S2H price in BD
The Gigabyte H610M S2H is a budget-friendly motherboard designed for Intel's 12th and 13th Gen processors, making it a popular choice among users building cost-effective systems. In Bangladesh, the price for the Gigabyte H610M S2H typically range depending on the retailer and any ongoing promotions. This motherboard offers essential features like PCIe 4.0 support, DDR4 memory compatibility, and multiple connectivity options, making it a solid option for budget-conscious builders seeking reliable performance.
H610M Motherboard Price in bd
Features:
Intel H610 Express Chipset: The motherboard is built around the Intel H610 Express Chipset, which provides a stable and efficient foundation for supporting 12th Generation Intel Core processors, including Core i9, Core i7, and Core i5 CPUs.
Audio and High Definition Audio Support: The motherboard features a Realtek® Audio CODEC, delivering high-definition audio with support for 2/4/5.1/7.1-channel audio setups. This ensures crystal-clear sound reproduction and an immersive audio experience, whether for gaming, movies, or music.

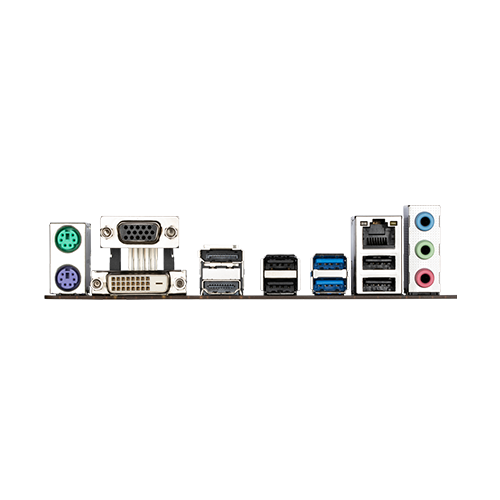

External I/O Ports: The back panel of the motherboard offers a range of external I/O ports, including a PS/2 keyboard port and a PS/2 mouse port for legacy peripherals. Additionally, it features a D-Sub port, DVI-D port, HDMI 2.0 port, DisplayPort, USB 3.2 Gen 1 ports, USB 2.0/1.1 ports, an RJ-45 port for Ethernet connectivity, and three audio jacks for audio output.
Graphics Support: The motherboard is equipped with multiple display outputs, including a D-Sub port, HDMI port, and two DisplayPort outputs. These ports support various resolutions, allowing users to connect high-resolution displays and enjoy smooth visuals for both work and entertainment purposes.
Internal I/O Ports: The internal I/O ports include essential connectors to support various components and peripherals. It features a 24-pin ATX main power connector, an 8-pin ATX 12V power connector for CPU power supply, an M.2 Socket 3 connector for high-speed storage devices, four SATA 6Gb/s connectors for traditional storage drives, CPU fan header, system fan headers, USB headers, a Trusted Platform Module (TPM) header, serial port header, and Clear CMOS jumper for system maintenance and customization.
Memory Support: The motherboard supports up to four DDR4 DIMM sockets, allowing a maximum system memory capacity of 128GB (32GB per DIMM capacity). It supports various memory speeds ranging from 2133MHz to 3200MHz, enabling users to optimize memory performance based on their needs.
PCI Express Slots: The motherboard offers a PCI Express x16 slot running at x16, conforming to the PCI Express 4.0 standard. It also features a PCI Express x1 slot, conforming to the PCI Express 3.0 standard, for additional expansion options like adding a dedicated sound card or network card.
USB Connectivity: The motherboard provides four USB 3.2 Gen 1 ports (two on the back panel and two via internal header) for high-speed data transfer, along with four USB 2.0/1.1 ports on the back panel and additional USB 2.0/1.1 ports available through internal headers for connecting various peripherals.
Ethernet Connectivity: The motherboard is equipped with a Realtek® GbE LAN chip, providing a reliable and high-speed Gigabit Ethernet connection for seamless online experiences, whether for gaming, streaming, or other network-related tasks.
Form Factor: The Gigabyte H610M S2H motherboard comes in a Micro ATX form factor, measuring 23.0cm x 21.5cm. This form factor strikes a balance between compactness and expandability, making it suitable for various PC cases and setups.
Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard Price in BD 2024
Gigabyte H610M S2H price in Bangladesh is ৳ 9,790. Gigabyte H610M S2H DDR4 12th gen micro ATX motherboard is supported for Intel 12th generation, Pentium Gold, and Celeron processors. It is L3 cache varies with the CPU. It includes Intel H610 Express chipset for great performance.
Gigabyte H610M S2H Motherboard Review
Quick Compare
Product Details | ||||
Product | Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard | ASUS PRIME H610M-D D4 12th Gen Intel Motherboard | MSI PRO H610M-G DDR5 mATX Motherboard | Asus TUF B450-PLUS GAMING AMD ATX Motherboard (China Version) |
Image | ||||
Price | | | | |
Model | H610M S2H | PRIME H610M-D D4 | PRO H610M-G | B450-PLUS GAMING |
Brand | Gigabyte | ASUS | MSI | ASUS |
Availability | In Stock | In Stock | In Stock | In Stock |
Rating | Based on 1 reviews. | Based on 2 reviews. | Based on 0 reviews. | Based on 1 reviews. |
Product List
Best Gigabyte (intel) Motherboard Price List 2024 | Price |
GIGABYTE GA-H61M-DS2 ULTRA DURABLE 4 CLASSIC MOTHERBOARD | 7,600৳ 10,150৳ |
Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard | 14,000৳ 15,790৳ |
Gigabyte GA-H110M-H Micro ATX Motherboard | 9,300৳ 10,000৳ |
Gigabyte GA-H81M-DS2 Micro ATX Motherboard | 7,800৳ 7,900৳ |
Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard | 9,500৳ 10,300৳ |
Gigabyte GA-H81M-S2PH Micro ATX Motherboard | 7,800৳ 8,140৳ |
GIGABYTE GA-J1800M-D3P BUILT IN 2.41GHZ DDR3 CELERON PROCESSOR WITH MAINBOARD (COMBO) | 5,999৳ 7,000৳ |
GIGABYTE H310M S2H ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD | 7,000৳ 7,500৳ |
GIGABYTE H410M S2H 10TH GEN MOTHERBOARD | 8,600৳ 10,500৳ |
Gigabyte H410M H V2 10th & 11th Gen Micro ATX Motherboard | 8,900৳ 8,900৳ |
What is the Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard price in bd 2024?
The Gigabyte H610M S2H Motherboard price in BD is 11,100৳. In today's market on 08-11-2024. PC House offers you the lowest price of Gigabyte H610M S2H Motherboard: 11,100৳ instead of 11,300৳ regular price. The Gigabyte H610M S2H Motherboard is In Stock now in our store (Call us to know about details of this product). And reviewed by 1 users. 53 customer buy this product From 10600 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Gigabyte H610M S2H online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
