| BASIC INFORMATION | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
|
| Form Factor | - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm, - Solid Capacitor design |
|
| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection |
|
| CPU | Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors, 6 Power Phase design |
|
| Memory | ||
| Memory | Type: DDR4, Slots: AMD Ryzen series CPUs (Matisse), - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode) AMD Ryzen series APUs, - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), - 1 x PCI Express 3.0 x1 Slot, Supported Memory: - Dual Channel DDR4 Memory Technology, - 2 x DDR4 DIMM Slots, - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, Maximum Memory: Max. capacity of system memory: 64GB |
|
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
|
| Graphics | ||
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Three graphics output options: D-Sub, DVI-D and HDMI, - Supports Triple Monitor, - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz, - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required), - Supports HDR (High Dynamic Range) with HDMI 2.1, - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports, - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port, - Supports Microsoft PlayReady |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| LAN | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port, - 1 x D-Sub Port, - 1 x DVI-D Port, - 1 x HDMI Port, - 2 x USB 2.0 Ports (Supports ESD Protection), - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), - HD Audio Jacks: Line in / Front Speaker / Microphone, - 1 x COM Port Header, - 1 x Chassis Intrusion and Speaker Header, - 1 x CPU Fan Connector (4-pin)*, - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**, - 1 x 24 pin ATX Power Connector, - 1 x 4 pin 12V Power Connector, - 1 x Front Panel Audio Connector, - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| USB Port | 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

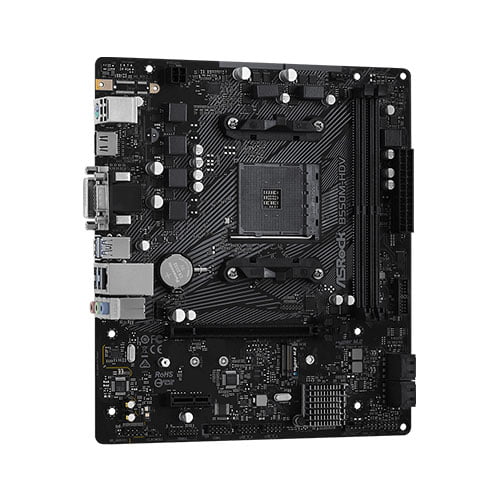

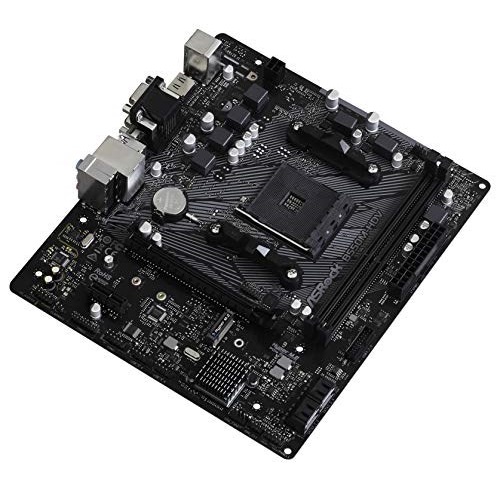

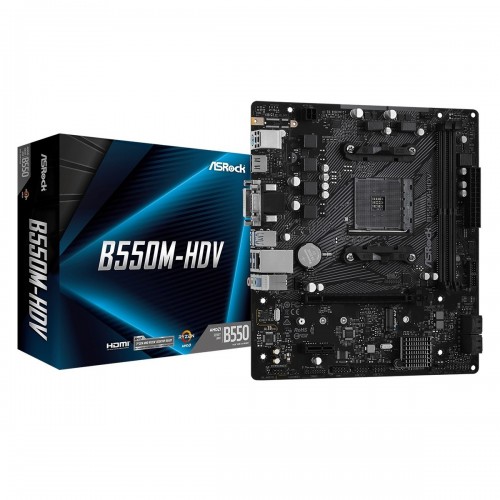

ASRock B550M-HDV Motherboard Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors. Features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. ASRock B550M-HDV supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. ASRock B550M-HDV also offersthe most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. In comparison to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards. High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause the system to malfunction immediately.
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
