Supports 3rd Gen AMD AM4 Ryzen/ Future AMD Ryzen Processors
Supports DDR4 4733+ (OC)
8 Power Phase Design, Digi Power
6 SATA3, 1 Hyper M.2, 1 M.2
| Motherboard | |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - PCB Isolate Shielding, - Individual PCB Layers for R/L Audio Channel, - Nahimic Audio |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment, |
| Chipset | AMD B550 |
| CPU | - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*, - Digi Power design, - 8 Power Phase design |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, - Solid Capacitor design, - 2oz Copper PCB |
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required), - Supports HDR (High Dynamic Range) with HDMI 2.1, - Supports HDCP 2.3 with HDMI 2.1 Port, - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port, - Supports Microsoft PlayReady |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | -2 x Antenna Ports, - 1 x PS/2 Mouse/Keyboard Port, - 1 x HDMI Port, - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection), - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), - HD Audio Jacks: Line in / Front Speaker / Microphone, - 1 x COM Port Header, - 1 x Power LED and Speaker Header, - 2 x RGB LED Headers*, - 2 x Addressable LED Headers**, - 1 x CPU Fan Connector (4-pin)***, - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****, - 1 x 24 pin ATX Power Connector, - 1 x 8 pin 12V Power Connector, - 1 x 4 pin 12V Power Connector, - 1 x Front Panel Audio Connector, - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| LAN | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Memory | Type: DDR4, Slots: AMD Ryzen series CPUs (Matisse), - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs, - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode), - Supports AMD Quad CrossFireX and CrossFireX Supported Memory, - Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, - Supports Extreme Memory Profile (XMP) memory modules, - 15μ Gold Contact in DIMM Slots, Maximum Memory: 128GB |
| USB Port | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection), - 2 x USB 2.0 Ports (Supports ESD Protection) |
| WARRANTY INFORMATION | |
| Manufacturing Warranty | 03 Years Warranty |
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

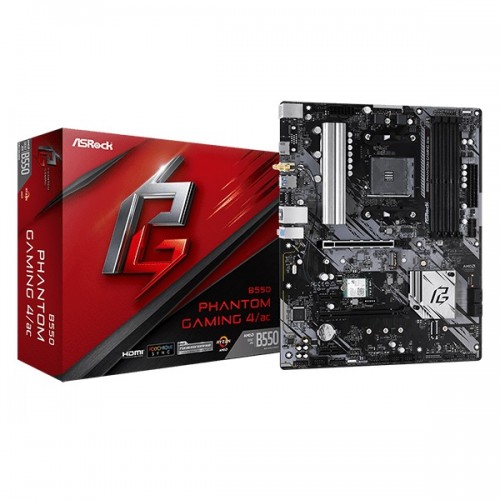

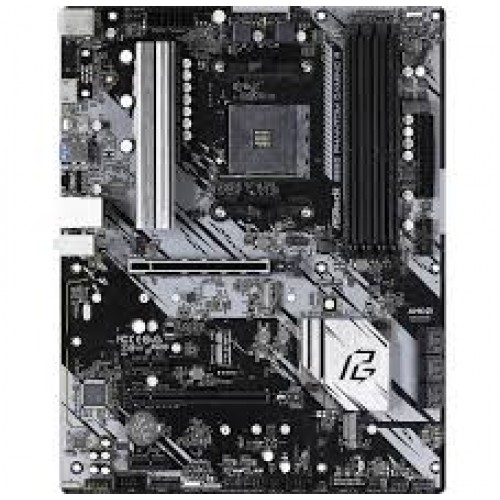

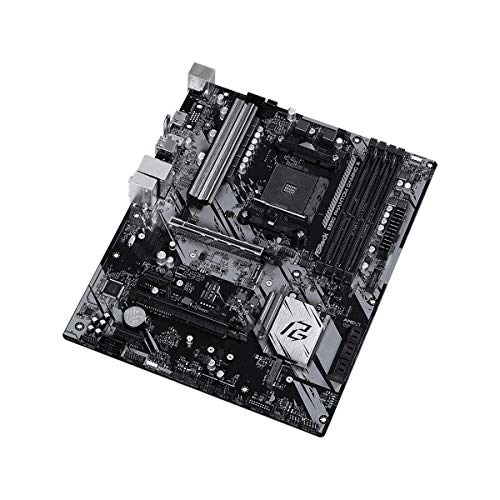

The ASRock B550 Phantom Gaming 4 AMD Motherboard is Up Coming now. You can buy the ASRock B550 Phantom Gaming 4 AMD Motherboard at the best price from our website or visit any of our showrooms When the product available.
