| BASIC INFORMATION | ||
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Basic Information | ||
| Chipset | Intel® Z390 Express Chipset | |
| Audio | Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE 9118 DAC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
|
| Memory | ||
| Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector. 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI) |
|
| Memory | 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory** ** Please note that the support for system total memory size depends on the CPU installed. Dual channel memory architecture Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un- buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non- ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| Connector & Ports | ||
| LAN | Intel® GbE LAN chip (10/100/1000 Mbit) | |

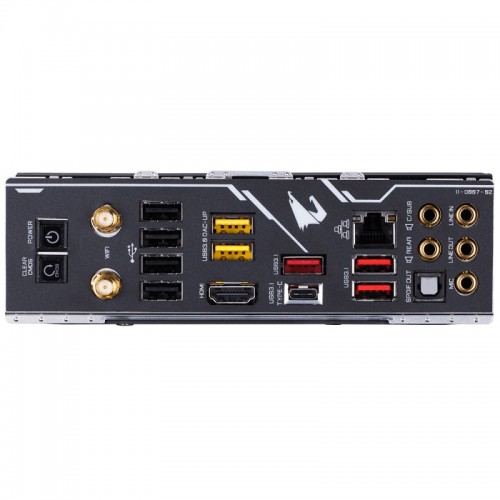

| Internal I/O Ports | 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 3 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years | |
Triple NVMe M.2 PCIe SSDs in RAID 0 Support
Extreme Performance with Gen3 x4 NVMe PCIe SSDs
Z390 AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Support for DDR4 to 4400MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility to 4400MHz and beyond.
