| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors |
|
| Form Factor | mATX 243.84mmx243.84mm |
|
| Basic Information | ||
| Chipset | AMD B650 |
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 DIMMs |
|
| Supported Memory | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* |
|
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| Display Port | 1x DisplayPort |
|
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
|
| Wireless | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|

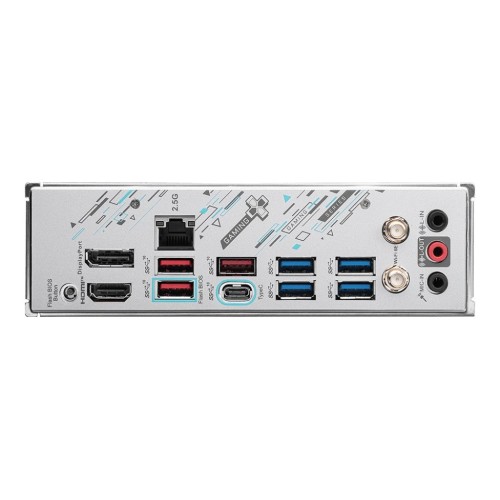

| USB Port | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Special Features | 4x EZ Debug LED |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years |
|

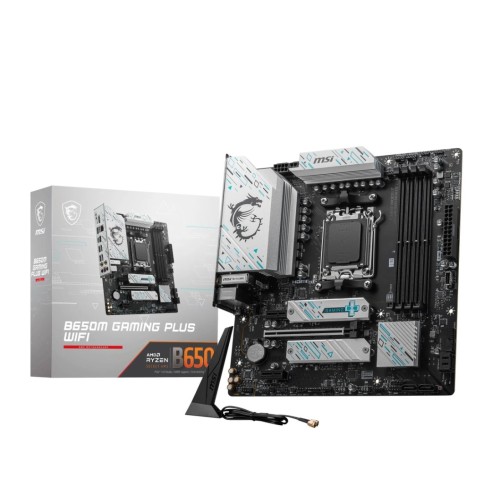

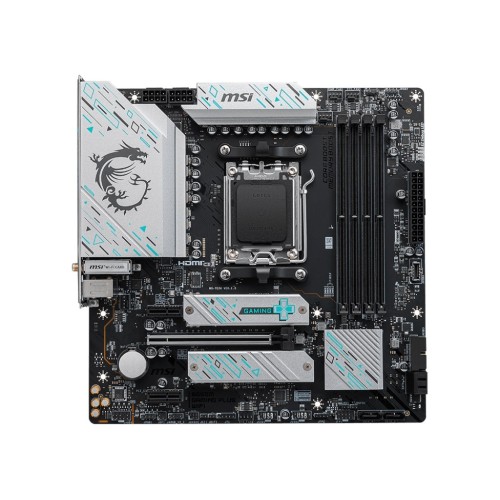

The MSI B650M GAMING Plus WIFI AMD AM5 mATX Motherbard sounds like a well-equipped option for building a powerful and cool-running mid-size gaming PC. Here's a breakdown of the features you highlighted:
Cooling:
Extended Heatsink: This larger heatsink helps dissipate heat from the CPU more effectively, especially under heavy loads like gaming.
Heavy Plated VRM Heatsink: This heatsink specifically cools the voltage regulator module (VRM), which supplies power to the CPU. Efficient VRM cooling ensures stable power delivery for your processor.
M.2 Shield Frozr: This feature keeps your M.2 solid-state drive (SSD) cool. M.2 SSDs can get hot during operation, and this thermal solution helps prevent overheating and throttling, maintaining optimal performance.
7W/mK Thermal Pad & Additional Choke Pad: These high-quality thermal pads efficiently transfer heat away from critical components like MOSFETs and chokes, ensuring stable performance even when your system is pushed to its limits.
Performance:
LIGHTNING GEN 4 PCI-E: This motherboard supports the latest PCI-Express 4.0 standard, which offers double the bandwidth compared to the previous generation. This allows for high-speed communication between the motherboard and graphics card, maximizing the performance of powerful GPUs.
HEAVY SOLDERED CONNECTIONS: The PCI-Express slots are reinforced with additional solder points to handle the weight of bulky graphics cards and prevent damage from them sagging over time. This also improves structural integrity and protects against electromagnetic interference for a more reliable connection.
Special Features:
