| BASIC INFORMATION | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, - 2oz Copper PCB |
|
| Basic Information | ||
| Chipset | AMD Premium X570 | |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - Supports Purity Sound 4, - Nichicon Fine Gold Series Audio Caps, - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets), - Pure Power-In, - Direct Drive Technology, - PCB isolate shielding, - Impedance Sensing on Rear Out port, - Individual PCB Layers for R/L Audio Channel, - Gold Audio Jacks, - 15μ Gold Audio Connector, - Supports DTS Connect |
|
| CPU | - Supports AMD AM4 socket Ryzen 2000 and 3000 series processors, - Intersil Digital PWM, - 14 Power Phase design, - Capable of providing extra 300W for CPU, - Supports ASRock Hyper BCLK Engine II |
|
| Memory | ||
| Memory | Type: Dual Channel DDR4 Memory Technology, Slots: 4 x DDR4 DIMM Slots, Supported Memory: - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory, Maximum Memory: 128GB |
|
| Storage | - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*, - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*, - 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) |
|
| Graphics | ||
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required), - Supports HDR (High Dynamic Range) with HDMI 2.0, - Supports HDCP 2.2 with HDMI 2.0 Port, - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port, - Supports Microsoft PlayReady |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port 4K x 2K (4096x2160) @ 60Hz | |
| LAN | - Gigabit LAN 10/100/1000 Mb/s, - GigaLAN Intel® I211AT, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE |
|

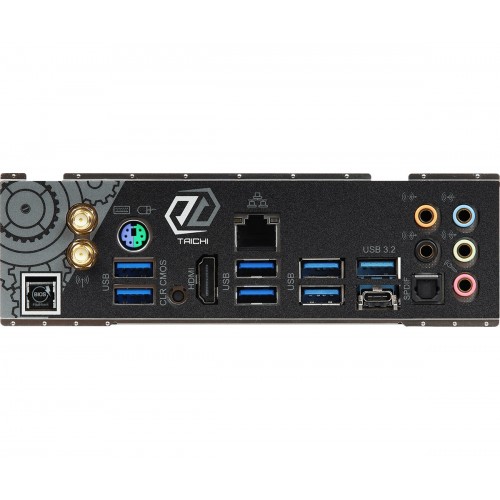

| Internal I/O Ports | - 2 x Antenna Ports, - 1 x PS/2 Mouse/Keyboard Port, - 1 x HDMI Port, - 1 x Optical SPDIF Out Port, - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*, - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), - 1 x Clear CMOS Button, - 1 x BIOS Flashback Button, - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
|
| USB Port | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |

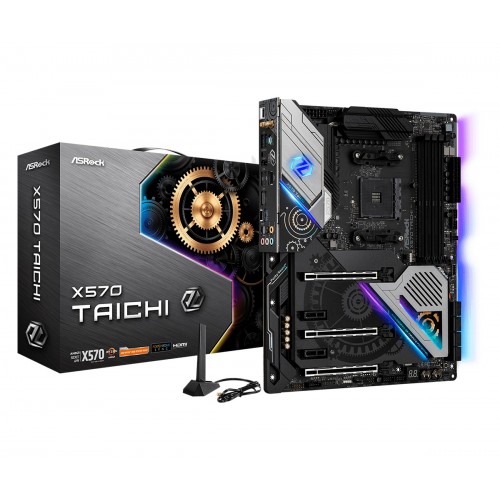

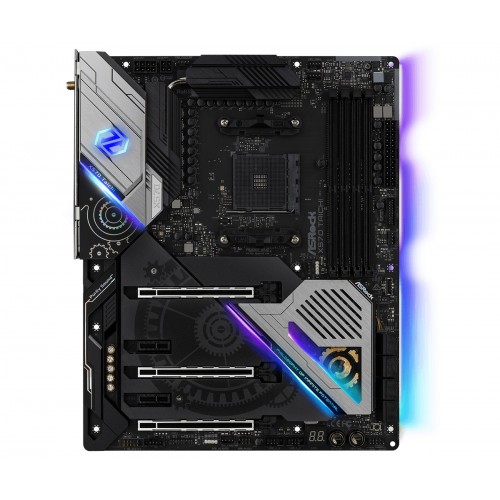

The ASRock X570 Taichi AM4 ATX Motherboard is built on the AMD X570 chipset, supporting second- and third-generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can be overclocked to up to 4666 MHz. For storage, it's equipped with eight SATA III ports and three M.2 slots. There are three PCIe 4.0 x16 slots for graphics cards and two PCIe 4.0 x1 slots for other PCI-based hardware. Other integrated features include Intel I211AT Gigabit Ethernet, Intel 802.11ax Wi-Fi, Bluetooth 5.0, and Realtek ALC1220 7.1-channel HD audio.The The ASRock X570 Taichi chipset is designed around 3rd generation AMD Ryzen 3000-series processors. Along with multiple improvements, its most noteworthy one is the addition of PCIe 4.0. PCIe 4.0 has roughly double the bandwidth of PCIe 3.0, which is beneficial for graphics cards, networking devices, NVMe drives, and more.
