| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec),
- Premium Blu-ray Audio support,
- Supports Surge Protection,
- Nichicon Fine Gold Series Audio Caps |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support,
- Supports "Plug and Play",
- ACPI 5.1 compliance wake up events,
- Supports jumperfree,
- SMBIOS 2.3 support,
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment |

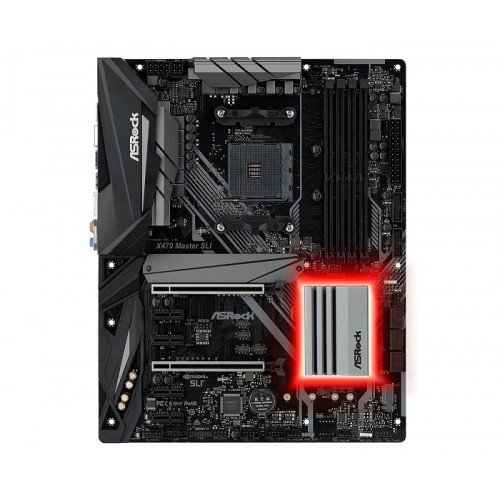

| Chipset | AMD Promontory X470 |
| CPU | - Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
- Digi Power design,
- 12 Power Phase design,
- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge) |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm,
- 2oz Copper PCB |
| Graphics | -Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz,
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required),
- Supports HDCP with HDMI Port,
- Supports 4K Ultra HD (UHD) playback with HDMI Port,
- DirectX 12, Pixel Shader 5.0 |
| HDMI | 1 x HDMI Port |

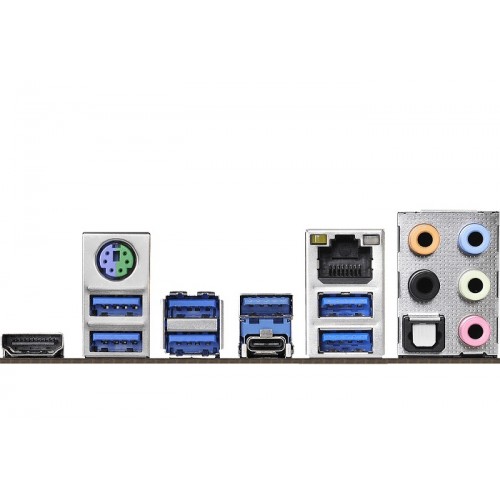

| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port,
- 1 x HDMI Port,
- 1 x Optical SPDIF Out Port,
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection),
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection),
- 6 x USB 3.1 Gen1 Ports (Supports ESD Protection),
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED),
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone,
Software and UEFI,
Software |
| LAN | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Memory | Type:
Dual Channel DDR4 Memory Technology,
Slots:
4 x DDR4 DIMM Slots,
15μ Gold Contact in DIMM Slots,
Supported Memory:
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*,
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*,
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*,
Maximum Memory:
64 GB |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug,
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)*,
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)* |
| USB Port | - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection),
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection),
- 6 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
