| Key Features | ||
| Capacity | 1TB | |
| Sequential R/W | Up to 1,700/1,400 MB/s | |
| Flash Type | 3D NAND flash | |
| Interface | NVMe PCIe Gen3 x4 | |
| MTBF | 2,000,000 hour(s) | |
| Form Factor | M.2 2280 | |
| Physical Specification | ||
| Dimension (L X B X H) | 80 mm x 22 mm x 2.23 mm | |
| Weight | 8 g | |
| Physical Specifications | ||
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

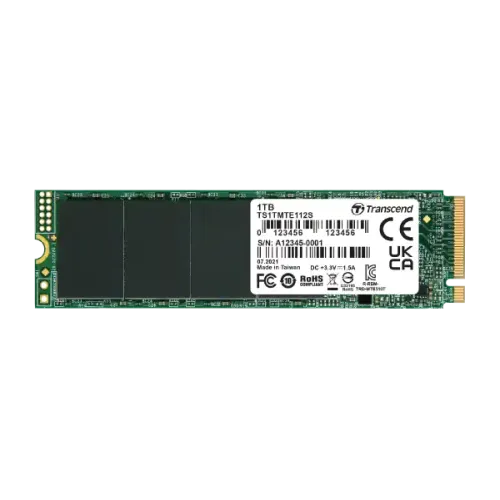

Transcend PCIe 112S 1TB SSD delivers next-generation performance by utilizing the PCI Express Gen3 x4 interface, which is compliant with the latest NVMe standard. The PCIe SSD 110S/112S is intended for high-end applications such as digital audio/video production, gaming, and enterprise use, where big workloads must be processed consistently with minimal system delays or slowdowns. The PCIe SSD 110S/112S, which uses 3D NAND flash memory, offers not just fast transfer rates but also unsurpassed longevity.
Transcend PCIe 112S 1TB SSD is a substantially faster interface for connecting a host computer to solid-state storage devices via one or more lanes, with one transmit and one receive serial interface in each lane, allowing it to satisfy new performance requirements.
NVMe (or NVM Express) is a host controller interface standard developed to meet the demands of enterprise and client applications that use solid-state storage that is PCI Express-based. NVMe requires more performance vectors than AHCI (Advanced Host Controller Interface), such as scalable bandwidth, enhanced IOPS, and reduced latency.
Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.
To keep data secure, Transcend's PCIe 112S 1TB SSD is designed with LDPC (Low-Density Parity Check) coding, a sophisticated ECC technique. The PCIe SSD 110S/112S is built with high-quality NAND flash chips with a dynamic thermal throttling mechanism, ensuring exceptional durability and stability for high-end applications.
Transcend PCIe 112S 1TB SSD Scope software tool is available for free download to maintain your Transcend SSD working fast and error-free. S.M.A.R.T. technology allows you to monitor the health of your SSD, enable the TRIM command for faster write rates, maintain your SSD's firmware up to date, and transfer data from your original drive to a new SSD with a few clicks.
