| Projector Features | ||
| 3D Support | Full 3D – The 3D Features Of Optoma Projectors Can Only Be Used With Compatible 3D Content. Typical Applications Include Use With 3D Educational Or 3D Design And Modelling Systems. 3D TV Broadcast Systems, (SKY In The UK), Blu-Ray 3D™ And 3D Games From The Sony® PS3 Or Microsoft® Xbox 360 Are Now Supported As Part Of The HDMI V1.4a Specification. |
|
| Aspect Ratio | 16:10 Native, 16:9 And 4:3 Compatible | |
| Brightness | 5000 ANSI Lumens | |
| Computer Compatibility | UHD, WUXGA,1080P,UXGA, SXGA+,SXGA ,WXGA+,WXGA,720P,XGA ,SVGA,VGA Compression, VESA Standards, PC & Macintosh Compatible |
|
| Contrast | 300,000:1 (W/ Extreme Black) | |
| Display Technology | DLP | |
| Horizontal Scan Rate | 15.375~91.146 KHz | |
| Keystone Correction | ±30° Vertical, ±30° Horizontal | |
| Lens Shift | +8% (99%~107%) Vertical | |
| Light Source | Laser Phosphor | |
| Light Source Life | 30,000 Hours To 50% Brightness (Eco Mode) | |
| Native Resolution | WUXGA 1920 X 1200 | |
| Projection Distance | 1.0 – 10m | |
| Projection Lens | F/2.5~3.26; F=20.91~32.62mm, 1.6x Manual Zoom | |
| Projection Method | 3360° Operation, Portrait Mode Supported | |
| Projection Screen Size | 20.8" – 331.6“ | |
| Throw Ratio | 1.4 – 2.24 :1 | |
| Vertical Scan Rate | 24 – 85Hz | |
| Video Compatibility | 480i/P, 576i/P, 720p/1080i (50/60Hz), 1080p (24/50/60Hz), 2160p(24/50/60Hz) | |
| Zoom Type | 1.6x Manual | |
| Displayable Colors | 1073.4 Million Colors (10 Bit) | |
| I/O Interface | HDMIx2 (One MHL), USB Power(5V/1.5A), VGA-In 1 X1, Composite X1, Audio-In X1 (Mic), Audio-In X1, Audio Out X1, VGA Out X1, 12V Out X1, Kensington Lock X1, RS232 X1, RJ45 X1, HDBaseT X1, VGA In 2 X1, S-Video X1 |
|
| Noise Level | 31dB (Eco Mode) | |
| Connectivity | ||
| Power Consumption | Typ. 321W@110VAC, 310W@220VAC, Eco Standby : <0.5W, Active Standby : <2W | |
| Power Supply | 1100240V, 5060Hz, Auto-Switching | |
| Physical Specifications | ||
| Dimensions (W x D x H) | 374 X 302 X 107 (Excluded Adjustment Feet) | |
| WARRANTY INFORMATION | ||
| Warranty | 1 Year | |

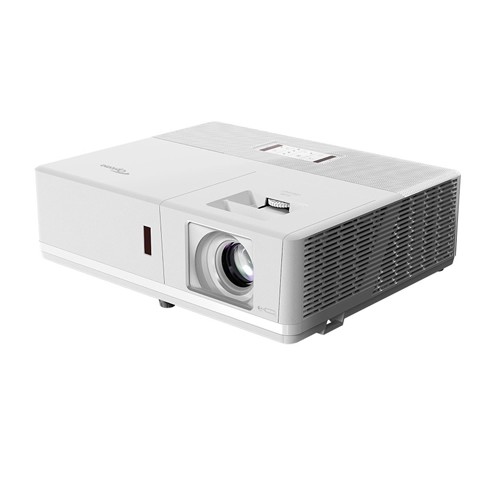

Optoma ZU506T High Brightness Laser Projector Comes With The World’s Smallest And Lightest Laser Projector, The World’s 1st* Projector Compatible With 4K & HDR, Optoma DURACORE Technology, IP6X Dust Resist Provides Good Brightness And Reliability, Up To 30,000 Hours** Laser Light Source Life And Virtually Zero Maintenance For System, Amazing Color, 99% Rec.709 Color Gamut Coverage To Render Lifelike Images, Big 1.6x Zoom & Vertical Lens Shift With Smallest Size Among Competition Make It Labor And Time Saving For Installation, Tilt Free Orientation, Including Portrait Mode, HDBaseT For Easy Installation, Focusing On Its Brightness, World’s Smallest And Lightest Compact Design And Useful Vertical Lens Shift In The 5,000 To 6,000 Lumens Class, The ZU506T Is Offering Best Value For The Entry Professional Installation Market. This Projector Is Perfect For Those Applications That Simply Require The Brightness Level, Ease Of Installation, With Minimum Maintenance For Up To 30,000 Hours**. Delivering Outstanding Reliability, High Intensity Brightness, Compact Design, Stunning Colors And Spectacular Image Quality, The ZU506T Is Precision-Engineered To Power Larger Than Life Experiences.
The 506 Series Is The World’s 1st* Projector Capable To Accept Native 4K Signals And Compatible With HDR10. High Dynamic Range (HDR) Technology Improves Contrast Ratio, Brightness, And Color Depth On The Display, Delivers Brighter Whites And Deeper Black Levels. It Enhances The Details And Depth Of Field, Making The Images Clearer And More Realistic.
This Projector Is Designed With Optoma’s Airtight Optical Engine With IP6X Certification.The Airtight Enclosure Resists Dust Particles And Ensures A Long Lasting, Reliable And Maintenance Free Experience, And Ultimate Brightness Consistency And Reliability. The Mercury Free Laser Light Source Is Rated For Up To 30,000 Hours** Enabling A Low Total Cost Of Ownership.
This Project Achieves 99% Rec. 709 Coverage To Render Lifelike Images That Will Wow Your Audience. 1.6x Zoom RangeA Large Zoom Range Enables Multiple Placement Possibilities At A Variety Of Distances From The Projection Screen. An Advantage To This Is That Expensive Interchangeable Lens Projectors Can Be Substituted With A More Cost Effective Solution Whilst Still Retaining A Diverse Choice Of Positioning Options. Vertical Lens Shift Simplify Installation With Lens Shift, Which Provides A Wide Range Of Projector Placement Possibilities. 4 - Corner Adjustment By Individually Adjusting Each Corner Of The Image, It Eliminates Any Crooked Or Distorted Images In Off-Angle Or Restricted Space Installations For That Perfect Picture.
The Color Matching System, Combines Accurate Measurements Across Multiple Projectors Creates Seamless Blends Every Time.
All ProScene Projectors Are Designed For Continuous 24/7 Operation. Only Industry Proven Components Are Used To Ensure Superior Reliability.
Images Can Be Projected Over A Full 360° Range Along The Vertical Axis, Including Reproduction On A Ceiling Or Floor. This Projector Can Also Be Placed In Portrait Mode For Applications Such As Digital Signage Or For Tall Thin Projection Areas.
Versatile System Integration Control Protocols Crestron RoomView, Extron’s IP Link, AMX Dynamic Device Discovery, PJ-Link, Telnet And HTTP Protocols Are Fully Supported, Allowing The Series To Be Controlled Across A Network, Keeping You In Control, Wherever You Are.
In Situations Where Only Absolute Darkness Is Required, This Projector Can Provide A Total Blackout That Functions Like Mechanical Shutter. The Change Between Normal Projection To A Total Black Image And Vice Versa Is Instantaneous.
Uncompromised, Uncompressed Full HD Video, Audio, Network And Control Commands All Delivered On A Single CAT- Type Cable Capable Up To 100 Meters/328 Feet Without Signal Loss Makes Installation Hassle-Free. HDBaseT Simplifies Cabling Requirements And Reduces Installation Complexity Saving Both Time And Reducing Costs.
This Projector Features Quick Start-Up And Shutdown And Reaches Full Brightness Quickly. To Maximise Energy Saving It Also Includes A ‘Pause Projection’ Feature Where The Light Source Can Be Completely Shut Off. Unlike Conventional Lamp Based Projectors, The Laser- Light Source Requires Minimal Cool-Down Time.
