| Projector Features | ||
| 360-Operation | Yes | |
| 3D Compatibilty | Side-By-Side: 1080i50 / 60, 720p50 / 60 Frame-Pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
|
| 3D Support | Full 3D – The 3D Features Of Optoma Projectors Can Only Be Used With Compatible 3D Content. Typical Applications Include Use With 3D Educational Or 3D Design And Modelling Systems. 3D TV Broadcast Systems, (SKY In The UK), Blu-Ray 3D™ And 3D Games From The Sony® PS3 Or Microsoft® Xbox 360 Are Now Supported As Part Of The HDMI V1.4a Specification. |
|
| Aspect Ratio | 16:9 Native, 16:10, 4:3 And LBX Compatible | |
| Brightness | 7,500 ANSI Lumens | |
| Computer Compatibility | WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC And Macintosh Compatible | |
| Contrast Ratio | 2,000,000:1 ExtremeBlack Enabled (2000:1 Full On/Off) | |
| Display Technology | DLP | |
| Horizontal Scan Rate | 15 – 91kHz | |
| Keystone Correction | Maximum: ±140° Vertical, ±60° Horizontal | |
| Lens Shift | Dependent On Lens | Powered | |
| Light Source | Multi-Colour Laser | |
| Light Source Life | 20,000 Hours |
|
| Native Resolution | 4K UHD 3840×2160 |
|
| Operating Temperature | For 0 ~ 2500 Ft, 5 ~ 40°C / For 2500 ~ 5000 Ft, 5 ~ 35°C / For 5000 ~ 10000 Ft, 5 ~ 30°C | |
| Projection Distance | 1.47~111.86m (Dependent On Lens) | |
| Projection Screen Size | 80" ~500" (Dependent On Lens) | |
| Throw Ratio | 0.85 ~ 10.18 (Lens Dependent) | |
| Vertical Scan Rate | Vertical Scan Rate |
|
| Video Compatibility | PAL (625/576i/P), SECAM, NTSC (525/480i/P), HDTV (720p, 1080i/1080p) | |
| Zoom Type | Motorized | |
| Displayable Colors | 1073.4 Million Colors (10 Bit) | |
| I/O Interface | In : 3G-SDI X1 / HDMI 2.0 X2 / DP1.2a X1 / HDBaseT X1 Out : HDMI X1 / 3G-SDI X 1 / USB Type A (For Wifi Dongle, Located On The Front) Control : RS232C / Wired Remote In X1 / Wired Remote Out X1 / 3D Sync In / 3D Sync Out / RJ45 / 12V Trigger |
|
| Noise Level | 32db (Eco Mode) | |
| Connectivity | ||
| Power Consumption | 1040W +/- 10% @110V AC In Normal Mode 540W +/- 10% @110V AC In Eco Mode 1030W +/- 10%@220VAC In Normal Mode 530W +/-10%@220VAC In Eco Mode |
|
| Power Supply | 100240V, 5060Hz, Auto-Switching | |
| Lamp Details | ||
| Lamp Type | Laser Phosphor | |
| Physical Specifications | ||
| Weight | 33 Kg | |
| Dimensions | 520 X 600 X 219 | |
| WARRANTY INFORMATION | ||
| Warranty | 1 Year |
|

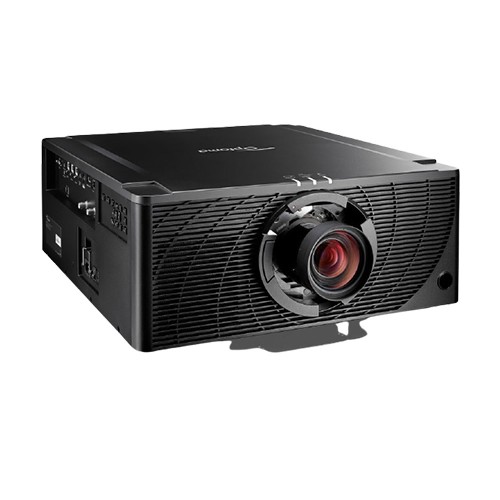

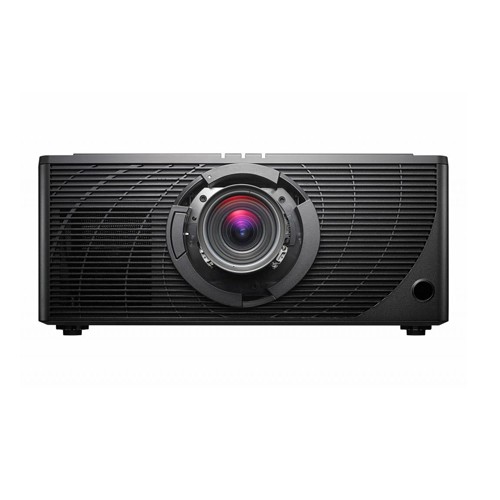

Optoma ZK750 4K Installation Projector Comes With 7,500 Lumens, 20,000 Hours Maintenance Free Light Source, Optoma DuraCore Laser Technology, MCL Technology To Deliver A Wider Color Gamut While Maintaining High Brightness, Support 360-Degree & Portrait Mode & 24/7 Operations, IP6X Certified Optical Engine To Ensure Stable And Long Lasting Brightness Output, Dimmable Brightness (Down To 20%), Content Adaptive Dynamic Black For Excellent Video Quality Full HD 3D Supported, Built-In Warping And Blending, The ZK750 Is An Ultra Bright 7,500 Lumens, 4K UHD Projector For The ProAV Sector. It Features An Industry Unique MultiColor Laser (MCL) Technology Laser Light Source Design Which Delivers A Wider Color Gamut While Maintaining High Brightness. Perfect For Bringing Outstandingly Bright, Vivid, Accurate Colors With High Contrast And Detailed Visuals, The ZK750 Enables Spectacular Image Quality For Every Professional Application., ZK750 Features Optoma’s DuraCore Technology With A 20,000 Hour Lamp-Less Laser Light Source Enclosed In An IP6X Certified Optical Engine To Ensure Reliability And Minimal Maintenance During Its Lifetime Resulting In Low Total Cost Of Ownership.
With Over Eight Million Pixels, Ultra HD 4K Resolution Brings Four Times More Detail Than Full HD, To Deliver Sharper, Life-Like Images And Richer Colours - Allowing You To Sit Closer To The Screen And Enjoy A More Immersive Experience.
Capable Of Receiving And Displaying HDR Meta Data, Optoma HDR Compatible Projectors Allow You To See Far More Detail And Texture. Objects Look More Solid And Life Like And The Extra Detail Creates A Greater Sense Of Depth. It’s Like Looking Through A Window.
Thanks To The Additional Red Laser Diodes, ZK750 Can Render Greater Than 100% Of Rec. 709 And 80% DCI-P3 Color Gamuts While The High Brightness Substantially Benefits The HDR Enhancement. The Overall Image Performance Can Be So Breathtaking And Immersive Even In A Larger Than 300-Inch Display Area.
Utilizing Texas Instruments Award Winning DLP Technology, Optoma’s DuraCore And MultiColor Laser (MCL) Technology, ZK750 Delivers Sharp Images With Stunning Color Reproduction At 7,500 Lumens.
This Technology Ensures All The Information Contained In An Image Is Faithfully Reproduced On The Screen Giving A Stunning Crystal Clear, Pin-Sharp Picture.
Industry Leading Lifetime Is Achieved Using Optoma’s New DuraCore Technology. Implementing Advanced Laser Diode Cooling Techniques And An Innovative Dust Resistant Design, And Light Source Lifetime At 20,000 Hours.
The ZK750 Has Been Independently Tested And Certified With An IP6X Dust Resistance Rating. Outstanding Dust Resistance Combined With Exceptional Brightness Ensures Industry Leading Durability; Paramount For 24/7 Maintenance Free Operation In Challenging Environments, The Dust Resistance Was Tested By An Independent Laboratory In Accordance With ICE Standard 60529 And Was Certified With An IP6X Rating- Airtight Sealed Optical Engine.
Thanks To Its Sophisticated Thermal Engineering, The ZK750 Has The Most Compact Size Among The 10,000 Lm Range Of Laser Projector Products. This Will Save Labor And Equipment Costs During Installation. Due To The 10% Higher Heat Dissipation, The ZK750 Produces Less Noise Than The Competition Whilst Maintaining The Same Brightness.
Precision Etched Thermal Grooves On Each Individual Fin Take 10% More Heat Away From The System And Results In 2% Increase In Brightness.
The ZK750 Features Quick Start-Up And Shutdown And Reaches Full Brightness Quickly. To Maximize Energy Saving It Also Includes A ‘Pause Projection’ Feature Where The Light Source Can Be Completely Shut Off. Unlike Conventional Lamp Based Projectors, The Laser- Light Source Requires Minimal Cool-Down Time.
For Demanding Applications The Total Cost Of Ownership Of A Projector Is Not In The Purchase Cost, But In Expensive Maintenance And Service. ProScene Projectors Require Very Little Maintenance; Have No User Serviceable Parts Inside And No Filters That Require Periodic Replacement. The Result Is Low Cost, Predictable Service Cycles, Enabling Planned Down Time To Be Minimized.
There Is Always Trade Off Between Brightness And Color. High Brightness And Correct Color Reproduction Are Co-Dependent Variables Which Require Fine Tuning For The Best Combination. With The ProAV Industry Demanding That Color Fidelity Is Equally Important As Brightness, Optoma’s MCL Technology Defines Outstanding Balance In Accurate Color Reproduction And Exceptional Brightness. With Red Laser Been Incorporated Into The Light Source, The ZK750 Has The Ability To Produce Wider Than REC. 709 Defined Red Colors. Overall, Images Will Become More Vividly Alive Without Sacrificing Brightness.
There Are 100 Adjustable Steps To Control The Laser Power From 20%~100%. It Means The Brightness Can Dim To 20% Of Full Brightness If Your Application Requires.
There Are 100 Adjustable Steps To Control Brightness From 50%~100%. Brightness Can Be Kept Constant At Your Desired Level. It Is A Very Useful Features For Multiple Projectors Used To Create A Huge Image.
This Function Shall Be Called “Lens Shift Memory” To Be Exact. The ZK750 Is Capable Of Memorizing The Lens Shift Positions Up To 5 Sets. The ZK750 Will Move Whichever Lens That Is Installed To The Saved Positions. Zoom And Focus Might Need To Be Adjusted If Required.
