| BASIC INFORMATION | ||
| General | Model: H7 Flow 2024 Edition Model Number: CM-H72FW-01 Type: Mid-Tower Color: White | |
| Case Features | ||
| Drive Bays | 2.5": 2+2 3.5": 2 | |
| Expansion Slots | Standard: 7 Vertical: 0 | |
| Fan Support | Front: 3 x 120 mm / 3 x 140 mm (3 x F120Q included) Top: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm / 1 x 140 mm Filters: High-Performance Mesh | |
| I/O Port | USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2x2 Type-C (20 Gbps): 1 Headset Audio Jack: 1 | |
| Radiator Support | Front: Up to 420 mm Top: Up to 360mm Rear: Up to 140mm | |
| Fan | Model: F120Q Airflow Fan (Case Version)
Speed: 1,350 ± 150 RPM
Airflow: 60.2 CFM
Static: 1.05 mm - H2O
Noise: 24.1 dBA
Fan Connector: 3-pin
3x F120Q Airflow Fan (pre-installed, case version) |
|
| Key Features | ||
| Compatibility | CPU Cooler Height: Up to 185 mm GPU Length: Up to 410 mm PSU Length: Up to 200 mm Cable Management: Up to 34.5 mm Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 57 mm | |
| Features | Motherboard Support: E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX Enclosure Type: Mid-Tower Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) | |
| Physical Specifications | ||
| Dimensions | Height (with feet): 544 mm Width: 244 mm Depth: 468 mm Weight: 11.13 kg | |

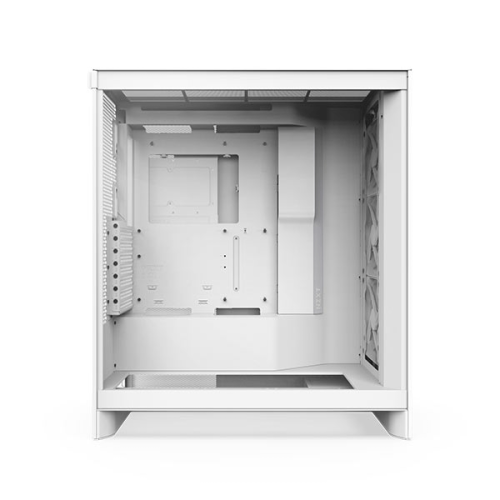

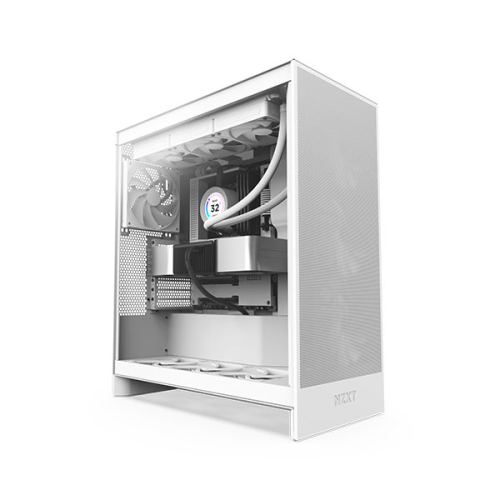

NZXT H7 Flow 2024 Edition Mid-Tower ATX Airflow Casing - White is engineered to provide superior GPU cooling in a sleek, classic mid-tower design. With a vertical PSU layout, it accommodates up to three bottom-mounted 120mm fans for focused GPU cooling without taking up additional space. The case includes three front-mounted 120mm fans, ensuring strong airflow right out of the box. High-performance mesh panels are strategically placed to maximize airflow for both intake and exhaust, keeping temperatures low and dust at bay. For users who need more cooling power, the H7 Flow supports radiators up to 420mm in the front and 360mm on top, catering to high-performance builds.

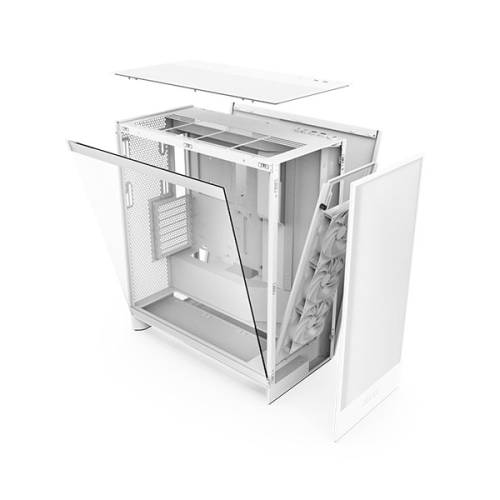

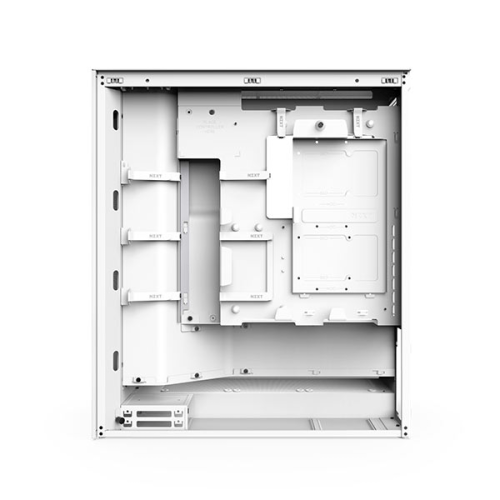

This case supports up to 10 fans in total—three on top, three in the front, three at the bottom, and one at the rear—providing extensive cooling options for any build. The intuitive cable management system offers wide channels, built-in hooks, and straps to simplify routing and maintain a clean, organized look. The H7 Flow also offers convenient access with tool-less front, top, and side panels, making building and upgrades easy. A top panel includes two USB-A ports and one USB-C port, providing handy connectivity options. The NZXT H7 Flow 2024 Edition Mid-Tower ATX Airflow Casing - White is an ideal choice for those looking for efficient cooling, ease of use, and a sleek design in their PC build.
