| BASIC INFORMATION | ||
| Specialty | Motherboard Support: Mini-ITX, Micro-ATX, ATX
Enclosure Type: Mid-Tower Case Material (Black): SGCC Steel, Dark Tinted Tempered Glass |
|
| General | Model: H7 Flow RGB
Model Number: CM-H71FB-R1
Type: Mid-Tower
Color: Black |
|
| Case Features | ||
| Drive Bays | 2.5": 4+2 3.5": 2 | |
| Expansion Slots | Standard: 7 Vertical: 0 | |
| Fan Support | Front: 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included)
Top: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included) Filters: All Air Intakes |
|
| I/O Port | USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 | |
| Radiator Support | Front: Up to 360mm with Push/Pull Top: Up to 360mm Rear: Up to 140mm | |
| Fan | Model: F140 RGB Core Fan (Case Version)
Speed: 1200 ± 120 RPM
Airflow: 61.74 CFM
Static: 2.06mm-H2O
Noise: 29.05 dBA
Fan Connector: 3-pin
Model: F120Q (Case Version) Speed: 1200 ± 240RPM Airflow: 62.18 CFM Static: 1.05 mm - H2O Noise: 25.1 dBA Fan Connector: 3-pin Includes 3x pre-installed F140 RGB Core fans & 1x F120Q Quiet Airflow fan |
|
| Features | ||
| Compatibility | Max CPU Cooler Clearance: Up to 185mm
Max GPU Clearance: Up to 400mm Front Radiator Clearance: 60mm Top Radiator Clearance: 30mm Cable Management: 18-22mm PSU Clearance: Up to 200mm |
|
| Physical Specifications | ||
| Dimension | Height (With Feet): 505mm Height (Without Feet): 480mm Width: 230mm Depth: 480mm Weight: 10.57kg | |

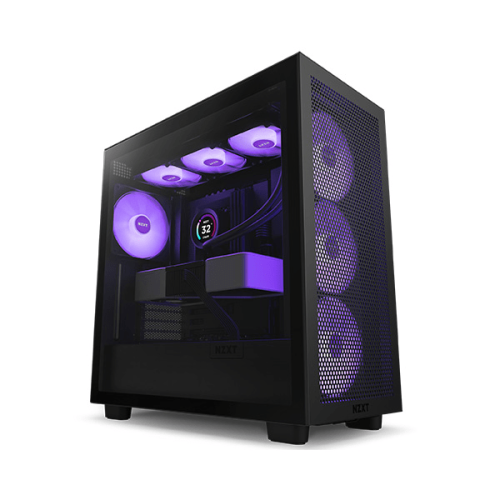

NZXT H7 Flow RGB ATX Mid-Tower Casing in classic black, designed for Mini-ITX, Micro-ATX, and ATX motherboards. Made with SGCC steel and dark-tinted tempered glass, this mid-tower case combines durability with a sleek aesthetic. Equipped with 3x of pre-installed 140mm RGB Core fans at the front and an additional F120Q Quiet Airflow fan at the rear, the H7 Flow RGB is primed to infuse vibrant RGB lighting into your system. This case supports various fan configurations, with space for 3x 120mm or 3x 140mm fans at the front, 3x 120mm or 2x 140mm fans at the top, and 1x 120mm or 1x 140mm fan at the rear. Radiator support includes up to 360mm at the front with push/pull, 360mm at the top, and 140mm at the rear. Connect effortlessly with the front I/O ports, featuring 2x USB 3.2 Gen 1 Type-A ports, 1x USB 3.2 Gen 2 Type-C port, and a convenient headset audio jack.
Optimized for high-performance airflow, the perforated front and top panels guide filtered air through the case, effectively cooling components and enhancing overall system performance. Experience dynamic RGB lighting with three pre-installed F140 RGB Core fans that seamlessly connect to a standard 5V ARGB header. The H7 Flow RGB is ready for top-tier graphics cards, accommodating most NVIDIA GeForce RTX 40 Series with its generous 365mm clearance. Showcase your GPU vertically using the optional NZXT Vertical GPU Mounting Kit. Ensure efficient cooling with support for up to a 360mm radiator or 3 x 140mm fans in the front and top panels. Cable management is simplified with wide channels, hooks, bridges, and straps, providing an organized and clutter-free build.
Overview of NZXT H7 Flow RGB ATX Mid-Tower Casing - Black:
Includes three pre-installed F140 RGB Core fans and one F120Q Quiet Airflow fan.
Features perforated front & top panels for optimal thermal performance.
Features an intuitive cable management system with wide channels, hooks, & straps.
Supports radiators up to 360mm.
Connects multiple F140 RGB Core fans to 5V ARGB header.
Supports vertical GPU mounting.
Features two top-mounted USB 3.2 Type-A and one top-mounted USB 3.2 Type-C ports.
Upgrade your gaming rig with the NZXT H7 Flow RGB – where style meets functionality for an immersive RGB experience that keeps your components cool and your system running smoothly.
