| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen™ 5000 & 3000 Series Desktop Processors (Not Compatible With AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) And AMD Ryzen™ 4000 G-Series Desktop Processors |
|
| BIOS | 1x 256 Mb Flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-Language |
|
| Form Factor | M-ATX Form Factor | |
| Basic Information | ||
| Chipset | Supports AMD Ryzen™ 5000 & 3000 Series Desktop Processors (Not Compatible With AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) And AMD Ryzen™ 4000 G-Series Desktop Processors Chipset AMD B550 Chipset |
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio | |
| Memory | ||
| Slots | 1x PCIe 3.0 X16 Slot (From CPU) 2x PCIe 3.0 X1 Slots (From AMD B550 Chipset) |
|
| Memory | 4x DDR4 Memory Slots, Supporting Up To 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz By JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz By A-XMP OC MODE 1DPC 1R Max Speed 4400 MHz 1DPC 2R Max Speed 3733 MHz 2DPC 1R Max Speed 3866 MHz 2DPC 2R Max Speed 3466 MHz Dual Channel Memory Architecture Supports Non-ECC UDIMM Memory Supports ECC UDIMM Memory (Non-ECC Mode) Supports Un-Buffered Memory |
|
| Graphics | ||

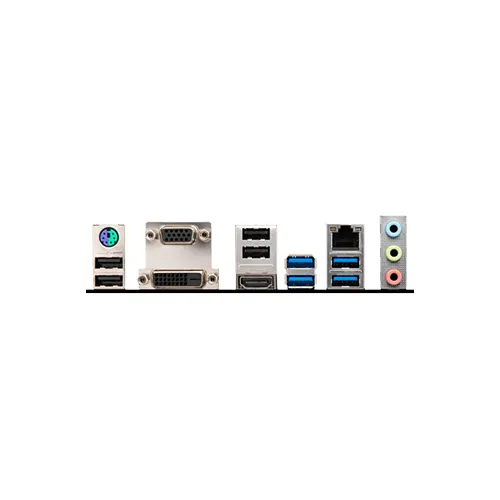

| Graphics | 1x VGA Port, Supports A Maximum Resolution Of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1 1x HDMI 1.4 Port, Supporting A Maximum Resolution Of 4096x2160 @30Hz, 2560x1600 @60Hz 1 2 1x DVI-D Port, Supports A Maximum Resolution Of 1920x1200 @60Hz 1 2 Maximum Shared Memory Of 16 GB |
|
| Connector & Ports | ||
| LAN | 1x Realtek® RTL8111H 1Gbps LAN Controller | |
| Supported Storage | 4x SATA 6Gb/S Ports (From AMD B550 Chipset) .2 SSD SLOTS 1x M.2 Slot (Key M) M2_1 Slot (From CPU) Supports PCIe 3.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices |
|
| Internal I/O Ports | FAN CONNECTORS 1x 4-Pin CPU Fan Connector 2x 4-Pin System Fan Connectors 1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector 1x Serial Port Connector 1x Parallel Port Connector 1x TPM Module Connector |
|
| USB Port | INTERNAL USB CONNECTORS 1x USB 3.2 Gen 1 5Gbps Connectors (From AMD B550 Chipset) Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports 2x USB 2.0 Type-A Connectors (From AMD B550 Chipset) Supports Additional 4 USB 2.0 Ports |
|
| Others | ||
| Special Features | DDR4 Boost Audio Boost Turbo M.2 EZ Debug LED Core Boost PCI-E Steel Armor |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

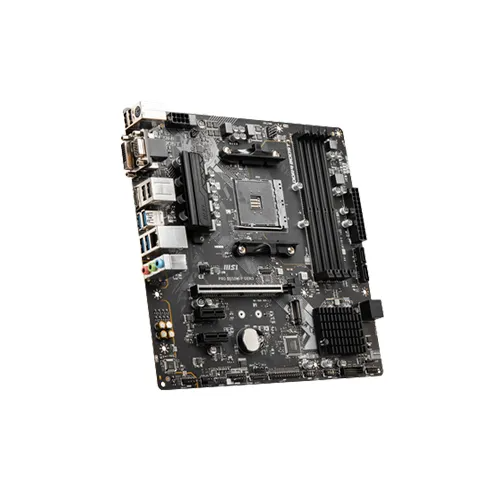

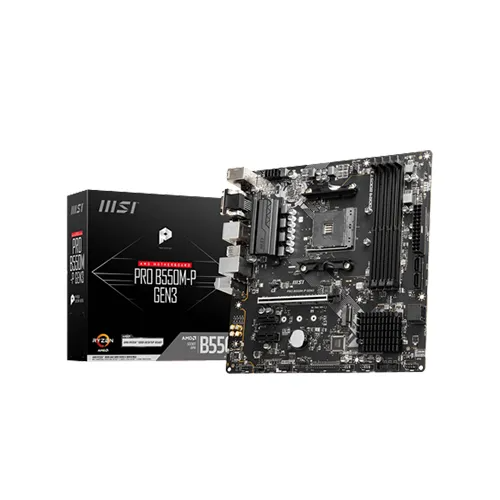

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI PRO B550M-P GEN3 Is DDR4 Micro Atx Motherboard. It's Offer DDR4 Boost. The Fully Isolated DDR4 Circuit To Deliver Pure Data Signals For The Best Performance And Stability. MSI PRO B550M-P GEN3 Support 4k And Legacy Video With Featuring With HDMI,VGA Port And DVI-D Supports At Both Digital And Legacy Display. In This Motherboard You Will Also Get The Audio Boost System. Reward Your Ears With Studio Grade Sound Quality For The Most Immersive Gaming Experience. On The Other Hand MSI PRO B550M-P GEN3 Gives Us The Core Boost System, With The Premium Layout And Digital Power Design To Support More Cores And Provide Better Performance. MSI PRO B550M-P GEN3 Also Offer The Easies Way To Troubleshoot With EZ Debug LED. If We Talk About The Memory Support It's Give Up The Maximum 128GB Of RAM, And Storage System Offers The Most Powerful M.2 32Gbps Slot.PRO Series Helps Users Work Smarter By Delivering An Efficient And Productive Experience. Featuring Stable Functionality And High-Quality Assembly, PRO Series Motherboards Provide Not Only Optimized Professional Workflows But Also Less Troubleshooting And Longevity.
MSI Motherboards Feature Tons Of Convenient And Smart Design For DIY Users, Countless System Tuning And Troubleshooting Tools Are At Your Disposal To Push You System To New Heights And Satisfy Even The Most Demanding Tweaker. Makes It So Easy To Install Your Own Motherboard Without Any Issue.
MSI Motherboards Let You Manage Speeds And Temperatures For All Your System And CPU Fans. Total Fan Control Allows You Check Your Primary System Characteristics In A Simplified Graphical Interface. You Can Also Set Up To 4 Temperature Targets For CPU And Motherboard, Which Will Adjust The Fan Speeds Automatically.
The Most Important Thing Of DIY Is Expandability. MSI PRO Series Motherboards Feature Plenty Possibility For Prosumers Need. Stable LAN, Faster Storage And USB Transfer Speed And Other Expandable Connectors Are Ready To Enlarge You Flexibility.
MSI PRO Series Motherboards Support All The Latest Storage Standards, Which Allows Users To Connect Any Ultra-Fast Storage Device. Higher Efficiency Makes Your Work Easier.
MSI Pro Series Motherboards Are Deigned To Satisfy Any Professional Workflow. Elevate Your Listening Pleasure And Enjoy Extreme Sound Quality. Moreover, With Years Of Experience In Creating Performance Enhancing Tools That Are Easy To Use, Only The Highest Quality Applications Are At You Disposal. The Extensive Features Let You Fine-Tune Your System To Deliver Reliable Maximum Performance.
MSI Conducts Thorough Memory Testing With The Most Popular Memory Brands Under Extreme Conditions To Ensure Your System Runs Stable No Matter What. Our Memory Partners Include Brands Like Corsair, Crucial, Kingston, G.Skill And Many More To Optimize Memory Modules And Configurations.
Core Boost Technology Combines MSI's Premium Layout And Optimized Power Design Which Allows For Faster And Undistorted Current Delivery To The CPU At Pin-Point Precision. Not Only Supporting Multi-Core CPU, Also Creating The Perfect Conditions For Your CPU Overclocking.
