| Basic Information | ||
| Special Features | 4x EZ Debug LED 1x EZ LED Control switch |
|
| BASIC INFORMATION | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
|
| Chipset | INTEL Z790 | |
| Graphics | 1x HDMI |
|
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC4080 Codec |
|
| Basic Information | ||
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot |
|
| M.2 Socket | 5x M.2 slots | |
| Memory | ||
| Slots | 4 x DIMM | |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
|
| Maximum Memory | 192GB | |

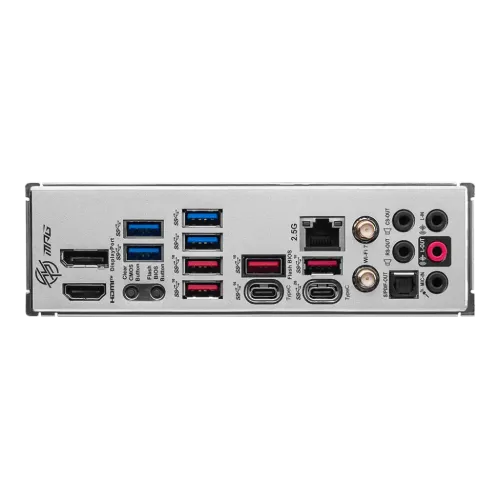

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port | 1x DisplayPort 1.4 | |
| Wireless Communication module | Wi-Fi 7 Solution |
|
| LAN Port (s) | Intel 2.5Gbps LAN | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |

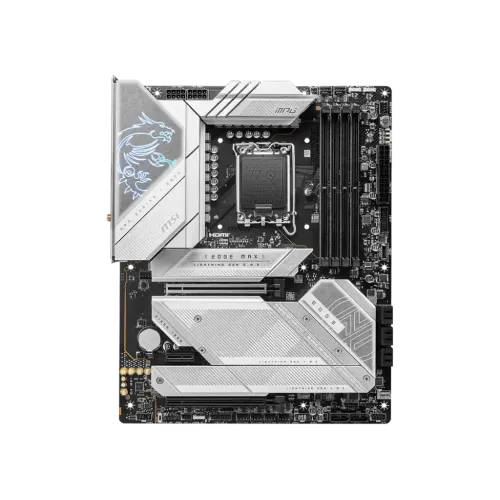

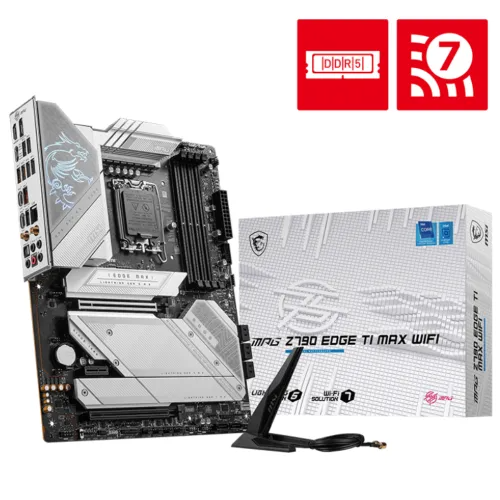

The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard is a high-performance motherboard that supports Intel Core 14th/13th/12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors for the LGA 1700 socket. With its PCIe 5.0 slot, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2, it also supports DDR5 Memory at speeds of up to 7800+(OC) MHz, giving a lightning-fast gaming experience. With a 16+1+1 Mirrored Power Arrangement, two 8-pin CPU power connections, Core Boost, and Memory Boost, the motherboard has an increased power architecture. It also boasts a premium thermal solution, which includes a larger heatsink with heat-pipe, MOSFET thermal pads certified for 7W/mk, extra choke thermal pads, and M.2 Shield Frozr, which ensures great performance and a non-stop gaming experience. The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX motherboard also has a 2.5G LAN and Wi-Fi 7 Solution, giving a secure, reliable, and fast network connection. It also boasts AUDIO BOOST 5, which provides studio-grade sound quality for the most immersive gaming experience. The motherboard is constructed with a high-quality PCB, a 6-layer PCB composed of server-grade level material, and has a pre-installed I/O Shield, which provides greater EMI protection and ease of installation. The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard is a high-end motherboard with great performance and features for both gamers and professionals.
