MSI MEG Ai1600T PCIE5 1600W 80 Plus Titanium Fully Modular Power Supply

Name: MSI MEG Ai1600T PCIE5 1600W 80 Plus Titanium Fully Modular Power Supply
Brand: MSI
SKU: 14801
Price: 87600 BDT
Availability: InStock
Rating: 5 (2 reviews)

Price: 82,990৳ ~~87,600৳~~

Status: In Stock

Product Code: 14801

Brand: MSI

Payment Options

82,990৳ ~~87,600৳~~

Cash Discount Price

Online / Cash Payment

13,832৳/month

Regular Price: 82,990৳

EMI Facility Available***

Quantity :

Chat Through

Whatsapp Messenger 09617179141

Specification
Description
Reviews ( 0)

Specification:

Basic Information
Others	Fan Bearing: Double Ball Bearing Protection: OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO
Key Feature
Certification	80 Plus Titanium
CPU	EPS (4+4 pin) x2
Efficiency (Approx.)	Up to 94%
Fan Size	135 mm
Modular Type	Fully Modular
Output
Total Power	1600W
Peak Power	Power Excursion: 3840W (*up to 240% of the PSU's rated power for 100μs)
Connectors
Main Power	ATX (24 pin) x1
PCI-E	PCI-E 5.1 (16 pin) x2 (600W) PCI-E (6+2 pin) x9
SATA	SATA (15) x8
Input
Frequency Range	50-60Hz
Voltage	100~240 VAC
WARRANTY INFORMATION
Manufacturing Warranty	10 Years

Description :

MSI MEG Ai1600T PCIE5 1600W 80 Plus Titanium Fully Modular Power Supply

Key Features & Specs

Power Output

1600 W continuous rated; can handle power spikes up to 3840 W for brief excursions. Compliant with ATX 3.1 and PCIe 5.1 to support high-demand GPUs like RTX 50xx series

Efficiency & Certification

Certified 80 Plus Titanium and Cybenetics Titanium: ~94% peak efficiency at 230 V; maintains ≥90% across typical load ranges

Noise Performance

Cybenetics A++ noise rating (<15 dB A); in real-world tests, noise stays near 9.4 dB A—practically silent

Cooling & Thermals

Equipped with a 135 mm dual-ball bearing fan in semi-passive mode (zero-RPM below ~55% load). Enhanced cooling via SiC MOSFETs and oversized heatsinks with airflow optimization

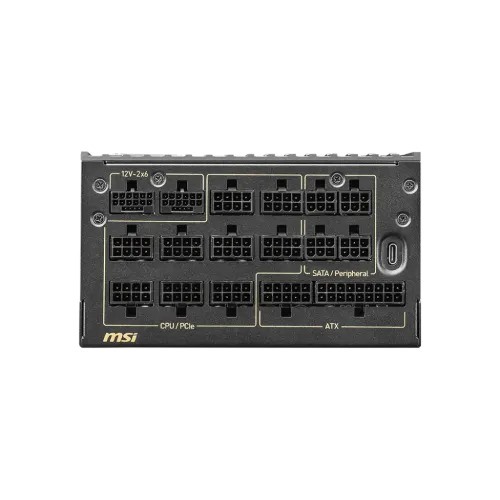

Connectors & Modularity

Fully modular design with extensive cable support:

1× ATX 24‑pin

2× EPS (CPU)

2× PCIe 12V‑2×6 (native 16‑pin cable)

9× PCIe 6+2‑pin

8× SATA + 8× Molex

Premium Components

Made by CWT using server‑grade SiC MOSFETs and top-tier Japanese capacitors; ZIC-fan, high transient handling, and full protection suite including OCP/OVP/UVP/SCP/OPP/OTP

Software Integration & Aesthetics

RGB display and monitoring via USB-C connection to MSI Center; color-coded 12 VHPWR cables ensure proper seating

Dimensions

Size: 190 × 150 × 86 mm (longer than standard PSUs), weight ~2.5 kg.
