MSI H510M PLUS II INTEL DDR4 mATX Motherboard

Name: MSI H510M PLUS II INTEL DDR4 mATX Motherboard
Brand: MSI
SKU: 16024
Price: 10200 BDT
Availability: OutOfStock
Rating: 5 (2 reviews)

Price: Out Of Stock

Status: Out Of Stock

Product Code: 16024

Brand: MSI

Key Features

Model: H510M PLUS II
Supported CPU: 11th 10th/11th Gen Intel processors for LGA 1200
Supported RAM: 2x DDR4, Max 2933 MHz, Up to 64GB
Graphics Output: 1x HDMI, 1x VGA
Features: 1x M.2, Realtek 8111H Gigabit LAN

View More Info

Payment Options

Out Of Stock

Cash Discount Price

Online / Cash Payment

1,600৳/month

Regular Price: 9,600৳

EMI Facility Available***

Quantity :

Chat Through

Whatsapp Messenger 09617179141

Specification
Description
Reviews ( 0)

Specification:

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA 1200 Socket
Chipset	INTEL H510
Form Factor	mATX
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket	1x M.2
Memory
Type	DDR4
Slots	2
Supported Memory	Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	64GB
Graphics
Graphics	1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

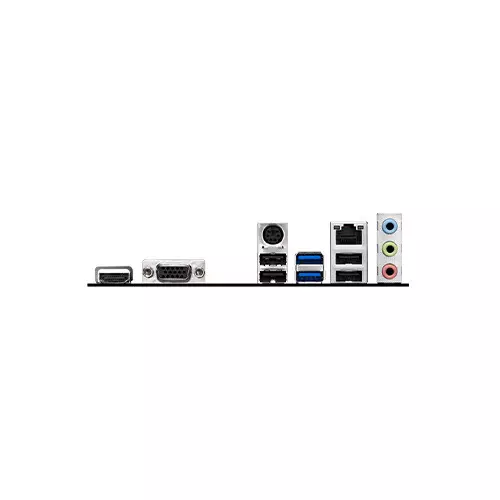

Connector & Ports
HDMI	1x HDMI
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN Port (s)	Realtek 8111H Gigabit LAN
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
Display Port (s)	1x VGA
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 Year

Description :

MSI H510M PLUS II Intel DDR4 mATX Motherboard

The MSI H510M PLUS II is a reliable and affordable Intel H510 DDR4 micro-ATX motherboard designed for everyday computing, office work, multimedia, and budget gaming PC builds. It supports compatible Intel 10th and 11th Gen processors, making it a practical choice for users looking to build a cost-effective Intel-based desktop.

With DDR4 memory support and a compact mATX form factor, the MSI H510M PLUS II is suitable for both standard and smaller PC cases. Its essential connectivity and expansion options provide a solid foundation for an everyday or budget-performance PC.

Processor Support

The MSI H510M PLUS II motherboard is designed for compatible Intel 10th and 11th Generation processors using the LGA 1200 platform. It can be used with suitable Intel Core, Pentium Gold, and Celeron processors depending on CPU and BIOS compatibility.

DDR4 Memory Support

This motherboard supports DDR4 RAM, allowing users to build an efficient and responsive desktop system. DDR4 memory is suitable for everyday applications, office software, browsing, multimedia, and budget gaming.

Compact Micro-ATX Design

The Micro-ATX form factor makes the MSI H510M PLUS II a good choice for compact PC builds. Its smaller motherboard size allows it to fit into many compatible mATX and larger PC cases while still providing essential expansion and connectivity options.

Ideal for Budget PC Builds

If you are planning an affordable Intel PC, the MSI H510M PLUS II provides a practical platform for everyday computing. It is suitable for:

Office and business computers
Home and study PCs
Internet browsing
Multimedia and entertainment
Entry-level gaming PCs
Budget desktop builds
General-purpose computing

Why Choose MSI H510M PLUS II?

The MSI H510M PLUS II combines Intel H510 chipset support, DDR4 memory compatibility, LGA 1200 processor support, and a compact mATX design in an affordable motherboard platform. It is a suitable option for users who want to build a reliable Intel-based PC while keeping the overall system cost under control.

MSI H510M PLUS II Price in Bangladesh

Looking for the MSI H510M PLUS II motherboard price in Bangladesh? This motherboard is a budget-friendly option for Intel 10th and 11th Gen PC builds. Check the current product price, stock availability, warranty information, and delivery options before purchasing.
