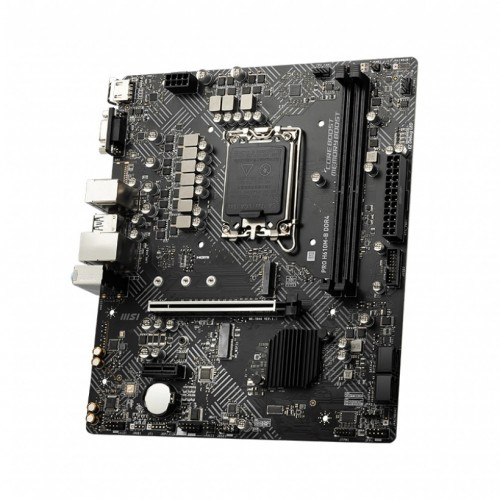

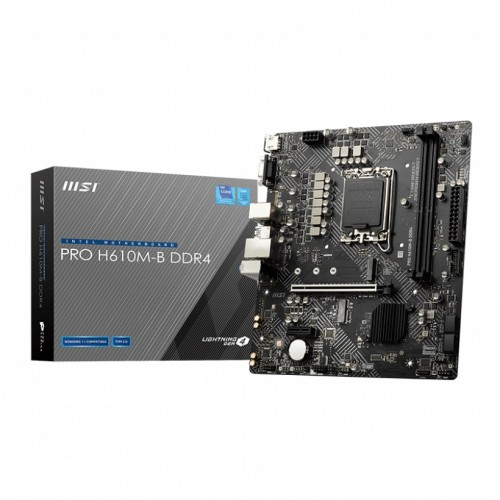

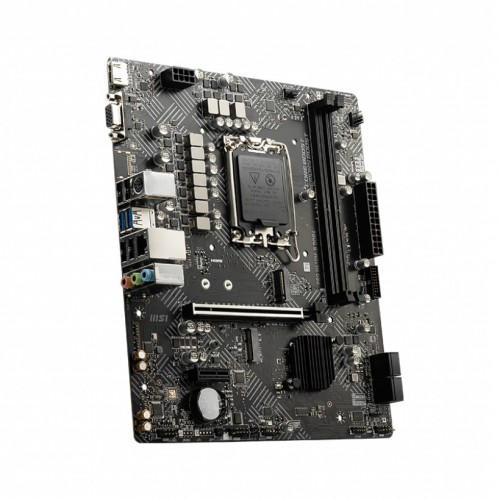

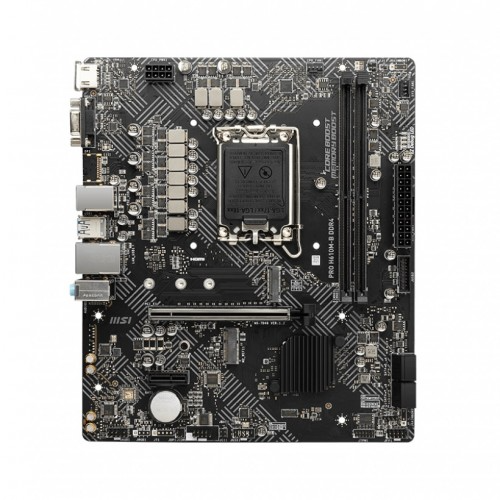

MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard

MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard

The MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard is a powerful and reliable motherboard designed to support the latest 12th generation Intel Core processors, Pentium Gold, and Celeron processors. Ideal for a wide range of computing needs, this micro-ATX motherboard boasts a feature-rich design and robust performance capabilities.At the heart of the motherboard is the Intel H610 chipset, which provides excellent stability and efficiency for your system. The board supports up to 64GB of DDR4 memory across its two DIMM slots, ensuring smooth multitasking and efficient handling of memory-intensive tasks. With support for memory speeds up to 3200MHz, it offers excellent compatibility with a variety of memory modules and supports Extreme Memory Profile (XMP) for easy memory overclocking.For graphics, the motherboard provides versatile connectivity options, including one HDMI 2.1 port with HDR support and a maximum resolution of 4K 60Hz, making it perfect for high-definition displays and multimedia applications. Additionally, there's a VGA port that supports resolutions up to 2048x1536 50Hz, providing compatibility with older displays or projectors.The motherboard features one PCIe x16 slot, supporting up to PCIe 4.0 x16 for enhanced graphics performance and high-speed data transfers. There's also a PCIe x1 slot for additional expansion capabilities, allowing you to add various expansion cards like network adapters or sound cards.When it comes to storage, the MSI PRO H610M-B provides a single M.2 slot that supports PCIe 3.0 x4 and SATA 6Gb/s, accommodating high-speed NVMe SSDs or traditional SATA-based storage drives. The inclusion of Intel Smart Response Technology further enhances storage performance by allowing SSD caching for faster data access.On the audio front, the motherboard incorporates the Realtek ALC892/ALC897 Codec, delivering 7.1-channel high-definition audio, ensuring an immersive sound experience for movies, games, and music.Connectivity is well-covered with Intel I219V 1Gbps LAN controller, offering reliable and high-speed network connectivity. The rear I/O panel features multiple USB ports, including four USB 3.2 Gen 1 (5Gbps) ports and four USB 2.0 ports, granting easy access to various peripherals and accessories.MSI has also added convenient internal I/O ports, such as front panel audio connectors, system panel connectors, chassis intrusion connector, and TPM module connector, enhancing the overall usability of the motherboard.

The motherboard supports up to 64GB of DDR4 memory across two DIMM slots. It operates in dual-channel mode and supports memory modules with speeds ranging from 2133MHz to 3200MHz, including Extreme Memory Profile (XMP) memory modules. The motherboard also provides support for ECC Un-buffered DIMM memory modules, offering reliability and error correction.With its comprehensive set of features, compact form factor, and a three-year warranty, the MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard is a reliable choice for users looking to build a powerful and efficient system based on Intel's latest generation of processors.

Features:

• 12TH GEN CORE READY - The PRO H610M-B DDR4 is a compact micro-ATX motherboard outfitted with the latest Intel H610 chipset (LGA 1700, 12th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & peformance
• SMART COOLING - VRM cooling includes active Frozr AI CPU & GPU responsive cooling; The chipset features a passive heatsink
• DDR4 MEMORY, PCIe 4.0 x16 SLOT - 2 x DDR4 DIMM slots with Memory Boost isolated circuitry (1R, 3200 MHz); A PCIe 4.0 x16 Steel Armor slot supports the system graphics card
• GEN3 M.2 CONNECTOR - Storage includes 1 x M.2 Gen3 x4 32Gb/s slot; NVMe based SSD storage reduces loading time

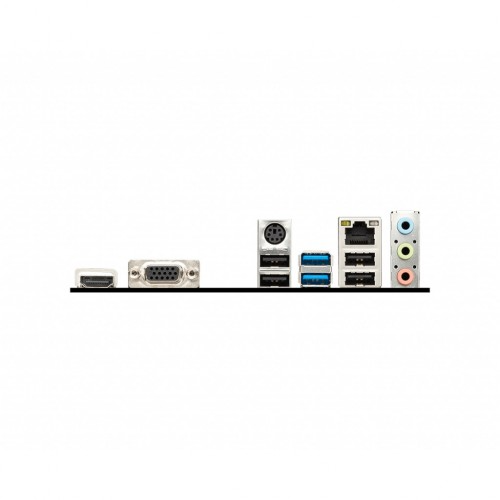

• 1G CONNECTIVITY - Features Intel I219-V 1G LAN; Fixed ports include legacy VGA as well as the latest HDMI 2.1 ports (4K/60Hz) - requires CPU with integrated graphics; 4 x USB 3.2 Gen 1 Type-A (5Gb/s) and 7.1 HD Audio with Audio Boost.

MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard Price in BD

MSI PRO H610M-B price in Bangladesh is ৳ 10,300. The MSI PRO H610M-B DDR4 motherboard supports Intel Core, Pentium Gold, and Celeron CPUs from the 12th generation. It includes a dual-channel Non-ECC Unbuffered DDR4 and two DIMMs. It has solid plated ATX 12V 8pin power connectors for a steady power supply even when the CPU is overloaded. It has a 6+1+1 Hybrid Digital VRM Design. The Gen 4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed. This MSI LAN Manager automatically categorizes and prioritizes latency-sensitive apps, ensuring that you get the greatest online experience with minimum latency. It offers six Smart fan features. Multiple temperature sensors and hybrid fan headers with FAN STOP are included. It has HDMI and D-Sub ports for multiple displays.
