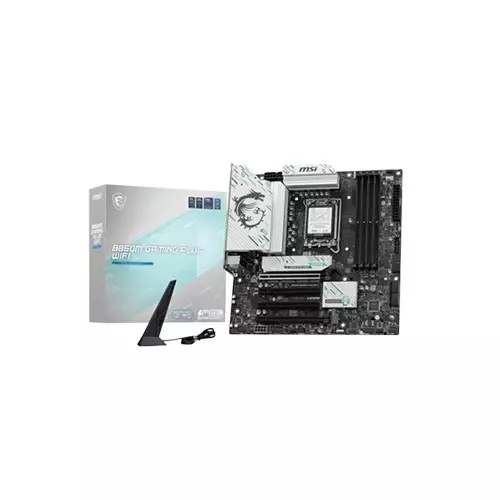

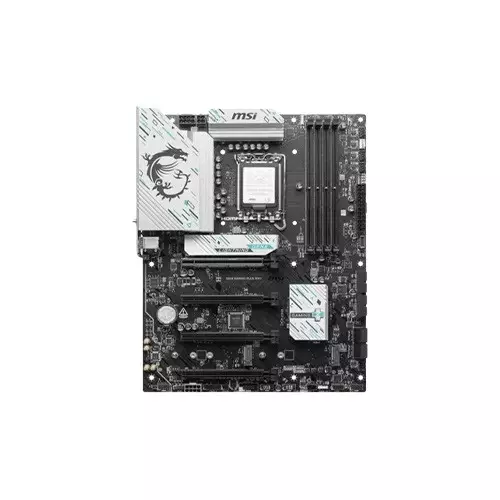

MSI B860M GAMING PLUS WIFI7 DDR5 Intel LGA1851 Micro ATX Motherboard

Name: MSI B860M GAMING PLUS WIFI7 DDR5 Intel LGA1851 Micro ATX Motherboard
Brand: MSI
SKU: 16029
Price: 31500 BDT
Availability: InStock
Rating: 5 (2 reviews)

Price: 26,200৳ ~~31,500৳~~

Status: In Stock

Product Code: 16029

Brand: MSI

Key Features

Model: B860M GAMING PLUS WIFI
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB, 8800+ MT/s (OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C (Thunderbolt 4)
Features: 3x M.2, Intel Killer E5000 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4

View More Info

Payment Options

26,200৳ ~~31,500৳~~

Cash Discount Price

Online / Cash Payment

4,367৳/month

Regular Price: 26,200৳

EMI Facility Available***

Quantity :

Chat Through

Whatsapp Messenger 09617179141

Specification
Description
Reviews ( 0)

Specification:

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset	INTEL B860
Form Factor	mATX Form Factor
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket	3x M.2
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory	Maximum Memory Capacity 256GB
Graphics
Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

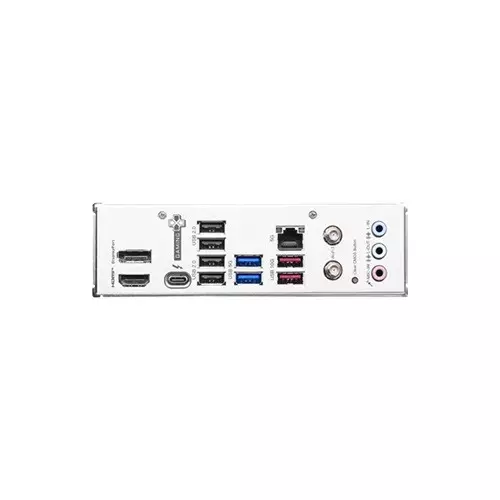

Connector & Ports
HDMI	1x HDMI 2.1
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)	Intel Killer E5000 5Gbps LAN
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Display Port (s)	1x DisplayPort 1.4a
Wireless Communication module	Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Warranty Information
Warranty	3 Year

Description :

MSI B860M GAMING PLUS WIFI7 DDR5 Motherboard

The MSI B860M GAMING PLUS WIFI7 DDR5 Motherboard is a modern Micro ATX motherboard designed for high-performance Intel LGA1851 PC builds. Featuring the Intel B860 chipset, DDR5 memory support, WiFi 7 connectivity, and modern expansion options, it provides a reliable and feature-rich platform for gaming, productivity, and professional PC builds.

Built for compatible Intel LGA1851 processors, the MSI B860M GAMING PLUS WIFI7 delivers a modern foundation for next-generation desktop systems. The Intel B860 chipset offers a balanced platform for gaming, multitasking, content creation, and everyday performance.

DDR5 Memory Support

With DDR5 memory support, this motherboard is ready for modern high-performance PC configurations. DDR5 provides improved bandwidth and efficiency, making it suitable for demanding applications, gaming, multitasking, and professional workloads.

WiFi 7 Connectivity

Integrated WiFi 7 provides next-generation wireless connectivity when paired with a compatible router or access point. It is ideal for online gaming, streaming, file transfers, video conferencing, and everyday high-speed networking while helping maintain a clean and cable-free setup.

Compact Micro ATX Design

The Micro ATX form factor offers a practical balance between compact size and expansion capability. It is suitable for gaming PCs, compact workstations, office systems, and space-efficient desktop builds.

Gaming & Performance Ready

Pair the MSI B860M GAMING PLUS WIFI7 with a compatible Intel processor, DDR5 RAM, dedicated graphics card, and high-speed SSD to create a powerful gaming or productivity PC. Its modern platform and connectivity make it suitable for a wide range of performance-focused builds.

Why Buy from PC House?

PC House offers genuine computer hardware and PC components for gaming, professional, and everyday computing needs. Choose the MSI B860M GAMING PLUS WIFI7 DDR5 Motherboard from PC House to build a modern Intel-based PC with advanced connectivity and DDR5 performance.

Order the MSI B860M GAMING PLUS WIFI7 DDR5 Motherboard from PC House today and build your next-generation performance PC.
