| Basic Information | ||
| Chipset | AMD B650 | |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel HD Audio Connectors |
|
| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
|
| Form Factor | mATX 243.84mmx243.84mm |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port | 1x Display Port | |

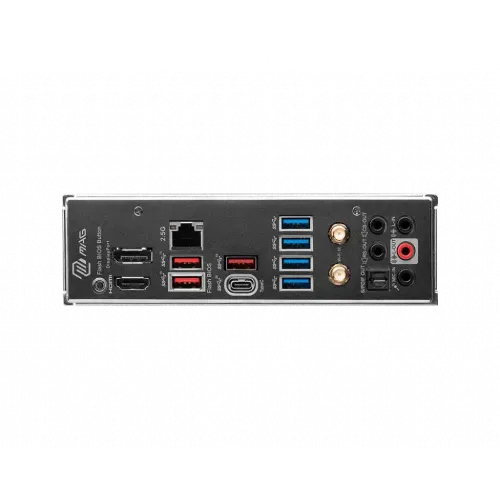

| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN | Realtek RTL8125B 2.5Gbps LAN | |
| Wireless | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Supported Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

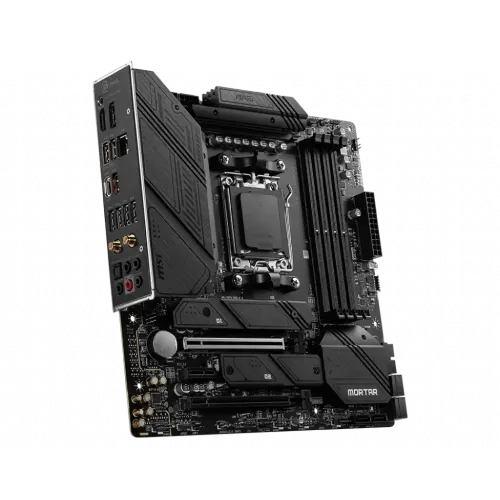

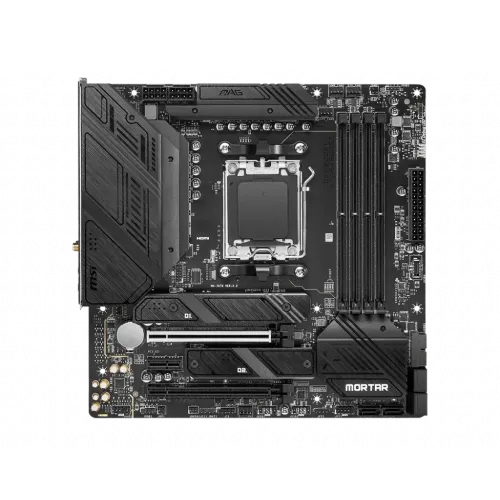

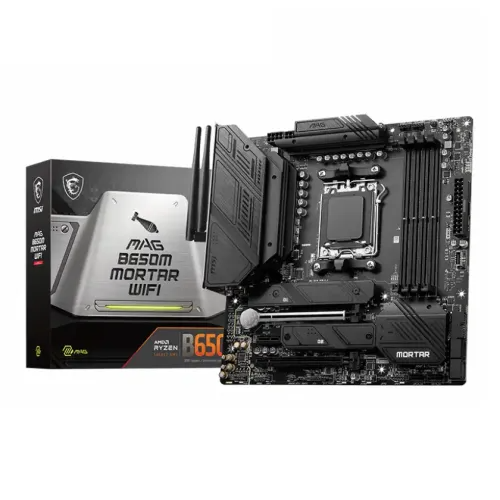

The MSI MAG B650M MORTAR WIFI is an advanced and feature-rich mATX motherboard designed to support the latest generation of AMD Ryzen processors, specifically the AMD Ryzen 7000 Series Desktop Processors using the Socket AM5. This motherboard stands out for its robust build quality, cutting-edge technologies, and impressive performance capabilities.At the heart of the motherboard lies the AMD B650 chipset, which provides the foundation for seamless connectivity and efficient data handling. The motherboard supports the ultra-fast and power-efficient DDR5 memory, with speeds ranging from 4800MHz (JEDEC) to overclockable frequencies up to 6400MHz, ensuring snappy responsiveness and smooth multitasking.For graphics capabilities, the motherboard comes equipped with 1 HDMI and 1 DisplayPort, supporting HDMI 2.1 with HDR and a maximum resolution of 4K at 60Hz, as well as DisplayPort 1.4 with a maximum resolution of 8K at 60Hz. Gamers and content creators can enjoy stunning visuals and lifelike colors with high refresh rates.The onboard audio solution features the Realtek ALC4080 Codec, delivering immersive 7.1-channel high-performance audio with support for S/PDIF output. The motherboard also boasts HD Audio Connectors for convenient audio device connectivity.When it comes to storage and expansion, the MSI MAG B650M MORTAR WIFI offers 2 M.2 slots with PCIe 4.0 x4 support, accommodating high-speed NVMe SSDs for lightning-fast data access. Additionally, it provides 6 SATA 6G ports, allowing you to connect multiple traditional SATA drives for ample storage space. The motherboard further features multiple PCI-E slots, including 2 PCI-E x16 slots for graphics cards (supporting x16 and x4), and 1 PCI-E x1 slot for various expansion cards.Connectivity options are abundant with numerous USB ports, including USB 2.0, USB 3.2 Gen1 Type-A, and USB 3.2 Gen2 Type-C ports conveniently located both at the front and rear of the motherboard. The Realtek RTL8125B LAN chip provides ultra-fast 2.5Gbps Ethernet, ensuring low-latency and lag-free online gaming or high-speed data transfers.One of the standout features of this motherboard is its built-in Wi-Fi 6E module, offering ultra-fast and reliable wireless connectivity. It supports a variety of bands, including 2.4GHz, 5GHz, and 6GHz, ensuring exceptional wireless performance for a seamless online experience. Bluetooth 5.2 support further enhances connectivity, enabling wireless communication with peripherals and accessories.The motherboard is designed with advanced cooling solutions, with multiple fan headers allowing precise control over temperature management. Additionally, the inclusion of RGB LED connectors adds a touch of customizable aesthetics to your PC build.MSI backs the MAG B650M MORTAR WIFI motherboard with a 3-year warranty, providing peace of mind and reliability for your system.
