| Basic Information | ||
| Chipset | AMD B550 Chipset |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors Processor socket AM4 |
|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Expansion Slots | ||
| PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIE 3.0 x16 PCI_E4 (From B550 chipset) Supports PCIe 3.0 x4 4x PCIe x1 slots PCI_E2, E3, E5 and E6 slots (From B550 chipset) Supports PCIe 2.0 X1 |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 4x memory slots | |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1x HDMI™ 2.0b port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b | |
| USB (s) | 1x USB 3.2 Gen 1 5Gbps connector (From B550 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 connectors (From B550 chipset) Supports additional 4 USB 2.0 ports |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| Supported Storage | 6x SATA 6Gb/s ports (From B550 chipset) 1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280/ 22110 storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| WARRANTY INFORMATION | ||
| Warranty | 03 Years Warranty | |

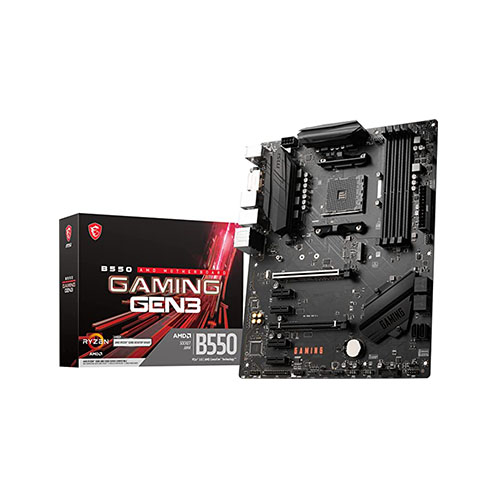

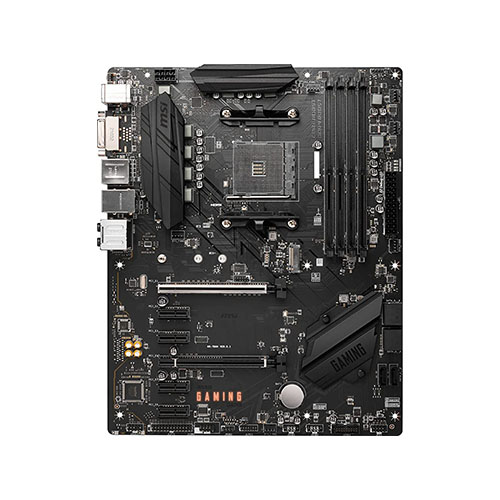

The MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard is a high-performance motherboard designed to cater to the needs of gamers and PC enthusiasts. The motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors, ensuring a seamless gaming experience.The motherboard boasts an AMD B550 Chipset and an ATX Form Factor of 12 in. x 9.6 in. (30.5 cm x 24.4 cm), which allows for a maximum capacity of up to 128GB of DDR4 RAM spread across 4 memory slots. The memory speed can range from 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC and can go up to 4400+ MHz by A-XMP OC MODE. The motherboard also supports dual-channel memory architecture, un-buffered memory, and ECC UDIMM memory (in non-ECC mode).
The MSI B550 GAMING GEN3 motherboard comes equipped with 2x PCIe x16 slots, 4x PCIe x1 slots, and 6x SATA 6Gb/s ports (from B550 chipset), ensuring high-speed data transfer and better connectivity options. The motherboard also has 1x M.2 slot (Key M) supporting PCIe 3.0 x4 and SATA 6Gb/s, with support for 2260/ 2280/ 22110 storage devices, and RAID 0, RAID 1, and RAID 10 for SATA storage devices.Furthermore, the MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard features a Realtek ALC897 Codec and 7.1-Channel High Definition Audio, ensuring high-quality sound output. The graphics are supported by 1x DVI-D port (with a maximum resolution of 1920x1200 @60Hz) and 1x HDMI 2.0b port (with a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz) that supports up to 16GB of shared memory.The MSI B550 GAMING GEN3 motherboard comes with 1x USB 3.2 Gen 1 5Gbps connector, supporting additional 2 USB 3.2 Gen 1 5Gbps ports, and 2x USB 2.0 connectors supporting additional 4 USB 2.0 ports. Additionally, the motherboard comes equipped with 1x Realtek RTL8111H LAN controller, ensuring fast and reliable network connectivity.
The MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard also comes with several special features, such as 2x 4-pin RGB LED connectors and 4x EZ Debug LED. The motherboard also includes several internal I/O ports, such as 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 4x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Serial port connector, 1x Parallel port connector, and 1x Clear CMOS jumper.
