| Basic Information | ||
| Chipset | Intel Z390 Chipset | |
| Audio | 2 x Realtek ALC1220 Codecs : - 7.1-Channel High Definition Audio - Supports S/PDIF output ESS E9018 Codec : - Supports 6.3mm Gold-plated stereo headphone out |
|
| BASIC INFORMATION | ||
| Supported CPU | Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socke | |
| Form Factor | E-ATX | |
| Memory | ||
| Slots | 4 | |
| Memory | 4 x DDR4 memory slots, support up to 128GB - Supports DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz1 - Dual channel memory architecture - Supports non-ECC, un-buffered memory - Supports Intel® Extreme Memory Profile ( |
|
| Graphics | ||
| Graphics | Supports 2-Way NVIDIA SLI Technology Supports 4-Way AMD CrossFire Technology |
|
| Connector & Ports | ||
| LAN | 2 x Killer E2500 | |
| Supported Storage | Intel Z390 Chipset : 6 x SATA 6Gb/s ports 3 x M.2 slots (Key M) - M2_1 & M2_3 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices - M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready 1 x U.2 port : - Supports PCIe 3.0 x4 NVMe storage M.2_2 slot, U.2 port and SATA ports share the bandwidth Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin ATX PCIe power connector 6 x SATA 6Gb/s connectors 3 x M.2 slots (M-Key) 1 x U.2 port 2 x USB 3.1 Gen2 Type-C ports 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 8 x 4-pin system fan connectors 1 x 3-pin Water Flow connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 2-pin Thermal Sensors connectors 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR LED connector |
|

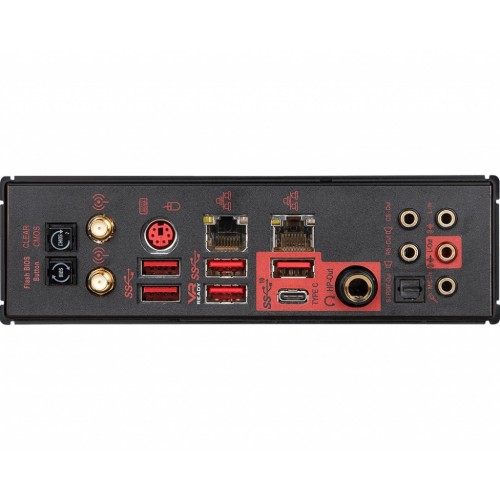

| USB Port | USB 3.1 PORTS (FRONT) : 2(Gen2, Type C), 4(Gen1, Type A) USB 3.1 PORTS (REAR) : 1(Gen2, Type C),3 (Gen2, Type A), 2(Gen1, Type A) USB 2.0 PORTS (FRONT) : 4 |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years Warranty | |

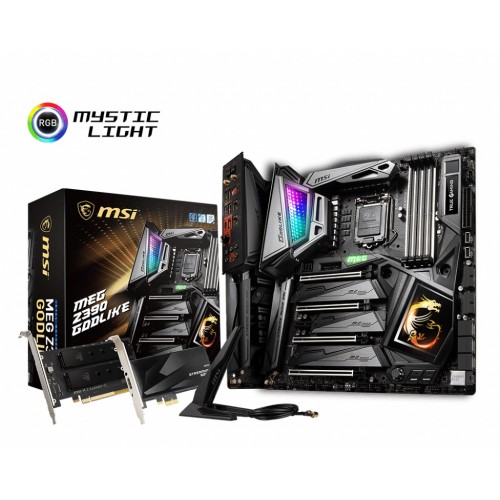

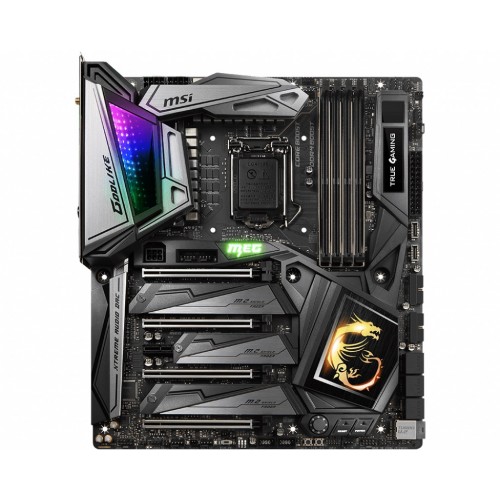

The MSI Z390 GODLIKE is a high spec ATX motherboard formed from the Intel Z390 chipset. Featuring heavy plated heat sinks and fierce looks with RGB lighting, MSI ENTHUSIAST GAMING motherboards are packed with gaming features for a refined gaming experience. That entire gaming tech is backed up by a reinforced structure and heavily tested components to ensure long-lasting, high-quality performance. Simply use a USB key to flash any BIOS within seconds using flash BIOS button all without installing a CPU, memory or graphics card.Z390 Motherboards are compatible with Intel 8th Gen 'Coffee Lake' and 9th Gen CPUs. Although these Intel Z390 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs. Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag. Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtakingly. Last but not the least, this extreme and powerful gaming motherboard comes with 3 years warranty facility.
