| BASIC Information | ||
| Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports AMD A-XMP OC Supports Dual-Controller Dual-Channel mode |
|
| Storage | M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports |
|
| Basic Information | ||
| Audio | Realtek ALC897 Codec 5.1-Channel High Definition Audio |
|
| BASIC INFORMATION | ||
| Chipset | AMD B450 Chipset | |
| Processor | ||
| CPU Socket | AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors |
|
| Case Features | ||
| Expansion Slots | 1x PCIe 3.0 x16 slot 1x PCIe 3.0 x1 slot |
|
| Key Features | ||
| Form Factor | M-ATX | |
| DISPLAY DETAILS | ||
| LED Indicators | Without Debug LED | |
| Technical Specification | ||
| Supported Operating System | Support for Windows 11 64-bit, Windows 10 64-bit | |
| Connectivity | ||
| USB | *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 |
|
| Graphics | ||
| Graphics | 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI port *HDMI port supports up to 4K 30Hz *Graphics specifications may vary between CPU types. |
|
| Connector & Ports | ||
| LAN | Realtek RTL8111H 1G LAN | |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 1x 4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS |
|
| Others | ||
| Other Features | RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Physical Specifications | ||
| Dimension | 220mm x 175mm | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

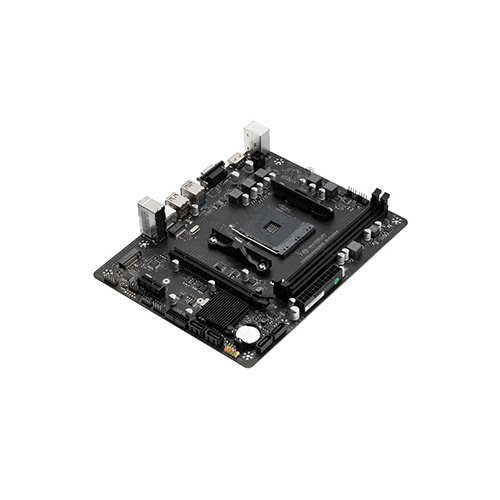

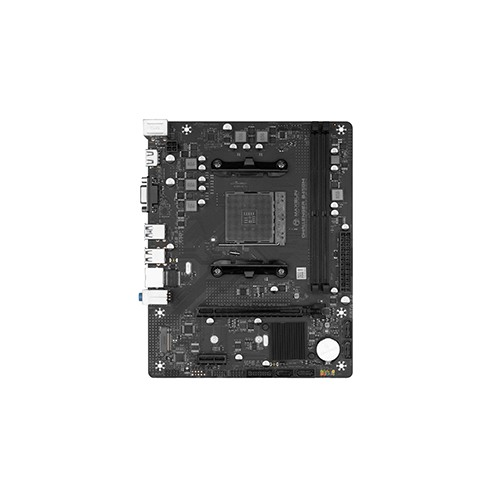

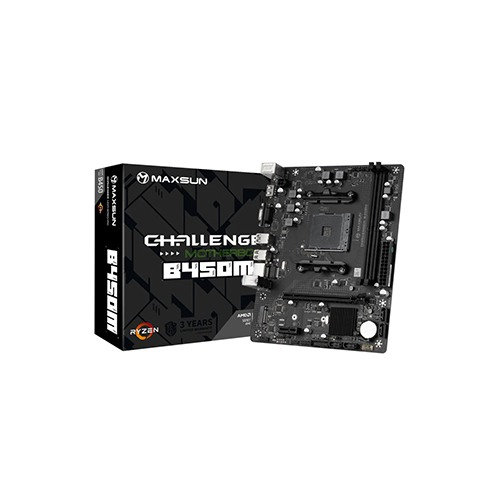

This micro-ATX motherboard features two DDR4 DIMM slots, supporting up to 32GB of RAM with speeds up to 3466 MHz (OC), ensuring smooth multitasking and improved system responsiveness. The MAXSUN Challenger B450M also includes a PCIe 3.0 x16 slot for installing a dedicated graphics card, enabling high-performance gaming and graphics-intensive tasks.
For storage, the motherboard offers an M.2 slot for NVMe SSDs, allowing for faster boot times and data transfers. It also features SATA III ports for traditional hard drives or SSDs, providing ample storage options. Connectivity is made easy with multiple USB 3.1 and USB 2.0 ports, along with HDMI and VGA outputs for display connections.
This motherboard is built with durable components, ensuring reliability and stability under heavy usage. Its compact micro-ATX form factor makes it ideal for small and efficient PC builds.
You can purchase the MAXSUN Challenger B450M AM4 M-ATX Motherboard from PC House BD, a trusted retailer in Bangladesh. Visit their store or website to order this motherboard and enjoy excellent performance at a great price.
