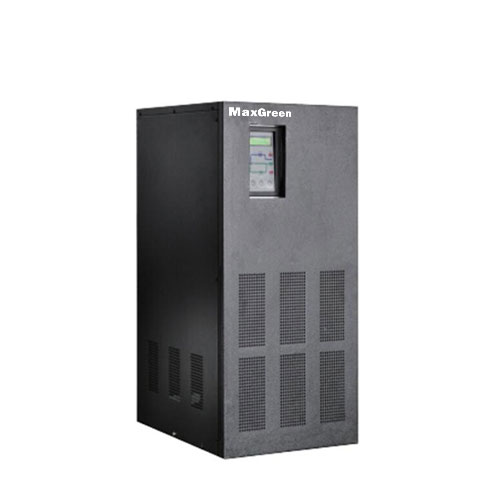

MaxGreen B6KS/L 6kVA Online UPS

MaxGreen B6KS/L 6kVA Online UPS

Price: Out Of Stock
Status: Out Of Stock
Product Code: 3826
Brand: MaxGreen
Key Features
  • Model: MaxGreen B6KS/L 6kVA
  • LCD Display
  • Capacity: 6KVA
  • Parallel function: Yes
  • Battery voltage: 192 Vdc
View More Info

Payment Options

Quantity :

Specification:

Main Feature
Capacity
6KVA
Load Capacity 110%~129% full load keep 10min
130%~150% load keep 60s
Output Voltage 165~275 Vac
Frequency (Battery Mode) 45~66 Hz Automatically select synchronization range according to grid frequency
Noise Level <60(within 1 meter)
Battery 16*9Ah 12V/External
Alarm Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Output Features
Backup Time Standard time is 10min/ Long backup time can be extended freely
Manufacture Warranty
Warranty 1 Year
Under the following conditions, the warranty would not be provided:
• UPS burning due to thunder, abnormal overload, insect entrance and others.
• If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7)
• If the product is placed in a dusty and damp place.
• In the absence of Generator connectivity Without proper battery charge, the warranty will be void.
• Battery swelling and overcharging due to the wrong system voltage setting of the UPS.

Description :

MaxGreen B6KS/L 6kVA Low-Frequency Online UPS


The MaxGreen series UPS guarantee total protection for powers ranging from 6kVA against any anomaly in the mains electricity network during their operation. The MaxGreen B6KS/L 6kVA Online UPS includes active input PFC rectifier (Power Factor Corrector) and makes use of the advantages of PWM technology with IGTBs to obtain equipment with high technology features. With On-Line Double Conversion technology, the supply voltage to loads is provided in each case via the inverter stage with galvanic isolation. Advanced PWM Technology allows a voltage and current-adjusted signal to be available at each moment in time, free of harmonics, noises, and interferences. Information on the status of the system is presented locally by means of LED signaling and an LCD screen with different menus. Information on the unit can also be managed remotely through its powerful software. The MaxGreen B6KS/L 6kVA Low-Frequency Online UPS comes with 1 year warranty.
