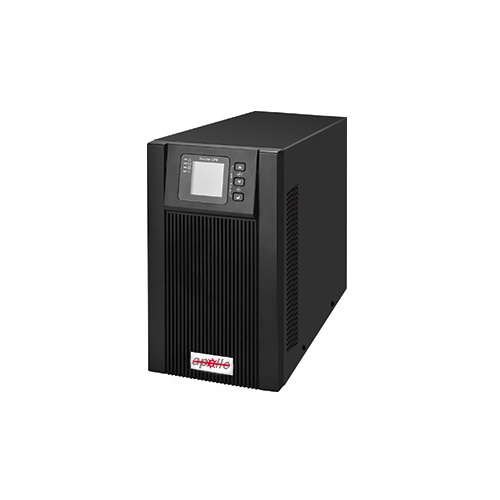

Apollo 2300HS 3KVA Standard Backup Online UPS

Apollo 2300HS 3KVA Standard Backup Online UPS

Price: 42,500৳ 44,500৳
Status: In Stock
Product Code: 3830
Key Features
  • Model: 2300HS
  • Voltage: Single Phase, 110Vac~290Vac
  • Frequency: 50Hz (60Hz on request)
  • Power Factor: > 0.98% (Full Load)
  • Voltage: 220Vac
View More Info

Payment Options

Quantity :

Specification:

Main Feature
Capacity
3.0 KVA
Load Capacity <110% load Continuous
110-125% load 12 minutes
125-150% load 10 minutes
>150% load: by pass
Input Voltage Single Phase, 110Vac ~ 290Vac
Output Voltage
220Vac
Frequency (Battery Mode) 50/ 60Hz
Noise Level
<53dB - 65dB at 1 meter distance
Battery DC Voltage: 96VDC
Backup time: 15 - 30 Minutes depending on Load
Recharge time: 5 ~ 8 Hours
Alarm
Audio Alarm: Keep 90 Seconds at a time interval of 4 Seconds
Battery Low: Auto Shutdown upon complete discharge of battery and auto turn-on upon recovery of utility power
Fault: Continuous Alarming
Input Features
Frequency 50Hz (60Hz on Request) +/- 5%
Power Factor >0.98% (Full Load)
Output Features
Voltage Range
220Vac +/- 5%
Type of Wave
Pure Sinewave THD < 3%
Backup Time
15 - 30 Minutes depending on Load
Manufacture Warranty
Warranty
1 Year
Under the following conditions, the warranty would not be provided:
• UPS burning due to thunder, abnormal overload, insect entrance and others.
• If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7)
• If the product is placed in a dusty and damp place.
• In the absence of Generator connectivity Without proper battery charge, the warranty will be void.
• Battery swelling and overcharging due to the wrong system voltage setting of the UPS.

Description :

Apollo 2300HS 3KVA Standard Backup Online UPS


The Apollo 2300HS 3kVA Online UPS comes with Single Phase input power from 110Vac to 290Vac and DSP control technology with an input power factor of >0.98% (Full Load). The Apollo series UPS are providing high-performance power supply systems with Single Phase input and Single Phase output and galvanic isolation by a high-performance inverter output transformer designed to supply high-quality power on a permanent basis. In this Online UPS advanced diagnostics and unit information allow users to monitor system parameters and alarms, check the status of the battery, and provide access to the history of events through the system software or multi-language screen. This new Apollo series Online UPS features online UPS double conversion, Single Phase, input/ Single Phase output, DSP control technology, Galvanic insulation by output transformer, Reduced harmonic distortion, RFI filter, and Acoustic and luminous signaling. This UPS Reduced harmonic distortion of the output signal. This Online UPS also comes with High efficiency, Output power factor of 0.8 ~1 (lagging), and Software included for System Monitoring. In this online UPS, the Extended battery options are available. The Apollo 2300HS 3KVA Standard Backup Online UPS comes with 1 Year Warranty
