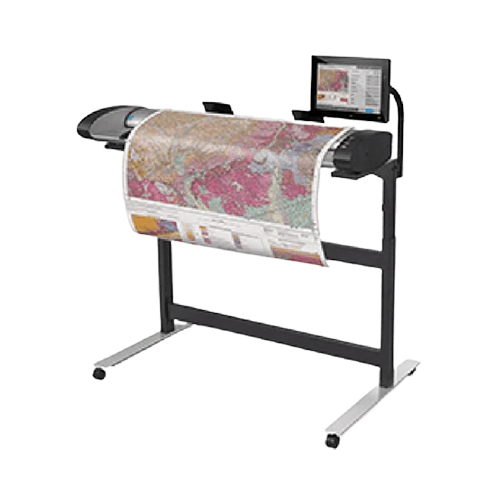

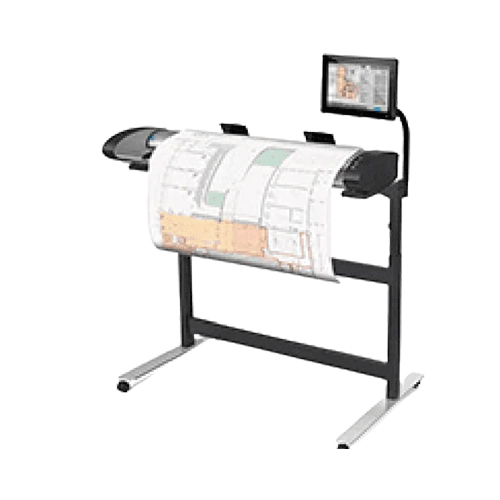

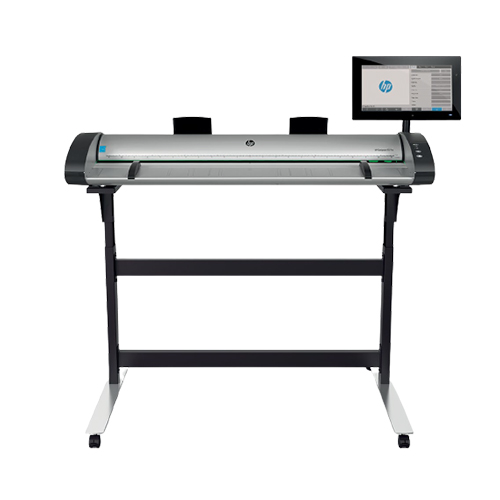

HP Designjet SD 44 INCH Large Format CIS Scanner

HP Designjet SD Scanner SPECIFICATION

Scan And Copy

Scan Speed: Color: 15 Cm/Sec (6 In/Sec), Grayscale: 33 Cm/Sec (13 In/Sec)

Enhanced Resolution: 9600 Dpi

Optical Resolution: 1200 Dpi

Imaging Technology: CIS Scanning Technology

Accuracy: +/- 0.1% +/- 1 Pixel

Data Capture (Color/Mono): 48-Bit/16-Bit

Maximum Scan Width: 1118 Mm (44 In)

Supported File Formats: PDF, TIFF, JPEG, JPEG2000, DWF, Multi-Page PDF Generation

Scan To: File, Email, USB, HDD, Network Folder, FTP, Print

Batch: Available With Scan And Copy

Preview:  Scan, Copy And Print After Previewing The Original In The Advanced Touchscreen Controller

Size Detection: Automatic Width Detection. Manual Size Selection Also Possible

Applications

Line Drawings

Maps

Office Graphics

Posters

Presentations

Media

Handling:  Straight-Through Scan Paper Path For Sheet And Cardboard Originals. Face-Up, Front Entry, Rear Exit, Rewind To Front, Use Document Return Guide For Front-Return

Types:  Non-Abrasive Paper, Sepia, Blueprints, Plastic, Plastic Laminate, Foam Board, Cardboard, Newspaper

Size: Up To 1168 Mm (46 In) Wide

Thickness: Up To 2 Mm (0.08 In)

Processor

Intel Core I7

Memory

4 GB9 Memory

500 GB10 Hard Disk

Connectivity

Interfaces: Dual Gigabit Ethernet (1000Base-T), Hi-Speed USB 3.0 Certified

Drivers (Included): Windows Drivers For Compatible HP PageWide XL And HP DesignJet Printers

User Interface

15.6-Inch (396-Mm) Large Touchscreen To Preview And Enhance Images

Languages

Chinese (Simplified), Chinese (Traditional), Dutch, English, French, German, Italian, Japanese, Korean, Portuguese, Spanish

Dimensions (W X D X H)

Scanner:  60 X 37 X 65 In (1530 X 930 X 1660 Mm)

Shipping: 1500 X 680 X 710 Mm (59 X 27 X 28 In)

Weight

Scanner: 60 Kg (132 Lb)

Shipping: 85 Kg (187 Lb)

Power

Consumption: 47 Watts (Scanning); 40 Watts (Ready); <3 Watts (Sleep)

Requirements : Input Voltage (Auto RangVing): 100 To 240 VAC (+/- 10%), 50/60 Hz, 5 A Max
