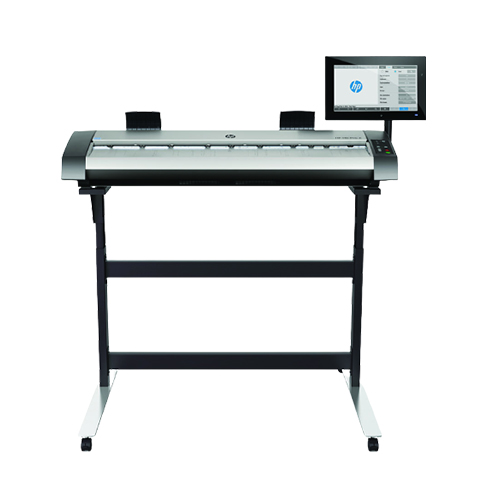

HP Designjet HD 42 INCH Large Format CCD Scanner

HP Designjet HD 42 INCH SPECIFICATIONS

Scan And Copy

Scan Speed: Colour: Up To 33 Cm/Sec, Greyscale: Up To 33 Cm/Sec

Resolution: 1200 Dpi

Technology: CCD Scanning Technology And LED-Based Illumination System

Accuracy: 0.1% ±1 Pixel

Data Capture (Color/Mono): 48-Bit/16-Bit

Scan Format: PDF, PDF/A, TIFF, JPEG, JPEG2000, DWF, CALS (Black And White), Multi-Page PDF Generation

Scan Destinations: File, Email, USB, HDD, Network Folder, FTP, Print

Settings:  Type Of Original, Image Crop And Align Preview, Lightness, Saturation And RGB Controls, White Point And Black Point Adjust, Sharpen/Blur, Mirror Copy, Enlarge/Reduce, Paneling, Tiling, Nesting, Accounting, Batch, Multipage PDF Generation, Invert, Collate Copy With Reprint

Maximum Scan Width: 1067 Mm

Applications

Digital Fine Art; Graphics Design; Line Drawings; Maps; Orthophotos; Photos; Renderings; Presentations

Media

Handling:  Straight-Through Scan Paper Path For Sheet And Cardboard Originals, Adjustable Paper Pressure For Very Thin Media. Face-Down, Front Entry, Rear Exit, Rewind To Front, Use Document Return Guide For Front-Return. Automatic High Adjustment Of Scanner Bridge For Thick Originals Up To 15 Mm (0.6 In) Thickness.

Types: Non-Abrasive Paper, Vellum, Mylar, Sepia, Blueprints, Plastic, Film, Plastic Laminate, Foam Board, Cardboard, Newspaper, Tracing Paper. Varying Condition Documents: Old, Delicate, Folded, Creased, Crumpled, Damaged Originals (No Plywood, Stone Plates, Metal Plates Or Abrasive, Dirty, Rough, Sharp-Edged, Metal Clamped, Or Burned Surfaces Or Transparencies)

Maximum Media Width 1118 Mm

Maximum Media Thickness 15 Mm

Panel PC

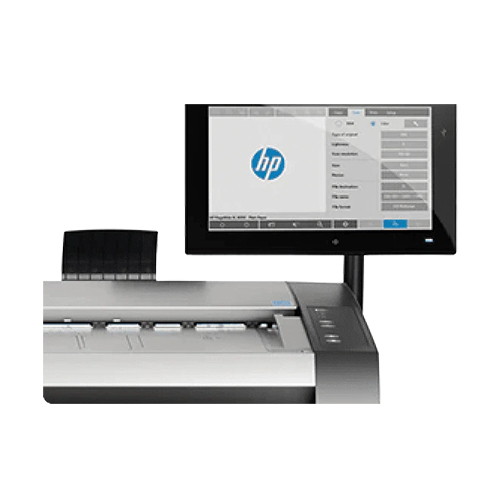

User Interface: 396 Mm (15.6 Inch) Large Touchscreen To Preview And Enhance Images

Embedded Operating System: Windows 10

Processor:  Intel Core I7

Memory:  4 GB

Hard Disk: 500 GB

Connectivity

Interfaces Dual Gigabit Ethernet (1000Base-T), SuperSpeed USB 3.0

Drivers Windows Drivers For Compatible HP PageWide XL And HP DesignJet Printers

Dimensions (W X D X H) And Weight

Scanner 1530 X 930 X 1660 Mm

Shipping 1910 X 680 X 800 Mm

Scanner 71 Kg

Shipping 118 Kg

Power

Consumption 130 W (Scanning), 39 W (Ready), < 1 W (Sleep)

Requirements Input Voltage (Auto-Ranging): 100-240 V (±10%), 50/60 Hz, 5 A Max

Scan everything from technical documents to graphics content—even damaged originals or thick media up to 0.6-in (15-mm)—in HD with CCD technology. Produce incredibly accurate and high-quality scans with 1200 dpi optical resolution up to 42 inches (1067-mm) wide at top speed.

Features

Up To 42-In (1067-Mm) Width

6-In (150-Mm)/Sec Color 13-In (330-Mm)/Sec Grayscale

Integrates With HP PageWide XL And HP DesignJet Printers
