| Basic Information | ||
| Chipset | Intel Z590 Express Chipset | |
| Audio | Realtek ALC1220-VB codec + ESS ES9018K2M DAC+TI OPA1622 operational amplifier Support for DTS: X Ultra High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/ PDIF Out |
|
| CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors L3 cache varies with CPU |
|
| BASIC INFORMATION | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | E-ATX Form Factor; 30.5cm x 27cm | |
| Memory | ||
| Memory | Type: DDR4 Slots: 4 x DIMM Supported Memory: 11th Generation Intel Core i9/ i7/ i5 processors: 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: 128 GB (32 GB single DIMM capacity) |
|
| Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2P_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor + Intel Thunderbolt 4 Controller: 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880 @60 Hz with 24 bpp (via single display output) Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| LAN | 1 x Aquantia 10GbE LAN chip (10 Gbit/ 5 Gbit/ 2.5 Gbit/ 1 Gbit/ 100 Mbit) (LAN1) 1 x Intel 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit) (LAN2) |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 6 x system fan headers 2 x system fan/water cooling pump headers 1 x noise detection header 2 x integrated extension cable headers for addressable and RGB LED strips 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 headers 2 x temperature sensor headers 1 x power button 1 x reset button 1 x OC Ignition button 2 x BIOS switches Voltage Measurement Points |
|

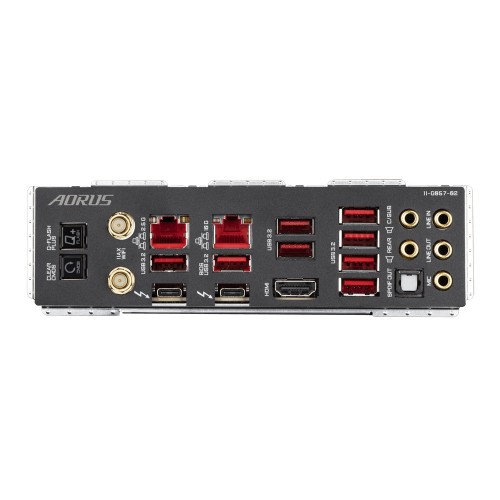

| USB Port | Chipset + Intel Thunderbolt 4 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 2 Hubs: 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset + USB 2.0 Hubs: 4 x USB 2.0/ 1.1 ports available through the internal USB headers (with the included front USB header extension cable) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

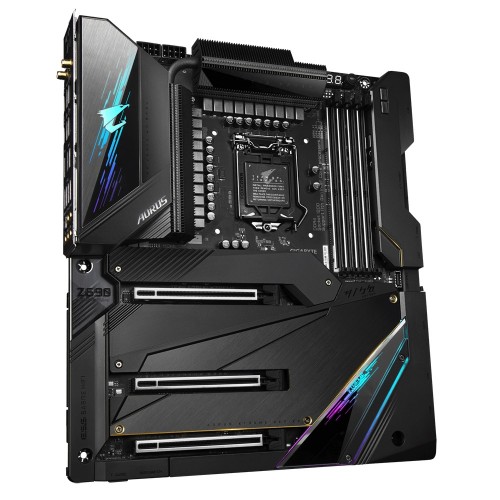

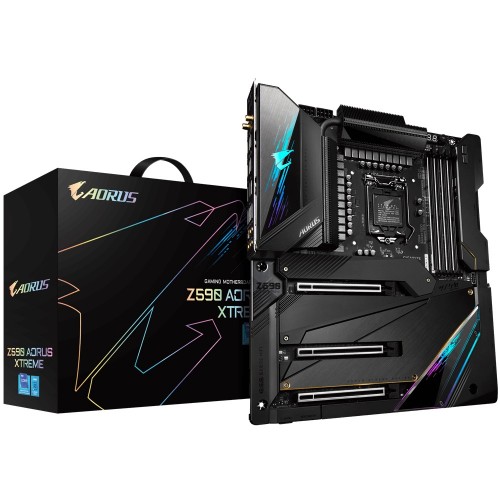

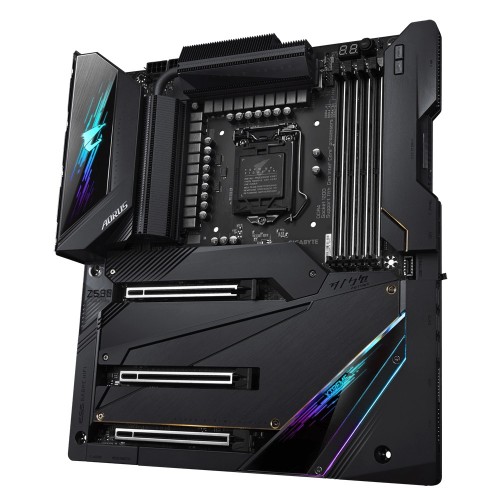

To unleash the full potential of the new Intel 11th Gen CPU, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, the Gigabyte Z590 Aorus Xtreme Wi-Fi Intel 10th and 11th Gen E-ATX Motherboard is a true beast among motherboards. The uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming. A Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology. Gigabyte Z590 Aorus Xtreme 11th Gen Motherboard provides all next generation network, storage, and WIFI connectivity to keep you up to speed. The motherboard provides full lighting effect and customization settings with outstanding aesthetics, enable enthusiasts to build gaming PC differently. GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z590 AORUS XTREME and reinforce every slot to make each of them solid and durable.
