| Key Feature | ||
| Certification | 80 PLUS Gold |
|
| CPU | CPU/EPS 4+4 Pin x 2 : 600mm*2 |
|
| Efficiency (Approx.) | 90% at typical load |
|
| Fan Size | 120mm Hydraulic Bearing ( HYB ) fan |
|
| Frequency | 60-50 Hz |
|
| Modular Type | Fully Modular |
|
| Floppy | 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
|
| Output | ||
| Voltage | 100-240 Vac (full range) |
|

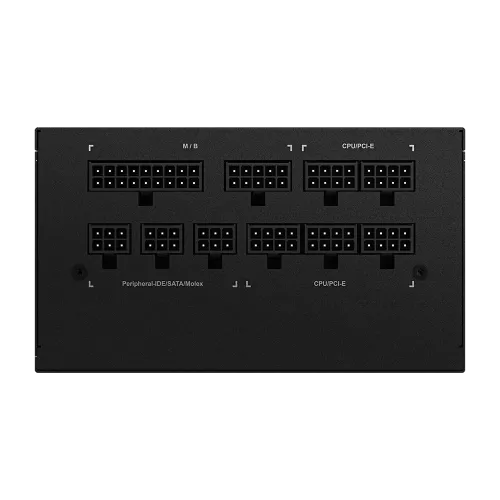

| Connectors | ||
| Main Power | ATX/MB 20+4 Pin x 1 : 610mm*1 |
|
| PCI-E | PCI-e 6+2 Pin x 4 : 600mm+150mm*2 |
|
| SATA | SATA x 8 : 600mm+150mm+150mm+150mm*2 |
|
| Input | ||
| Current | 15-6.5A |
|
| WARRANTY INFORMATION | ||
| Warranty | 10-Year | |

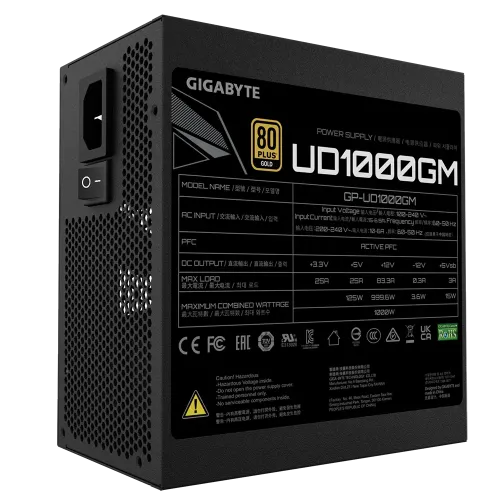

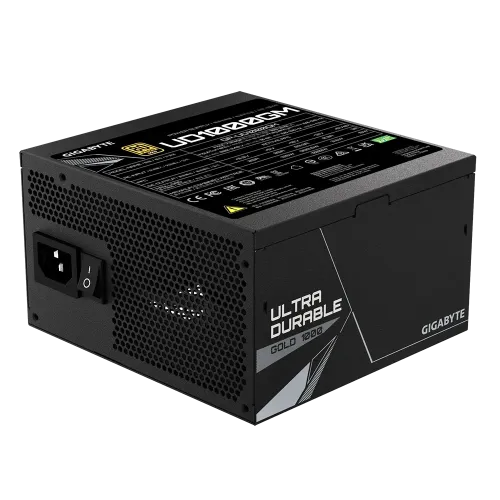

The GIGABYTE UD1000GM 1000W Power supply features a wide range of high-quality materials and designs. Ultra Durable has high-quality Japanese primary capacitors, an improved thermal solution, a 120mm smart hydraulic bearing (HYB) fan, and six circuit safety designs. It provides users with a high-quality, reliable power source that may be utilized for an extended period. The primary capacitors are made of high-quality Japanese capacitors to ensure efficient performance and long-term durability. In comparison to the standard thermal solution, we increased the heatsink size by 200% or more and optimized the airflow. The heat dissipation performance is improved by more than 10%, extending the component's service life. When the system is idle or under a low load (less than 20% load), the fan speed is automatically regulated and ceases. The hydraulic bearing fan has a longer and more reliable life cycle. The GIGABYTE UD1000GM 1000W Ultra Durable 80+ Gold Full Modular Power Supply comes with a 10-Year Warranty.
