| Key Features | ||
| Continuous Power | 1000W | |
| Efficiency (Approx.) | Over 90% at typical load (230V EU) | |
| Certification | 80 PLUS Platinum | |
| Fan Size | 120mm Fluid Dynamic Bearing (FDB) fan | |
| Others | ATX 3.0, PCIe 5.0, 105°C Japanese capacitors, Smart Fan Stop, OPP/OVP/OTP/OCP/SCP/UVP protections | |
| Input | ||
| Voltage | 100–240V AC | |
| Frequency Range | 47–63Hz | |
| Current | 11–13A | |
| Output | ||
| Modular Type | Full Modular | |
| Total Power | 1000W | |
| AC Input | 100–240V AC, 11–13A, 47–63Hz | |
| Connector | ||
| Main Power | ATX/MB 20+4 Pin × 1 : 600mm × 1 | |
| CPU | CPU/EPS 4+4 Pin × 2 : 650mm + 120mm × 1 | |
| PCI-E | PCI-E 6+2 Pin × 4 : 600mm × 2 PCIe 12VHPWR (12+4 pin) × 1 : 600mm × 1 |
|
| SATA | SATA × 3 + 4 Pin Peripheral × 1 : 500mm + 120mm + 120mm + 120mm × 1 SATA × 2 + 4 Pin Peripheral × 2 : 500mm + 120mm + 120mm + 120mm × 1 |
|
| Molex | Included in above SATA/peripheral cable sets | |
| Warranty Information | ||
| Warranty | 10 Years | |

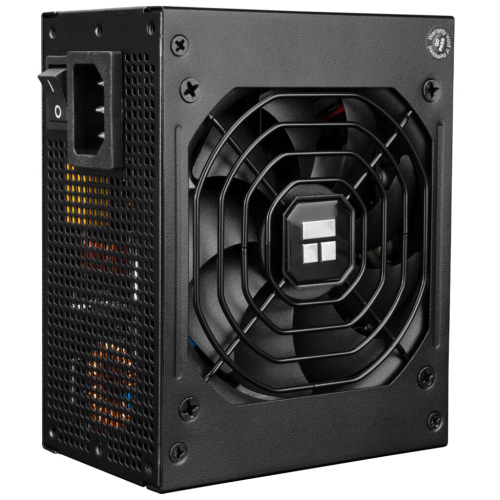

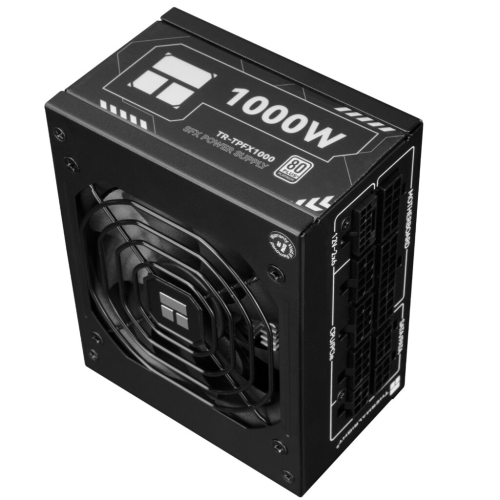

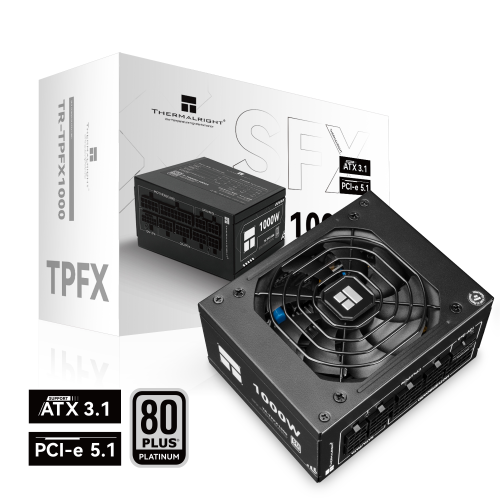

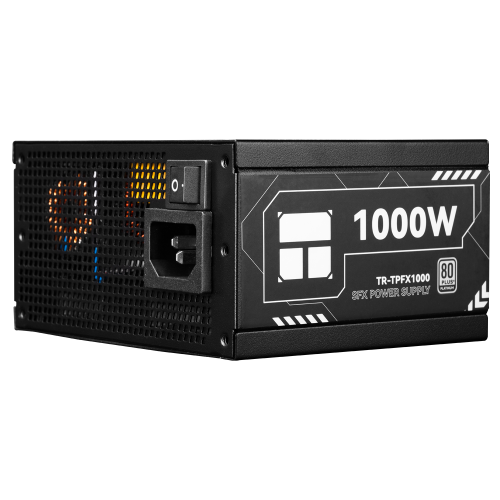

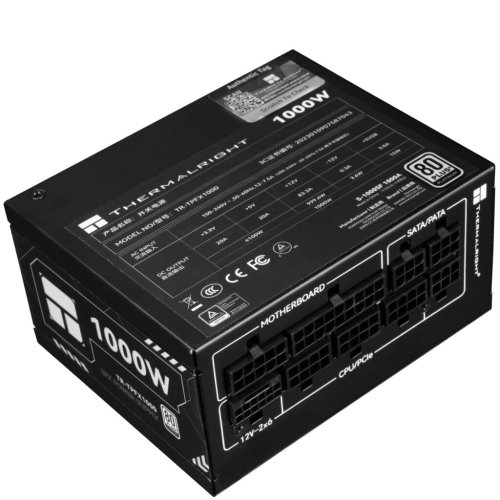

The Thermalright TR-TP1000 is a premium 1000W ATX 3.0 PCIe 5.0 power supply designed to deliver reliable, high-efficiency performance for modern gaming PCs and professional workstations. With its 80 Plus Platinum certification, it ensures maximum energy efficiency, reducing power loss and heat generation while maintaining exceptional stability. This full modular PSU allows you to connect only the cables you need, ensuring a cleaner build and better airflow inside your case.
High Efficiency with 80 Plus Platinum Certification
Enjoy superior power delivery with over 90% efficiency under typical loads. The 80 Plus Platinum rating means reduced energy waste, lower electricity bills, and optimal performance even under heavy gaming or rendering workloads. Whether you are a competitive gamer or a creative professional, this PSU guarantees consistent and clean power.
Massive 1000W Power Output
With 1000 watts of total output, the Thermalright TR-TP1000 can easily power high-end gaming rigs with the latest graphics cards, multiple storage devices, and power-hungry processors. It is fully compatible with modern hardware, including NVIDIA RTX 40 series and AMD Radeon RX 7000 series GPUs.
Full Modular Cable Design
The full modular setup allows you to attach only the necessary cables, improving cable management and airflow inside your PC case. This not only makes your build look cleaner but also improves cooling efficiency and reduces clutter.
ATX 3.0 & PCIe 5.0 Ready
Future-proof your system with support for ATX 3.0 and PCIe 5.0 standards, ensuring compatibility with the latest and upcoming GPUs. The included PCIe 5.0 12VHPWR cable delivers stable power to next-generation graphics cards without the need for adapters.
Advanced Protection Features
For maximum safety and component longevity, this PSU includes multiple protection systems such as Over Power Protection (OPP), Over Voltage Protection (OVP), Over Temperature Protection (OTP), Over Current Protection (OCP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP).
Built to Last
Constructed with high-quality Japanese capacitors and premium components, the Thermalright TR-TP1000 is designed for long-term reliability. Its robust build quality ensures stable operation under extreme loads, making it ideal for professional and gaming environments.
