| BASIC INFORMATION | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Memory | ||
| Memory | Type: Dual-Channel Architecture Slots: 4 x DDR4 memory slots Supported Memory: 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: support up to 128GB |
|
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Support PCIe 3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
|
| Graphics | ||
| Graphics | Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module: Intel Wi-Fi 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x temperature sensor headers 1 x Clear CMOS jumper 1 x Thunderbolt header |
|

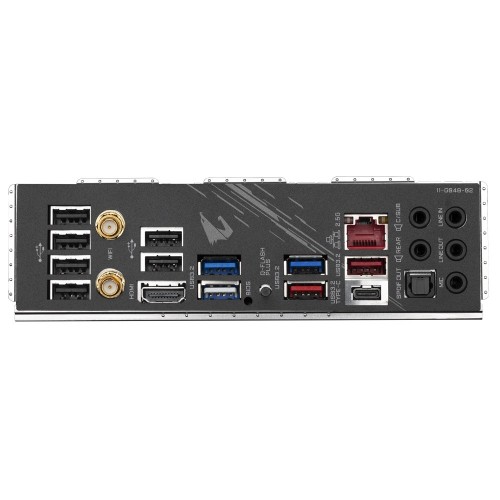

| USB Port | CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

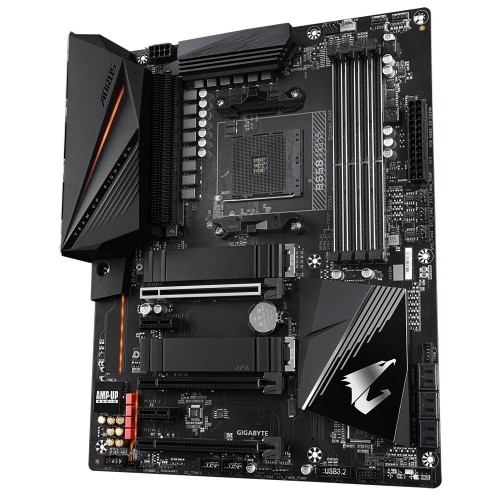

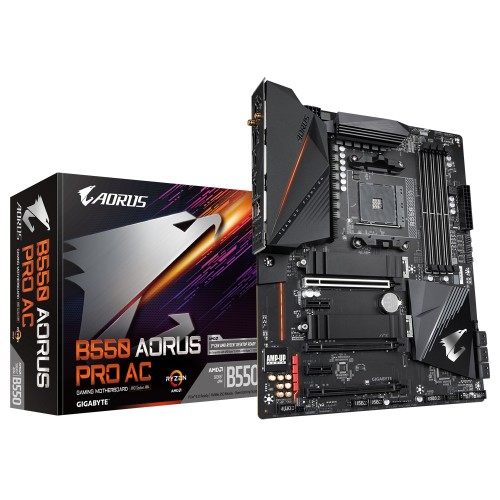

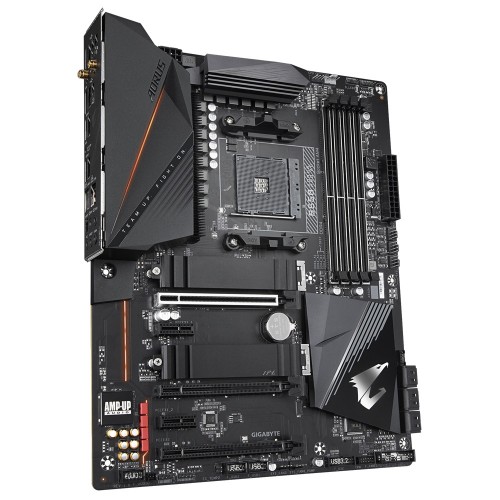

The Gigabyte B550 AORUS PRO AC Wi-Fi AM4 ATX Motherboard is designed around the AMD B550 chipset, supporting 3rd Gen AMD Ryzen processors with an AM4 socket. You can also connect wirelessly with Wi-Fi 5 (802.11ac). It has four memory slots, supporting up to 128GB of dual-channel RAM, which can run at up to 5200 MHz (O.C.). This motherboard features an ATX form factor, which fits in mid- and full-tower cases. Other integrated features include Realtek 2.5GbE Ethernet, Realtek 7.1-channel audio support, RGB Fusion 2.0 support, and Gigabyte Q-Flash Plus.
GIGABYTE B550 AORUS PRO AC AMD Motherboard pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
GIGABYTE B550 AORUS PRO AC AMD Motherboard With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 M.2 connectors, this motherboard allows you to experience NVMe mode or SATA mode connectivity. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors support RAID 0/1/10 modes. GIGABYTE B550 AORUS PRO AC AMD Motherboard Using Realtek LAN provides high performance for gamers and features automatic bandwidth allocation to ensure highest network priority. GIGABYTE B550 AORUS PRO AC AMD Motherboard HDMI 2.1 offers 48 Gb/s of bandwidth, which unlocks the ability to transfer multiple video streams as well as a native cinematic 21:9 aspect ratio, and Full HDR and HDCP 2.3 support. HDMI 2.1 is also backward compatible with HDMI 2.0/1.4. B550 AORUS PRO AC AMD Motherboard using Smart Fan 5 keeps your system cool, allowing you to interchange the fan headers to reflect different thermal sensors at different locations on the motherboard. Smart Fan 5 supports both PWM and Voltage mode fans, making this motherboard more liquid-cooling friendly. GIGABYTE B550 AORUS PRO AC AMD Motherboard RGB Fusion 2.0 gives you full control of onboard RGB and external RGB devices and lights. Already feature filled with customizable colors and patterns, RGB Fusion 2.0 also has addressable LED support. Update the BIOS easily without installing the CPU, memory, and graphics card with Gigabyte Q-FLASH PLUS. You don’t have to install components or enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file on the USB flash drive, then press the dedicated Q-FLASH PLUS button.
