| Key Feature | ||
| Certification | 80 PLUS GOLD Certified | |
| CPU | CPU(4+4)Pin x 2 | |
| Efficiency (Approx.) | ≥90% Under Typical Load(50% Loading) | |
| Fan Size | Fan Size: 120mm Fan Bearing: Hypro Bearing |
|
| Modular Type | Non-Modular | |
| Molex | 4Pin Peripheral x 1 | |
| Output | ||
| DC Output | 750W | |
| Connectors | ||
| Main Power | Main Power Connector (20+4)Pin x 1 | |
| PCI-E | PCI-E(6+2)Pin x 1 | |
| SATA | SATA x 4 | |
| WARRANTY INFORMATION | ||
| Warranty | 10 years | |

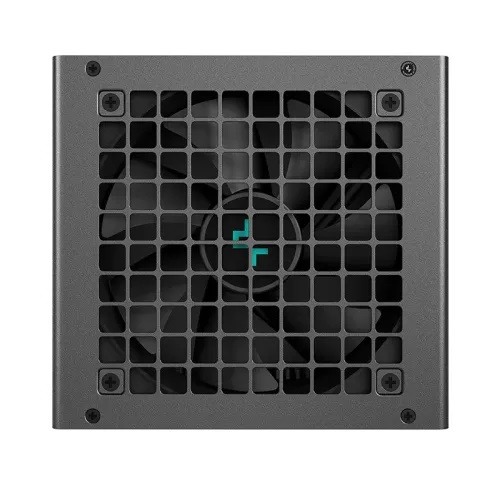

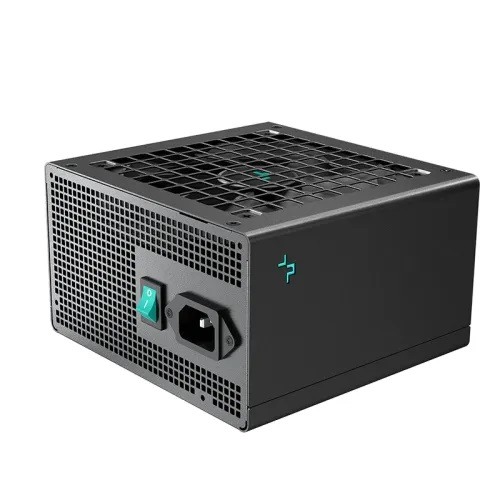

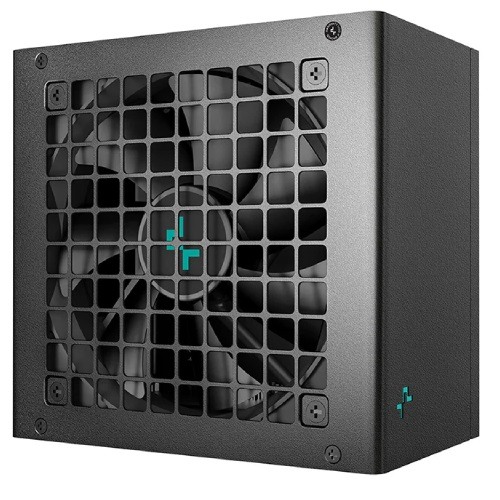

The DeepCool PN750D is an advanced 750W non-modular power supply unit (PSU) designed to meet the latest Intel ATX 3.1 and PCIe 5.1 standards, making it ideal for future-proofing modern PC builds. With three PCIe ports, two EPS connectors, and a specialized 12V-2x6 connector, this PSU can supply steady and dependable power to a variety of high-power components. By supplying up to three times the Total Graphics Power (TGP) for brief intervals of 0.1 milliseconds, its architecture ensures that the system will remain stable even in the face of unexpected power demands. The PN750D is known for its efficiency; under 90% of usual loads, it maintains a high level of energy efficiency and has earned an 80 Plus Gold certification. It has also received a Gold rating from Cybernetics, further highlighting its superior energy efficiency and noise levels performance. The PSU's reliability is enhanced by using a premium main electrolytic capacitor and advanced technologies such as active Power Factor Correction (PFC), full-bridge Soft Resonant Control (SRC) LLC, and a DC-to-DC topology. These features ensure a hold-up time of at least 16 milliseconds under an 80% load, providing consistent power delivery even during fluctuations. The PN750D includes a 12V-2x6 cable made from high-grade 16AWG copper core and sleeved for added durability, capable of handling up to 600W, making it well-suited for modern GPUs and other high-power components. It also features a dynamic 120mm hydro-bearing fan that adjusts its speed according to the PSU's cooling needs, ensuring quiet and efficient operation. Additionally, the PSU comes with a comprehensive set of protections, including Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), Under Voltage Protection (UVP), No Load Operation (NLO), and Surge and Inrush Protection (SIP), providing users with peace of mind regarding the safety and stability of their system. The DeepCool PN750D is a reliable, efficient, and robust power supply, making it a top choice for powering high-performance PC systems now and in the future.
