| Key Features | ||
| Data Rate | 5 GHz Wi-Fi Speed: 2882 Mbps 2.4 GHz Wi-Fi Speed: 688 Mbps |
|
| Antenna | Wi-Fi Antennas: 4× Internal 5 GHz Antenna Gain Max: 5.5dBi 2.4 GHz Antenna Gain Max: 5.4dBi |
|
| Button | WPS Button, Reset Button | |
| Frequency | 5 GHz, 2.4 GHz | |
| Network Standard | QoS: Per-User Rate Limiting DHCP: - Address Reservation - DHCP Client List - Server IP Versions: IPv4/IPv6 IPv6 Protocols: - Relay - Dynamic (SLAAC/DHCPv6) - Static (Fixed IP) - Passthrough - 464XLAT - MAP-E - DS-Lite IPTV/VLAN: - Bridge - Tag VLAN - VoIP VLAN - IPTV VLAN TTL Customization: - Extend - Spoof - Custom IGMP: - IGMP Proxy - IGMP Snooping Forwarding: - Port Forwarding - Port Triggering - UPnP - DMZ Firewall: - SPI Firewall - DoS Protection - Block PING Application Layer Gateway: - IPSec Passthrough - L2TP Passthrough - PPTP Passthrough - FTP Passthrough - TFTP Passthrough - H323 Passthrough - SIP Passthrough - RTSP Passthrough |
|
| Ports | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports |
|
| Interface | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports Uplink Ethernet Ports: 1-Pack: 57×56×26 cm 22.44×22.05×10.24 inches 2-Pack: 55×54.5×35.3 cm 21.65×21.46×13.9 inches 3-Pack: 53.6×40×28.7 cm 21.1×15.75×11.3 inches LED: - System - Speed/Link/ACT of Ethernet Port Physical Buttons: - WPS Button - Reset Button Power Input: DC Jack |
|
| Wireless | Wi-Fi Standards: Wi-Fi 7 Max Wi-Fi Modulation: 4K-QAM Wi-Fi Efficiency: - MLO - MRU - 4Puncturing - OFDMA - MU-MIMO - BSS Color Max Capacity: 512 Recommended Client Upper Limit: 200 Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True |
|
| Others | Coverage Up to 2100 Sq ft Processor: CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7 Memory/Storage Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 512 MB (4 Gbit) DDR3L Operation Modes: - Wi-Fi Router - Access Point - Range Extender - WISP - Client Mesh: Cudy Mesh Mesh Backhaul: - Wireless Backhaul - Wired Backhaul Multi-Band Backhaul: True WAN Mode: - DHCP - Static IP - PPPOE - PPTP - L2TP Internet Failover Sequence: - WAN - WISP System: LED Control: True Local Control Method: - Config Web Page - App Control Remote Control Method: - Config Page via HTTPS - App Control - TR069/TR098/TR111/TR143/TR181 Firmware Upgrade: - Local Update - App (Over the Air) - Online Update Reliability: - Timed Reboot - Backup and Restore Diagnostic Tools: - Diagnosis - Ping - Traceroute - NSLookup - System Log Languages: - English - Bengali - Catalan - Czech - German - Greek - Spanish - French - Hebrew - Croatian - Hungarian - Italian - Japanese - Khmer - Korean - Dutch - Norwegian - Polish - Portuguese - Romanian - Russian - Slovak - Swedish - Thai - Turkish - Ukrainian - Vietnamese - Simplified Chinese - Traditional Chinese Utilities: VPN Server: - WireGuard - OpenVPN - IPsec - Zerotier - PPTP - L2TP VPN Client: - WireGuard - OpenVPN - IPsec - Zerotier - PPTP - L2TP DNS Options: - DNS over TLS - Manual DNS - Rebind Protection - Override Clients' DNS DNS over TLS Providers: - Cloudflare - Quad9 - Custom Wake on LAN: True Online Detection: True Reliability Environment: - Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) - Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) - Humidity: 10% ~ 90% non-condensing - Storage Humidity: 5% ~ 95% non-condensing Parental Controls: URL Blacklist, Time Schedule, Profiles, Client Management Cudy Mesh, VPN Client, Cudy App, Cloud Control |
|
| Power Source | ||
| Power Mode | Power Methods: DC DC Input: 12V 1A Power Adapter: - Input: 100 ~ 240 V, 50/60 Hz AC - Output: 12V 1A DC Max Power Consumption (W): 9W |
|
| Physical Dimension | ||
| Dimension | Φ110×154.5 mm Φ4.33×6.08 inches |
|
| Manufacturer warranty | ||
| warranty | 1 year | |

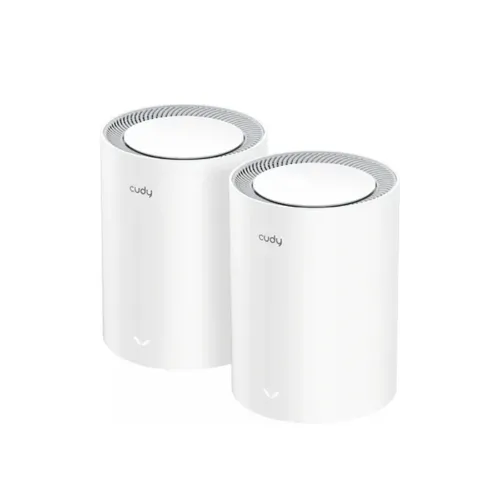

The Cudy M3600 BE3600 is a next-generation mesh system that brings the power of Wi-Fi 7 (802.11be) to large homes and high-density environments. This 2-pack configuration is designed to provide ultra-fast, ultra-low latency coverage across approximately 3,900 to 4,500 square feet, effectively eliminating dead zones even in complex multi-story layouts. By adopting the latest wireless standard, the M3600 offers roughly 1.5x the speed and significantly higher efficiency compared to previous Wi-Fi 6 models.
The M3600 delivers a massive aggregate throughput of 3.6 Gbps. It allocates 2882 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band. Key Wi-Fi 7 innovations like 4K-QAM and Multi-Link Operation (MLO) allow devices to transmit data across both bands simultaneously, ensuring that 8K streaming, VR gaming, and massive file downloads remain lag-free even when the network is under heavy load.
Processing Power: Driven by a 2.0 GHz Quad-Core CPU and 512 MB of DDR3L RAM, the system comfortably manages up to 200 connected devices, making it perfect for modern smart homes.
Seamless Roaming: Cudy Mesh technology creates a unified network with a single SSID. Advanced Beamforming and BSS Color technology minimize signal interference from neighboring networks, focusing the signal directly on your devices.
Versatile Connectivity: Each node features three Gigabit Ethernet ports (1 WAN, 2 LAN), providing flexible options for high-speed wired backhaul or connecting stationary hardware like gaming consoles and NAS drives.
Security is handled by the latest WPA3 encryption, and the system includes a robust VPN Client/Server suite (supporting WireGuard, OpenVPN, and Zerotier). Network management is simplified through the Cudy App, allowing users to monitor traffic, set parental controls, and manage guest networks from anywhere.
