| Key Features | ||
| Data Rate | 5 GHz Wi-Fi Speed: 1201 Mbps 2.4 GHz Wi-Fi Speed: 300 Mbps |
|
| Antenna | Wi-Fi Antennas: 2× Internal 5 GHz Antenna Gain Max: 5.56dBi 2.4 GHz Antenna Gain Max: 4.41dBi |
|
| Button | WPS Button, Reset Button | |
| Frequency | 5 GHz, 2.4 GHz | |
| Network Standard | QoS: Per-User Rate Limiting DHCP: - Address Reservation - DHCP Client List - Server IP Versions: IPv4/IPv6 IPv6 Protocols: - Relay - Dynamic (SLAAC/DHCPv6) - Static (Fixed IP) - Passthrough - 464XLAT - MAP-E - DS-Lite IPTV/VLAN: - Bridge - Tag VLAN - VoIP VLAN - IPTV VLAN IGMP: - IGMP Proxy - IGMP Snooping Forwarding: - Port Forwarding - UPnP - DMZ Firewall: - SPI Firewall - Block PING |
|
| Ports | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports |
|
| Interface | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports Uplink Ethernet Ports: 1-Pack: 57×56×26 cm 22.44×22.05×10.24 inches LED: System Physical Buttons: - WPS Button - Reset Button Power Input: DC Jack |
|
| Wireless | Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAM Wi-Fi Efficiency: Beamforming Max Capacity: 128 Recommended Client Upper Limit: 60 Max Wi-Fi Channel Width: 80 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True |
|
| Others | Coverage: Up to 4500 square feet Processor: 1 GHz Single-Core CPU Memory/Storage Flash/ROM: 16 MB (128 Mbit) NOR DDR/RAM: 128 MB (1 Gbit) DDR3 System: LED Control: True Local Control Method: - Config Web Page - App Control Remote Control Method: - Config Page via HTTPS - App Control - TR069/TR098/TR111/TR143/TR181 Firmware Upgrade: - Local Update - App (Over the Air) - Online Update Reliability: - Timed Reboot - Backup and Restore Diagnostic Tools: - Diagnosis - Ping - Traceroute - NSLookup - System Log Languages: - English - Portuguese - Russian - Spanish - Ukrainian - French - Simplified Chinese Utilities: VPN Client: - PPTP - L2TP - Wireguard DNS Options: - Manual DNS - Rebind Protection - Override Clients' DNS Wake on LAN: True Online Detection: True Parental Controls: URL Blacklist, Time Schedule, Profiles, Client Management Cudy Mesh, VPN Client, Cudy App, Cloud Control |
|
| Power Source | ||
| Power Mode | Power Methods: DC DC Input: 12V 1A Power Adapter: - Input: 100 ~ 240 V, 50/60 Hz AC - Output: 12V 1A DC Max Power Consumption (W): 10W |
|
| Physical Dimension | ||
| Dimension | 110×154.5 mm 4.33×6.08 inches |
|
| Manufacturer warranty | ||
| warranty | 1 year | |

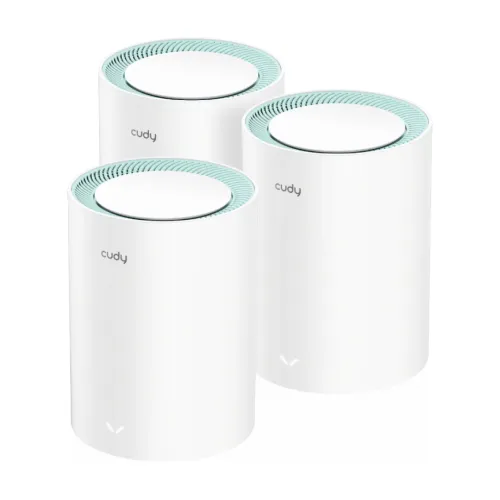

The Cudy M1500 AX1500 (3-Pack) is a comprehensive whole-home mesh solution engineered to provide ultra-fast Wi-Fi 6 coverage across expansive environments. By utilizing three interconnected nodes, this system blankets areas up to 4,500 square feet, making it an ideal choice for multi-story houses, large apartments, or small office spaces where a single router fails to reach every corner.
Operating on the 802.11ax standard, the M1500 delivers a total throughput of 1500 Mbps. The dual-band architecture allocates 1201 Mbps on the 5 GHz band for lag-free gaming and high-definition media consumption, while the 300 Mbps 2.4 GHz band handles smart home devices and standard browsing. This 3-pack configuration ensures that even the most distant rooms maintain high-speed access, effectively eliminating "dead zones" and buffering.
True Seamless Roaming: The system creates a unified network under a single SSID. Whether you are moving from the basement to the attic, your device will transition to the nearest node instantly without losing a signal.
Efficiency and Capacity: Equipped with OFDMA and MU-MIMO, the M1500 can handle over 100 devices simultaneously. It optimizes data transmission to multiple clients at once, preventing the "bottleneck" effect common in older Wi-Fi 5 systems.
Security Integration: The router supports WPA3, the most advanced security protocol available, alongside built-in VPN Client support (WireGuard, OpenVPN, Zerotier). This allows users to encrypt their entire network's traffic for enhanced privacy.
Each unit includes Gigabit WAN/LAN ports, enabling lightning-fast wired connections for gaming consoles or workstations. The M1500 is also highly scalable; if your coverage needs grow, you can easily integrate additional Cudy Mesh units to further expand your digital footprint.
