Colorful CVN Z790M FROZEN D5 V20 Motherboard

Colorful CVN Z790M FROZEN D5 V20 Motherboard
Colorful CVN Z790M FROZEN D5 V20 Motherboard
Colorful CVN Z790M FROZEN D5 V20 Motherboard
Colorful CVN Z790M FROZEN D5 V20 Motherboard
Upcoming
Colorful CVN Z790M FROZEN D5 V20 Motherboard
Colorful CVN Z790M FROZEN D5 V20 Motherboard
Colorful CVN Z790M FROZEN D5 V20 Motherboard
Colorful CVN Z790M FROZEN D5 V20 Motherboard
Colorful CVN Z790M FROZEN D5 V20 Motherboard
Product code
10447
Brand

Product model CVN Z790M FROZEN
Warranty 2 years
Total Reviews

Cash Discount Price

0৳
Check available payment method
Contact for bulk quantity: 01973167985

EMI Price

0৳
Starting from 0৳/month. For Discount
Price Click here to view 25 banks EMI Plans
Ex Tax: 0৳
***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Model CVN Z790M FROZEN D5 V20
Product Series CVN Series
Chipset Intel Z790
Processor Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
(* Please visit www.colorful.cn for the latest processor support list)
Memory 4 DDR5 memory sockets are provided, which can support up to 128 GB of memory (a single socket can support up to 32 GB of memory)
- Support DDR5-6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
- Intel is supported ® Extreme Memory Profile (XMP) memory technology
- supports dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports 3 M.2 slots and 6 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices
- M.2_1 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)
- M.2_2/M.2_3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
(* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)

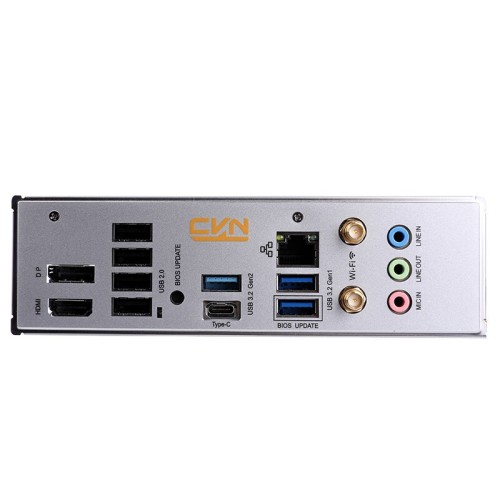

Board I/O Rear I/O:
- 1×USB 3.2 Gen 2 Type-C interface
- 1×USB 3.2 Gen 2 Type-A interface
- 2×USB 3.2 Gen 1 Type-A interfaces
- 4×USB 2.0 interfaces
- 1×DP 1.2 interface, supporting a maximum resolution of 4K 60Hz
- 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
- 1×2.5G network interface
- 3×audio interfaces
- 2×WiFi 6 antenna interfaces
- 1×BIOS update key
On board:
- 1×USB 2.0 pin
- 1×USB 3.2 Gen 1 pin
- 1×USB 3.2 Gen 1 Type-C slot
- 1×CPU fan pin
- 3×system fan pins
- 1×water cooling pump pin
- 2×5V 3-pin ARGB pins
- 2×12V 4-pin RGB pins
- 1×front audio pin
- 1×front panel pin
- 1×spraker pin
- 1×CMOS clearing key
- 1×serial port contact pin
- 1×BIOS burner pin
- 1×POST card pin
- 1×ME write protection jumper
- 1×RGB light effect control jumper
Expansion Slots 1×PCIe 5.0 x16 slot
1×PCIe 3.0 x4 slot
BIOS 128M UEFI, support multiple languages
Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor CPU fan speed is controllable, system fan speed is controllable(Fan1 supports independent control and Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN RTL8125 2.5Gbit LAN, AX201 WiFi 6 wireless network card, Bluetooth 5.2
Audio 5.1-Channel High Definition audio CODEC
Configuration M-ATX
245 x 245 mm

Colorful CVN Z790M FROZEN D5 V20 Motherboard

  • CVN series customized frost cooling armor
  • PCIe slot custom metal armor
  • 12+1+1 phase digital power supply design (Dr MOS 55A)
  • Provides 3 PCIe 4.0 x4 M.2 SSD slots
  • Provide one USB 3.2 Gen 2 10Gbps Type-C and one USB 3.2 Gen 2 10Gbps Type-A high-speed rear interface
  • Equipped with Realtek 2.5G high-speed wired network card and AX201 WiFi 6 wireless network card, supporting Bluetooth 5.2
  • Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
  • The I/O panel supports one click BIOS upgrade
  • Six protection technologies, more stable product operation
  • 200 processes are strictly tested with guaranteed quality
  • PCB atomization process comprehensively upgraded
  • "410" high-quality service and guaranteed after-sales service
