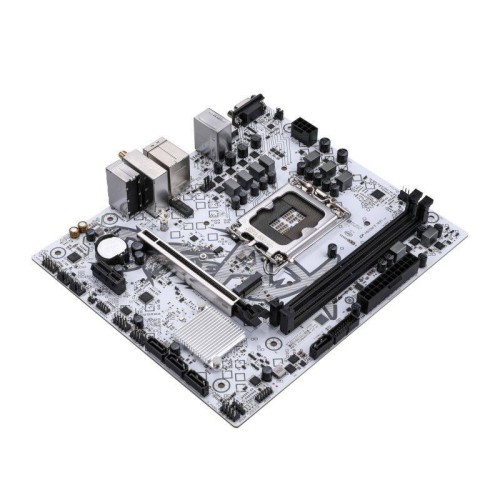

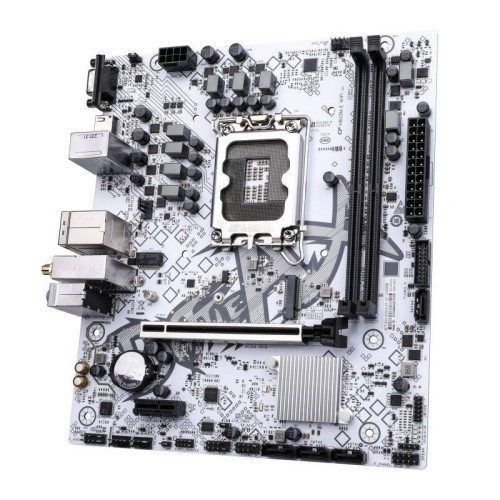

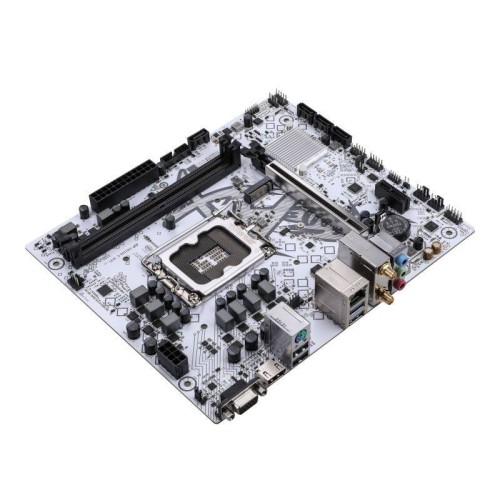

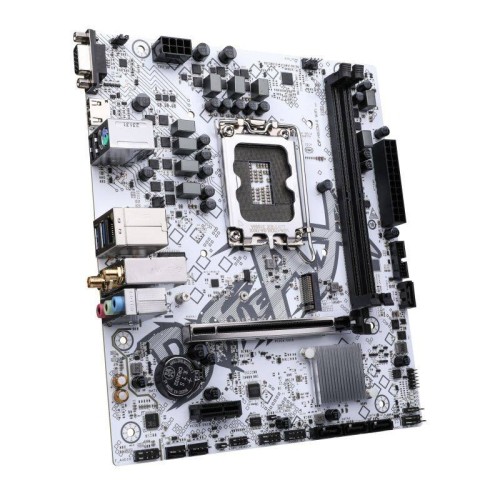

COLORFUL BATTLE-AX H610M-E WIFI V20 Motherboard
The COLORFUL BATTLE-AX H610M-E WIFI V20 motherboard is a cutting-edge and feature-rich option designed to cater to the demands of 12th and 13th generation Intel processors utilizing the LGA 1700 slot. Engineered with the Intel H610 chipset, this motherboard boasts a robust 128M UEFI BIOS that supports multiple languages, providing a versatile and user-friendly interface. In a Micro-ATX form factor measuring 225mm x 194mm, the motherboard is compact yet powerful, fitting seamlessly into a variety of PC builds. The audio experience is enhanced with a 5.1 sound card, delivering immersive sound quality for both entertainment and gaming purposes. For expansion, the motherboard offers 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot, ensuring compatibility with high-performance graphics cards and other expansion cards. The memory configuration includes 2 DDR4 slots supporting up to 64 GB of memory with dual-channel memory technology, accommodating DDR4-3200/2933/2666/2400MHz memory modules. Connectivity options are extensive, featuring an RTL8111H Gigabit network card for high-speed wired connections, as well as wireless capabilities through the RTL8821CE/AC3165 WiFi 5 and Bluetooth 4.2 modules. The motherboard also provides ample storage possibilities with 1 M.2 slot and 4 SATA 6Gb/s interfaces, supporting a variety of storage configurations. The rear I/O is well-equipped with 1 PS/2 interface, 4 USB 2.0 interfaces, 2 USB 3.2 Gen 1 Type-A interfaces, 1 HDMI 2.0 interface supporting up to 4K 60Hz resolution, 1 VGA interface, 1 Gigabit network interface, and 3 audio interfaces for versatile connectivity. The internal I/O ports include essential pins for CPU fan, system fan, water cooling pump, USB expansion, audio, and more. With a comprehensive set of features, including power management support for S3, S4, and network S5 wake-up, timed startup, and call startup, the COLORFUL BATTLE-AX H610M-E WIFI V20 motherboard is a reliable foundation for a high-performance and feature-packed desktop PC. Whether you are a gamer, content creator, or power user, this motherboard offers the performance and connectivity needed to meet diverse computing needs.
COLORFUL BATTLE-AX H610M-E WIFI V20 Features
- CPU Compatibility: Supports the latest 13th and 12th generation Intel processors, adapting to the LGA 1700 slot, including CoreTM, Pentium, and Cylon processors.
- Chipset: Utilizes the Intel H610 chipset for optimized performance and compatibility.
- BIOS: Equipped with a 128M UEFI BIOS that supports multiple languages, providing a user-friendly and versatile interface for system configuration.
- Form Factor: Compact Micro-ATX form factor with dimensions of 225mm x 194mm, making it suitable for a variety of PC builds.
- Audio: Features a 5.1 sound card for an enhanced audio experience, delivering high-quality sound for entertainment and gaming.
- Power Management: Supports S3, S4, network S5 wake-up, timed startup, and call startup for efficient power management.
- Expansion Slots: Includes 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot for additional component support.
- Memory: Two DDR4 memory slots supporting up to 64 GB of memory, with support for DDR4-3200/2933/2666/2400MHz memory and dual-channel memory technology.
- Connectivity: Equipped with an RTL8111H Gigabit network card for reliable LAN connectivity.
- Storage: Supports 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces for versatile storage options.
- Wireless Connectivity: Features RTL8821CE/AC3165 WiFi 5 Wireless network and Bluetooth 4.2 for wireless connectivity.
- USB Ports: Multiple USB ports, including USB 2.0 and USB 3.2 Gen 1 Type-A interfaces for versatile connectivity.

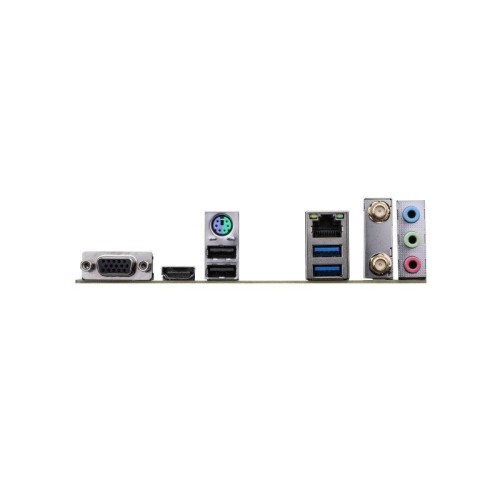

- Display Support: Rear I/O with HDMI 2.0 interface supporting up to 4K 60Hz resolution and VGA interface.
- Internal I/O Ports: Various internal interfaces for customization, including CPU fan pin, system fan pins, water cooling pump pin, USB expansion, audio pins, and more.
Feature Highlights:
- Intel H610 chipset
- Support dual-channel DDR4-3200MHz memory
- Provide 1 PCIe 3.0 x4 M.2 SSD slot
- Equipped with HDMI+VGA display interface
- Equipped with Realtek 8111H Gigabit wired network card, RTL8821CE/AC3165 WiFi 5 Wireless network, Bluetooth 4.2
- Realtek ALC897 sound card chip with up to 5.1 channels
- Rear: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
- Front: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
