| BASIC INFORMATION | ||
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel Z490 | |
| Audio | ALC1150 7.1 Channels, High Definition Audio | |
| CPU | Support For 10th/11th Generation Intel® Core™ I9 Processors/Intel® Core™ I7 Processors/Intel® Core™ I5 Processors/Intel® Core™ I3 Processors/Intel® Pentium® Processors/Intel® Celeron® Processors In The LGA1200 Package |
|
| Memory | ||
| Slots | 3 X PCIe 3.0 X 1 Slots 2 X PCIe 3.0 X 16 Slots(X 16 + X 4) | |
| Memory | Supports Dual Channel DDR4 2133/ 2400/ 2666/ 2800/ 2933 Supports Dual Channel DDR4 3200(OC)/ 3600(OC)/ 3800(OC) / 4000(OC)/ 4400+(OC) 2 X DDR4 DIMM Memory Slot, Max. Supports Up To 64 GB Memory Each DIMM Supports Non-ECC 4/ 8/ 16/ 32GB DDR4 Module Support For Extreme Memory Profile (XMP) Memory Modules |
|
| Connector & Ports | ||
| HDMI | HDMI 4K Resolution | |
| LAN | Intel I219V; 10/ 100/ 1000 Mb/S Auto-Negotiation, Half / Full Duplex Capability Supports Super LAN Surge Protection |
|
| Supported Storage | Total Supports 2 X M.2 Slots And 6 X SATA III(6Gb/S Ports) 1 X M2_32G_1 Socket , With M Key, Type 2242/2260/2280/22110 Storage Devices Support SATA & PCIE 3.0 X 4 Mode/Intel Optane Technology 1 X M2_32G_2 Socket , With M Key, Type 2242/2260/2280/22110 Storage Devices Support SATA & PCIE 3.0 X 4 Mode/Intel Optane Technology 6 X SATA III (6Gb/S) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology |
|
| Internal I/O Ports | 6 X SATA III Connectors (6Gb/S) 1 X M.2 (E Key) Socket : Supports 2230 Type Wi-Fi & Bluetooth Module And Intel CNVi 2 X USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports) 1 X USB 3.2 (Gen1) Header (Each Header Supports 2 USB 3.2 (Gen1) Ports) 1 X 4-Pin Power Connector 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X CPU Fan Connector 1 X CPU Water Cooling Connector (CPU_OPT) 2 X System Fan Connectors 1 X Front Panel Header 1 X Front Audio Header 1 X Clear CMOS Header 1 X COM Port Header 1 X TPM Header 1 X Thunderbolt 3 Header 2 X LED Header (5V) 1 X LED Header (12V) |
|
| USB Port | 6 X USB 3.2 (Gen1) Ports (4 On Rear I/Os And 2 Via Internal Header) 6 X USB 2.0 Ports (2 On Rear I/Os And 4 Via Internal Header) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |

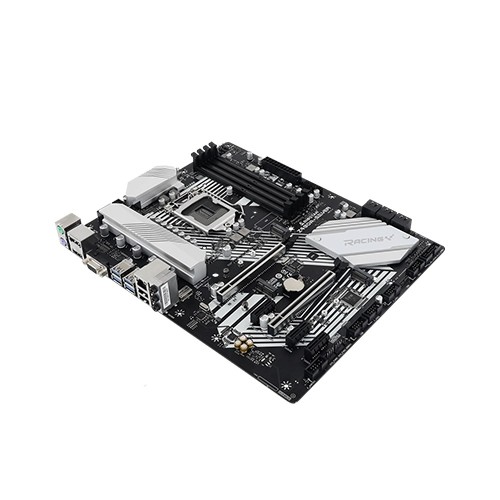

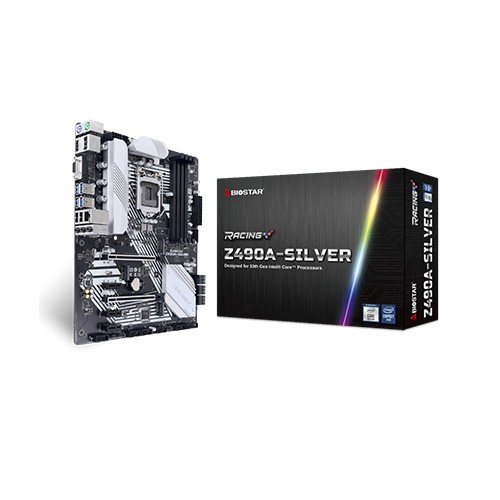

Powered Exclusively By 10th And 11th Gen Generation Intel Core, Pentium Gold, And Celeron Processors, The Prime Z490-A LGA 1200 ATX Motherboard From Biostar Boasts A Robust Power Design, Comprehensive Cooling Solutions, And Intelligent Tuning Options. It Provides Daily Users And DIY PC Builders A Range Of Performance Tuning Options Via Intuitive Software And Firmware Features. This Motherboard Will Fit In ATX Sized Cases, Supports The LGA 1200 Socket, The Intel Z490 Chipset, And Is Compatible With Windows 10 (64-Bit).

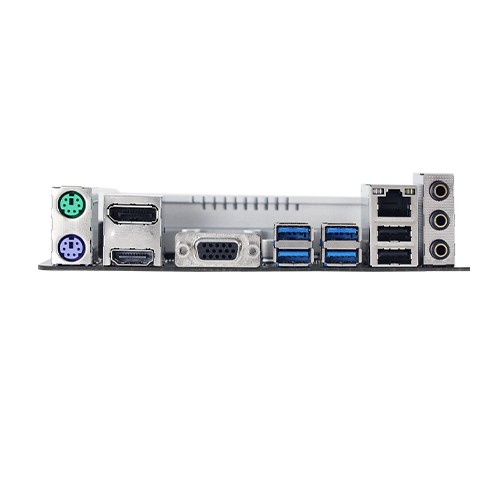

There Is Also One USB 3.2 Gen 2 Type-C Port (Rear Panel), Three USB 3.2 Gen 2 Type-A Ports (Rear Panel), Two USB 3.2 Gen 1 Type-A Ports (Rear Panel), Two USB 2.0 Type-A Ports (Rear Panel), And More Internal USB Headers That Support USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, And USB 2.0. For Those Looking To Expand Their System Using PCIe, There Is One PCIe 3.0 X16 Slot (X16 Or X8/X8), One PCIe 3.0 X16 Slot (Max At X4 Mode), And Three PCIe 3.0 X1 Slots. Network Connectivity Is Achieved Using An Intel I225-V 2.5Gb Ethernet Port.
For Delivering Sharp, Clear Graphics, This Motherboard Supports A Maximum Resolution Of 4096 X 2304 At 60 Hz Using DisplayPort 1.4 And HDMI 1.4b Outputs. For Users Looking To Take Advantage Of Multiple GPUs, The Biostar Racing Z490-A Supports AMD 3-Way CrossFireX And 2-Way NVIDIA SLI Technologies.
