| BASIC INFORMATION | ||
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | ALC1150 7.1 Channels, High Definition Audio, Hi-Fi(Front) | |
| CPU | Socket AM4 Support AMD 3rd Gen AMD Ryzen™ (Matisse / Renoir) Processors And Ryzen™ 4th Gen (Vermeer) Processors Support For Future AMD Ryzen Processors With BIOS Update |
|
| Memory | ||
| Slots | 1 X PCI Slot 1 X PCIe 4.0/ 3.0 X16 Slot (PEX16_1): Supports X 16 Lanes With AMD Ryzen™ 3rd Gen Processors. (Matisse Only) Supports X8 Lanes AMD Ryzen™ With Radeon Vega Graphics Processors. (Depended On CPU) 1 X PCIe 3.0 X 16 Slot (PEX16_SB_1): Supports X 4 Lanes 3 X PCIe 3.0 X 1 Slot * According To Different CPUs Will Have Different Speeds. * PCIe 4.0 Speed Only For AMD® Ryzen™ 3rd Gen Matisse. * When Using PCIe X 1 Slots (PEX1_1/ PEX1_2/ PEX1_3 ), PCIe X 16 Slot (PEX16_SB_1) Will Be Adjusted To X1 Lanes. |
|
| Memory | 3rd Gen AMD Ryzen Processors (Matisse CPUs) Support For DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen With Radeon Graphics Processors (Renoir APUs) Support For DDR4 4933+ (OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 4 X DDR4 DIMM Memory Slot, Max. Supports Up To 128 GB Memory Each DIMM Supports Non-ECC 8/ 16/ 32 GB DDR4 Module |
|
| Connector & Ports | ||
| LAN | RTL8125 10/ 100/ 1000/ 2500 Mb/S Auto Negotiation, Half / Full Duplex Capability Supports Realtek 2.5GbE LAN |
|
| Supported Storage | 6 X SATA III Connector (6Gb/S) : Supports AHCI & RAID 0, 1, 10 2 X M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD Module Supports PCIe 4.0 X 4 (64Gb/S)/ 3.0 X 4 (32Gb/S) - NVMe/ AHCI SSD Supports SATA III (6.0Gb/S) SSD * M.2 (M Key) Socket: The Bandwidth Is Depended On CPU. Supports PCIe 4.0 X 4 (64Gb/S) Speed, Which Depends Only On Ryzen 3rd Gen Matisse. * When M2_PCIe-SATA2 Slot Is Occupied By SATA Mode, The SATA_2L Connector Will Be Disabled. |
|
| Internal I/O Ports | 6 X SATA III (6.0Gb/S) Connector 2 X USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports) 1 X USB 3.2 (Gen1) Header (Each Header Supports 2 USB 3.2 (Gen1) Ports) 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X CPU Fan Connector 1 X CPU Water Cooling Connector (OPT_FAN1) 2 X System Fan Connector 1 X Front Panel Header 1 X Front Audio Header 1 X Clear CMOS Header 1 X S/PDIF Out Connector 1 X COM Port Header 2 X LED Header (5V) 1 X LED Header (12V) |
|

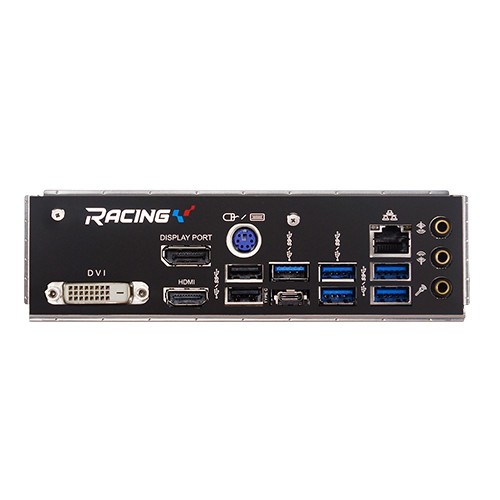

| USB Port | 1 X USB 3.2 (Gen2) Type-C Port (1 On Rear I/O) 1 X USB 3.2 (Gen2) Type-A Port (1 On Rear I/O) 6 X USB 3.2 (Gen1) Port (4 On Rear I/Os And 2 Via Internal Headers) 6 X USB 2.0 Port (2 On Rear I/Os And 4 Via Internal Headers) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |

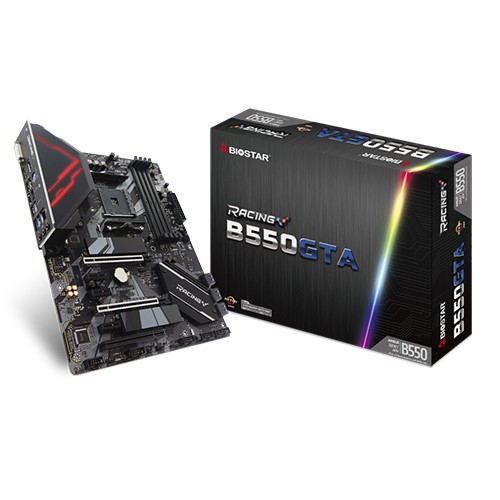

BIOSTAR B550GTA AMD Gaming Motherboard is going to go mainstream. The Racing B550GTA is an ATX motherboard that is equipped with the B550 chipset for AMD socket AM4 that brings support for Ryzen 3rd gen processors. It offers fast processing power, great bandwidth, and game responsiveness to bring the best gaming impact to gamers. It has PCle 4.0, Pale M.2 4.0, Armor Gear, CPU OPT Header, VIVID LED DJ, LED ROCK ZONE, and BIOS EZ Mode. All the flashy features you should ever want. AMD B550 is the high-end chipset for overclockers and tweakers who need robust platforms. This chip provides the ultimate low-level control to its users and delivers ultimate graphics card bandwidth.It also supports PCI-E Gen4 bandwidth. The new 4K2K resolution enables a high-definition image display with four times the resolution of Full HD, 4K2K display is faithfully expressed bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data. SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA 3G.
