| BASIC INFORMATION | ||
| Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Basic Information | ||
| Chipset | Intel Z790 Chipset | |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover 5 x Audio jacks |
|
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port | 1 x DisplayPort | |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN | 1 x Intel 2.5Gb Ethernet TUF LANGuard |
|
| Wireless | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 | |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

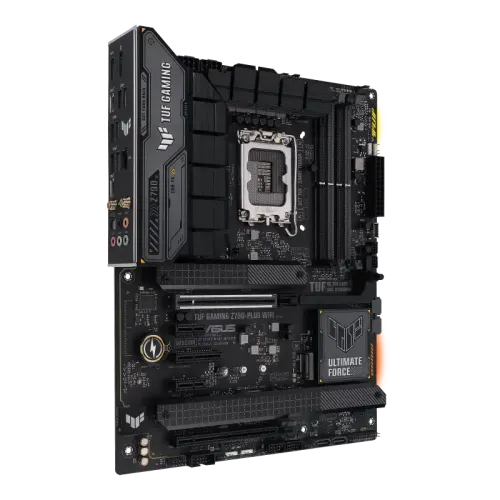

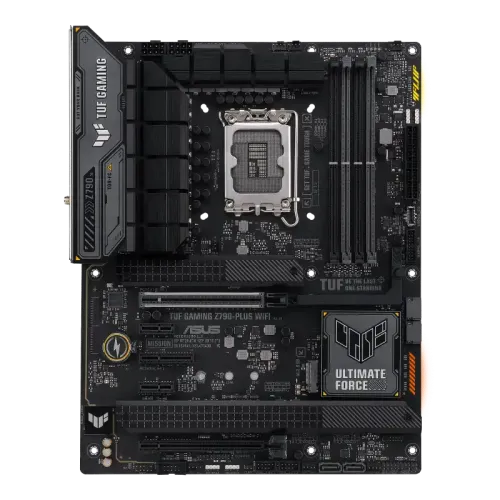

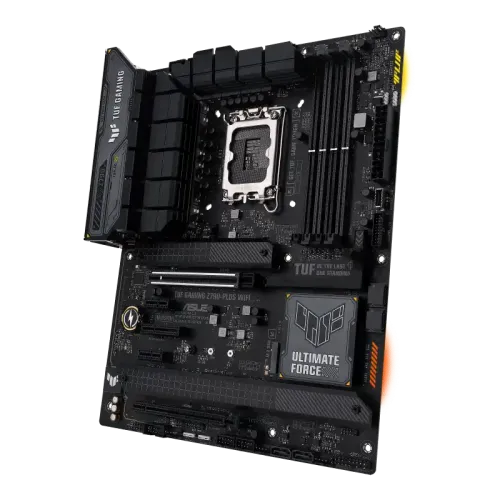

ASUS TUF GAMING Z790-PLUS WIFI DDR5 13th Gen & 12th Gen Motherboard
The ASUS TUF GAMING Z790-PLUS WIFI DDR5 13th Gen & 12th Gen Motherboard is a powerful and reliable motherboard designed for gaming enthusiasts and PC builders. With support for both 13th and 12th generation Intel Core processors, as well as Pentium Gold and Celeron processors, it offers excellent performance and compatibility.One of the standout features of this motherboard is its audio capabilities. It features the Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC, providing immersive audio experiences. It supports impedance sensing for front and rear headphone outputs, along with an internal audio amplifier that enhances sound quality for headphones and speakers. With a high-quality 120 dB SNR stereo playback output and 113 dB SNR recording input, the motherboard ensures exceptional audio fidelity. It also comes equipped with premium audio capacitors, audio shielding, and dedicated audio PCB layers for optimal audio performance.The motherboard boasts an ATX form factor, providing ample space for expansion and customization. It features an Intel Z790 chipset, offering extensive connectivity options and support for the latest technologies. With one DisplayPort and one HDMI port, it allows for high-resolution display connections.In terms of storage and memory, the ASUS TUF GAMING Z790-PLUS WIFI motherboard is well-equipped. It supports DDR5 memory, offering faster data transfer speeds and higher capacities. The motherboard includes four M.2 slots and four SATA 6Gb/s ports, providing flexibility for storage expansion and fast data access.The motherboard offers a comprehensive range of I/O ports, including USB 3.2 Gen 2x2, USB 3.2 Gen 1, USB 2.0 headers, addressable Gen 2 headers, and more. It also features Wi-Fi 6E and Bluetooth v5.3 for seamless wireless connectivity.ASUS prioritizes durability and protection with its TUF Gaming series. The TUF GAMING Z790-PLUS WIFI motherboard features various ASUS TUF protections, including DIGI+ VRM for stable power delivery, ESD guards, TUF LANGuard for reliable networking, overvoltage protection, and Safeslot for reinforced PCIe slots. It also incorporates ASUS Q-Design elements for easy installation and troubleshooting.The motherboard comes bundled with ASUS exclusive software, including Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, and more, enhancing the user experience and customization options.ASUS stands behind the quality of the TUF GAMING Z790-PLUS WIFI motherboard with a three-year warranty, providing peace of mind and support.
Enhanced Power Solution
The ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard delivers consistent power throughout the entire motherboard, preserving electrical volume whether you are performing simple chores or operating at full power during resource-demanding procedures. It is equipped with a 16+1 Phase Power DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors that allow for stable power delivery.
Connectivity to the Core
Fast internals and accessories can be connected to via PCIe 5.0 and Thunderbolt 4 headers, as well as a front-panel USB-C 3.2 Gen 2x2 port. USB 3.2 Gen 2 doubles the speed of its predecessor, with a maximum throughput of 10 Gb/s when utilized with compatible devices, and is synonymous with USB 3.1 Gen 2.
Aura Sync RGB Effects
The ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard offers an edge lighting design, addressable RGB headers, and RGB strip header support to let you set the mood for your favorite games.
