| BASIC INFORMATION | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |
|
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot Supports Intel Optane Memory H Series on PCH-attached PCIe slot. |
|
| M.2 Socket | Total supports 2 x M.2 | |
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | Max. 128GB, DDR4 | |
| Storage | 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
|
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' resolution. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |
| USB (s) | Rear USB:Total 8 ports Total 8 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports Total 7 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN | TUF LANGuard 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Wireless | 1 x ASUS Wi-Fi moving antennas | |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
|

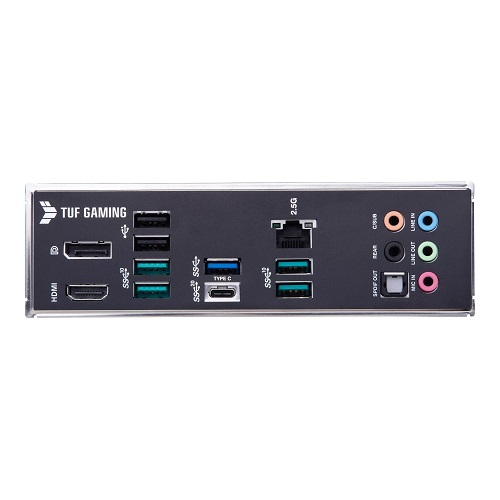

| Internal I/O Ports | Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers |
|
| USB Port | 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years warranty | |

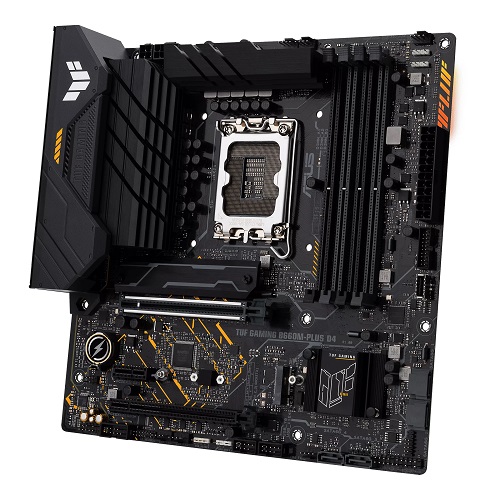

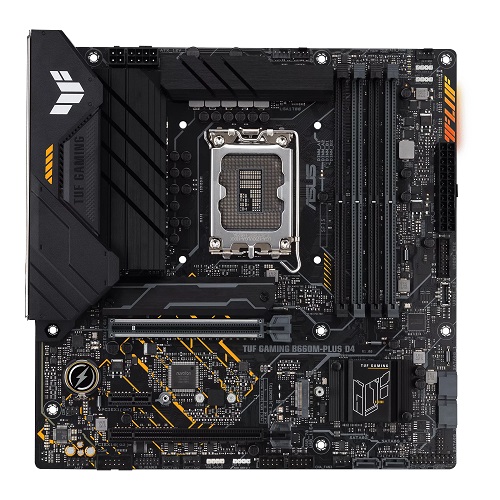

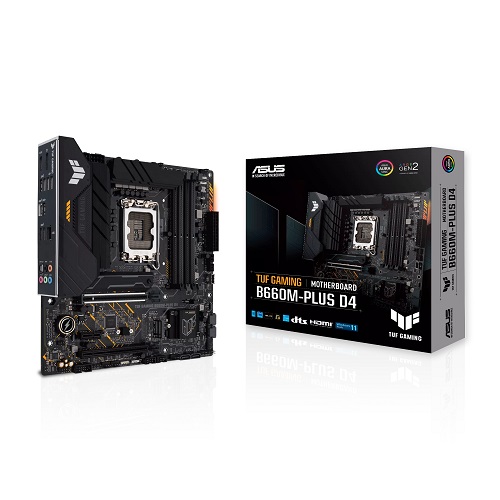

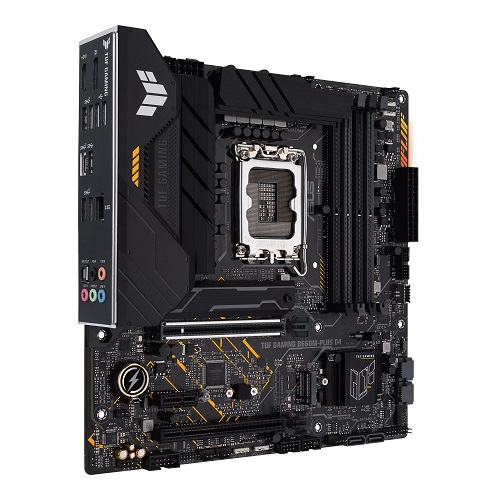

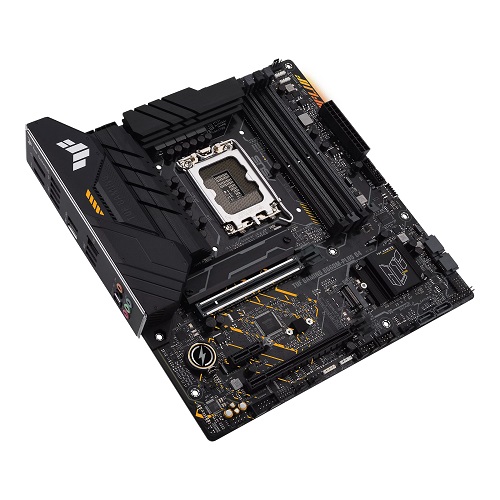

Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
The Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard is a high-performance motherboard designed for gamers and PC enthusiasts seeking top-notch performance and reliability. With its impressive array of features and robust construction, this motherboard sets the stage for an exceptional gaming experience.The TUF GAMING B660M-PLUS D4 motherboard supports Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors, ensuring compatibility with the latest and most powerful CPUs. It supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, enabling enhanced performance and faster processing speeds.One of the standout features of this motherboard is its audio capabilities. Equipped with the Realtek 7.1 Surround Sound High Definition Audio CODEC, it delivers an immersive audio experience with support for jack-detection, multi-streaming, and front panel jack-retasking. The motherboard supports up to 24-Bit/192 kHz playback, ensuring high-fidelity audio reproduction. With premium audio capacitors, dedicated audio PCB layers, and audio shielding, you can enjoy crystal-clear sound and precise audio positioning in your games and multimedia applications.In terms of connectivity, the TUF GAMING B660M-PLUS D4 offers various options to connect your peripherals. It features multiple USB ports, including a USB 3.2 Gen 2x2 port, USB 3.2 Gen 2 ports, USB 3.2 Gen 1 ports, and USB 2.0 ports, allowing you to connect and transfer data to and from your devices quickly. The motherboard also includes DisplayPort and HDMI ports for high-quality video output, supporting resolutions up to [email protected] a microATX form factor measuring 24.4cm x 24.4cm, this motherboard fits perfectly in smaller PC cases without compromising on performance. It offers a wealth of expansion slots, including PCIe 5.0 x16, PCIe 3.0 x16 (supports x4 mode), and PCIe 4.0 x1 slots, providing flexibility for adding additional graphics cards, expansion cards, and storage devices.The TUF GAMING B660M-PLUS D4 motherboard supports a maximum memory capacity of 128GB DDR4, allowing for seamless multitasking and efficient memory performance. It features dual-channel memory architecture and supports Intel Extreme Memory Profile (XMP) for optimized memory overclocking.Built with durability in mind, this motherboard incorporates TUF LANGuard and ASUS Wi-Fi moving antennas for enhanced network connectivity and protection against voltage surges. It also includes ASUS-exclusive software such as Armoury Crate, AURA Sync, and Fan Xpert 4, offering customizable lighting effects, fan control, and system optimization..The Latest Asus TUF GAMING B660M-PLUS D4 Motherboard offers 01 year warranty.
