| BASIC INFORMATION | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Basic Information | ||
| Chipset | Z690 | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
|
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Memory | ||
| Memory | Type: DDR5 Slots: 4 x DIMM Supported Memory: 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II Maximum Memory: 128GB |
|
| Storage | Intel12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports |
|
| Graphics | ||
| Graphics | 1 x DisplayPort (Support max. 8K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| LAN | 1 x Intel 2.5Gb Ethernet | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt header |
|
| USB Port | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years | |

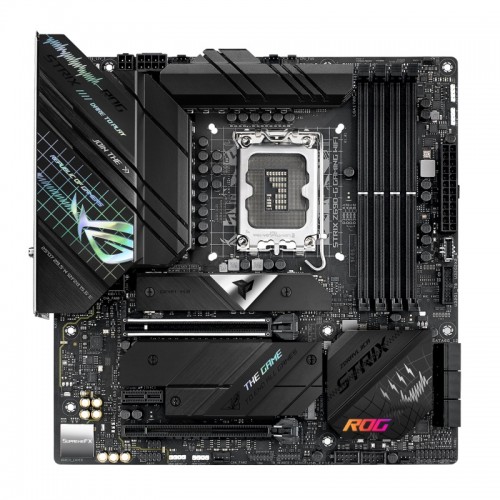

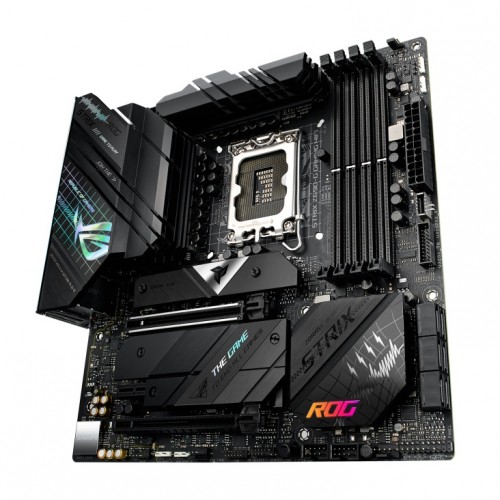

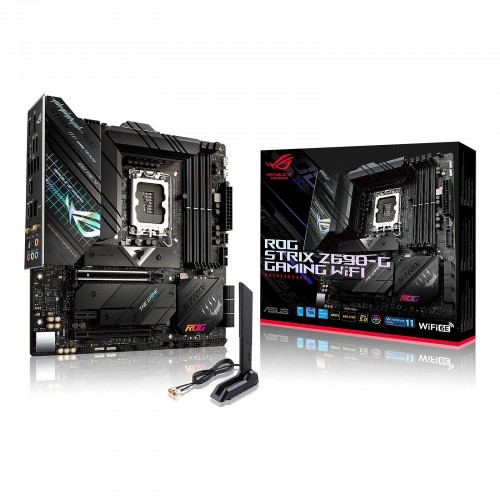

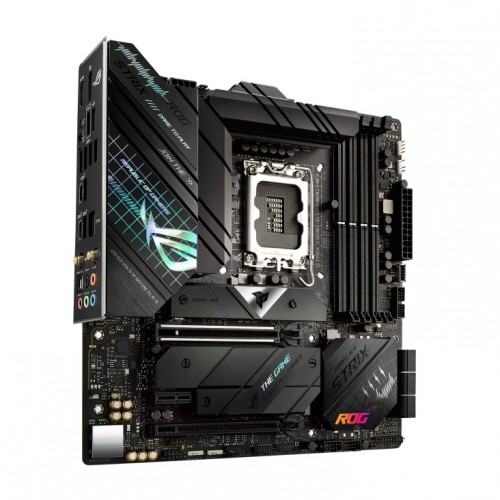

Asus ROG Strix Z690-G Gaming WiFi is the premiere choice for enthusiasts who enjoy building compact mATX setups. Premium-grade power delivery, cooling, and the latest networking standards have been packed in to ride alongside DDR5 and PCIe 5.0, unleashing the full force of 12th Gen Intel Core processors. And layered on top, there’s a stack of ASUS-exclusive intelligent controls to optimize every aspect of system performance.
This Asus ROG STRIX Z690-G Gaming WIFI Motherboard is great for enthusiasts looking for a potent upgrade to their existing gaming system. It comes equipped with an Intel LGA 1700 socket, which supports 12th Gen Intel processors and has room for an unlimited number of mSATA and NVMe devices thanks to its one chipset set up. It’s also a LinkIt 7 GBit/s WiFi adapter that has M.2 and WiGig capabilities that allow it to operate at even faster speeds than expected from your existing Wi-Fi connection.Asus ROG STRIX Z690-G Gaming WIFI Motherboard features an Intel LGA-1700 Socket, ready for 12th Gen Intel processors. The integrated I/O cover and VRM heatsinks ensure your Intel Z370 motherboard stays cool during even the most intense gaming sessions. A Gaming powerhouse with exceptional performance, built for the Gaming pro. The ROG STRIX Z390 Dominus Extreme Motherboards delivers a truly extreme gaming experience, allowing you to enjoy your favorite games at 4K resolution and 120Hz on multiple monitors.
