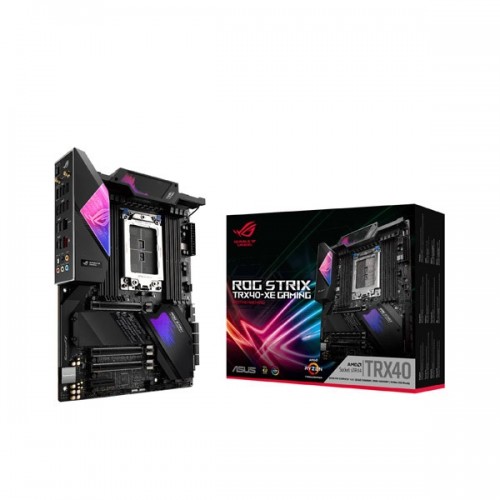

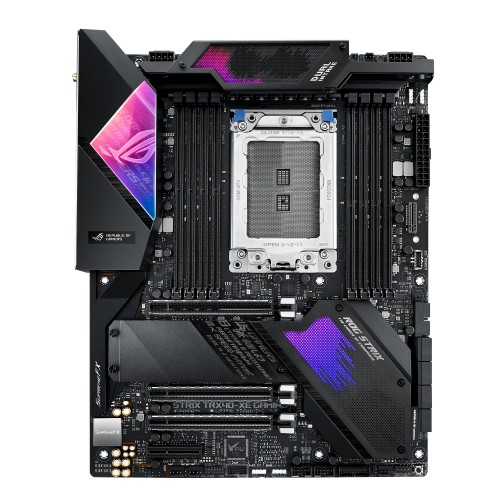

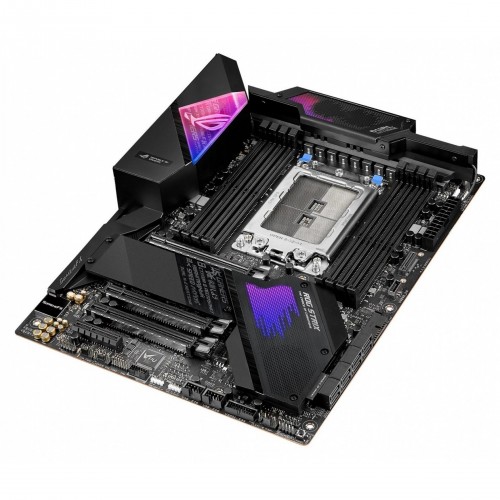

Asus ROG Strix TRX40-XE Gaming AMD Motherboard

ASUS ROG STRIX TRX40-XE GAMING Motherboard Supports Third-Generation AMD Ryzen Threadripper Processors With The TRX4 Socket For High-End Video Games And Content Creation. The AMD TRX40 Chipset Takes Full Advantage Of The Massive PCIe 4.0 Knowledge Information Measure To Handle Demanding Tasks Resembling 4K Live Streaming, Video Editing, And Gaming At High Settings. ASUS ROG STRIX TRX40-XE GAMING Up To 256GB Of Quad-Channel Code DDR4 RAM, Reaching 4666 Rates Once Overclocked Is Put In Across Eight Memory Slots To Enhance The System's Multitasking Capabilities And Speed. The ASUS ROG STRIX TRX40-XE GAMING Motherboard Conjointly Options Advanced Cooling And Supports Up To 3 M.2 SSDs And Eight SATA III Storage Drives, Which May Be Placed Into RAID 0, 1, Or Ten Configurations. ASUS ROG STRIX TRX40-XE GAMING's Three PCIe 4.0 X16 Slots Can Accommodate A Pair Of-Way NVIDIA SLI Or AMD CrossFireX Configurations To Maximize Your System's Frame Rates At High Resolutions Whereas A Further PCIe 4.0 X4 Slot Is Obtainable For Compatible Devices. Seven USB 3.2 Info 2 Type-A Ports And One Type-C Port Is Available To Transfer Knowledge From Compatible Devices At Up To 10 Gb/S. Hook Up With Compatible High-Speed Networks Through The Gigabit Ethernet And A Pair Of.5 Gigabit LAN Ports, Or Use The Intrinsic  802.11ax Wi-Fi To Wirelessly Transfer Knowledge At Up To 1.73 Gb/S. The ROG Strix TRX40-XE Delivers Deep And Immersive 8-Channel Audio Through The SupremeFX S1220 Codec, And You'll Additionally Customize Your Computing Expertise By Connecting Light-Weight Strips To The Available Info 2 Aura Adjust RGB Lighting Headers For Dazzling Effects. Windows Ten 64-Bit Is Needed To Require Advantage Of All The ASUS ROG STRIX TRX40-XE GAMING Motherboard Features.

AMD TRX40 Chipset

Supporting third-generation AMD Ryzen Threadripper processors, the TRX40 chipset is designed for visual effects artists, data scientists, and other professionals who require high-end computing power. The chipset takes advantage of PCIe 4.0 bandwidth for multi-GPU configurations, NVMe storage arrays, and more. Additionally, the platform supports quad-channel DDR4 ECC RAM with unlocked overclocking for even greater speed and power.

Storage and Memory

• Three PCIe 4.0 M.2 slots are available, supporting up to type 22110 SATA and NVMe SSDs.
• Eight SATA III ports are available for hard drives and 2.5" SSDs.
• Supports RAID 0, 1, and 10.
• Up to 256GB of quad-channel DDR4-4666 (OC) memory can be installed across eight slots.
• The RAMCache III utility can automatically caches all your storage devices so that games and apps load faster.

Enhanced Cooling

• The closely packed, multilayered stacked-fin heatsink maximizes surface contact to speed heat dissipation.
• A backplate balances MOSFET temperatures while providing structural reinforcement.
• The thermal pad transfers heat from the inductor and phase array to the heatsink.
• Two of the M.2 slots are covered by a large heatsink to help prevent speed throttling when the SSDs become too hot.
• ProCool II power connectors ensure a strong connection to the power lines and feature a reinforced metal construction for better heat dissipation.
• This motherboard's chokes and caps are engineered to resist extreme temperatures.
• The Active chipset heatsink includes a heatsink and fan combination that helps to cool the chipset and avoid throttling during sustained data transfers.
• A SoC VRM heatsink is located in the pathway of the chipset fan's airflow, which helps keep components cool when the memory is overclocked.
• Fan Xpert 4 provides manual or automatic fan speed control. Extreme Quiet mode reduces fan speeds to below the default minimum to keep your system quiet during light tasks.

SupremeFX Audio

The Integrated  Asus ROG STRIX TRX40-XE GAMING Comes With The SupremeFX S1220 Codec Offers A Flat Frequency Response For Detailed Audio. Asus ROG STRIX TRX40-XE GAMING Integrated Audio Functions 10-Channel DACs, 7.1-Channel Simultaneous Playback, And Independent 2.0-Channel Multistream Stereo Sound At The Outputs On The Front Panel. Asus  ROG STRIX TRX40-XE GAMING Have 192 KHz Playback Support Stereo 120 DB Signal-To-Noise Ratio At The Input 108 DB Signal-To-Noise Ratio At The Input Electromagnetic Shielding Protects Against Interference From Neighboring Components For A Cleaner Sound Two Integrated Amplifiers Supply Your Headphones Or Speakers With A Speaker Impedance Of 32 -600Ω Nichicon Capacitors Are Designed To Produce Warm, Natural Sound With High Clarity. ASUS ROG STRIX TRX40-XE GAMING Motherboard Sonic Studio III Software Allows You To Customize EQ Profiles For Different Audio Devices And Applications. The DTS: Sound Unbound App Works With Windows Sonic Technology To Give The Headphones Spatial Sound That Immerses You In Virtual Environments And Entertainment.
