| BASIC INFORMATION | ||
| BIOS | 128 Mb | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Basic Information | ||
| Chipset | Intel B660 | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
|
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 10 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Expansion Slots | ||
| PCI | Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header - Addressable Gen 2 headers Bundled Software ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility EPU DIGI+ VRM Turbo app ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Memory | ||
| Slots | 4 x DIMM PCI Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot** * Supports Intel Optane Memory H Series on PCH-attached PCIE slot ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. |
|
| Supported Memory | 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Memory | DDR4 | |
| Storage | Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Graphics | ||
| Graphics | Graphics 1 x HDMI port (Support 4K@60Hz as specified in HDMI 2.1.) 1 x USB Type-C port supports DisplayPort output (Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.) 1 x DP IN that will have output through USB Type-C port (A DisplayPort to DisplayPort cable is required for the USB Type-C port at the back panel to output DisplayPort signal.) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |

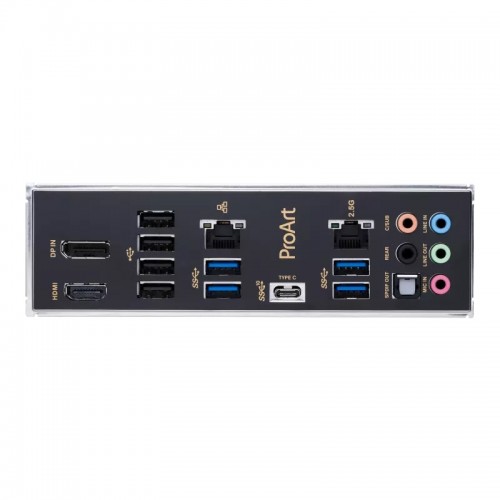

| USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2 Type-C port (shared with DisplayPort graphic output) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN | 1 x Realtek 2.5Gb Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard |
|
| Wireless | M.2 slot only (Key E, PCIe) *Wi-Fi module is sold separately. |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

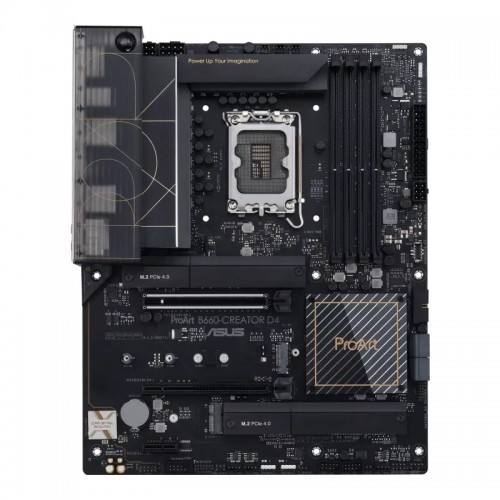

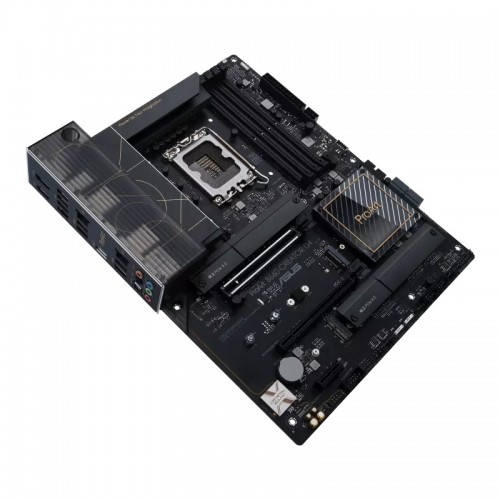

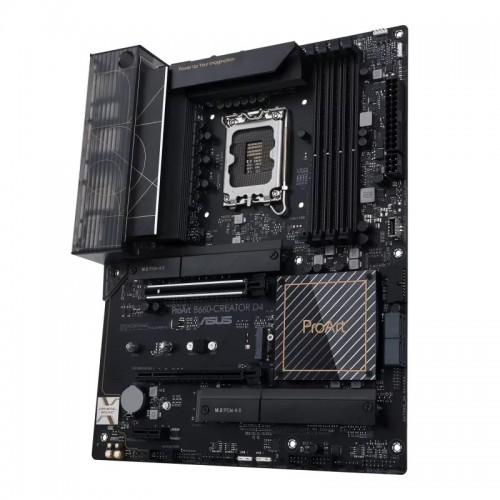

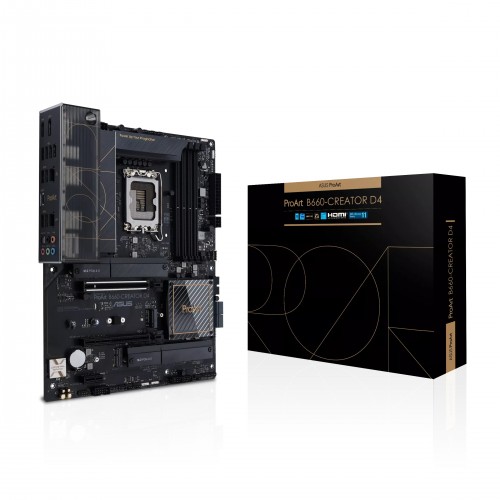

ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard
The ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard is a feature-packed motherboard designed for creative professionals and content creators. It supports 12th generation Intel Core processors, Pentium Gold, and Celeron processors, providing exceptional performance for demanding workloads.The motherboard incorporates a Realtek 7.1 Surround Sound High Definition Audio CODEC, offering immersive audio experiences. It supports jack-detection, multi-streaming, and front panel jack-retasking. With premium audio capacitors, dedicated audio PCB layers, and an audio cover, the motherboard ensures high-quality audio output. The power pre-regulator minimizes power input noise, delivering consistent audio performance. Please note that 32-bit/192kHz is not supported for 7.1 Surround Sound audio due to limitations in HDA bandwidth.The BIOS of the motherboard features a 128 Mb Flash ROM and offers a user-friendly UEFI AMI BIOS interface. The ASUS ProArt B660-CREATOR D4 motherboard also comes bundled with various software applications, including the ASUS Exclusive Software Armoury Crate, AURA Creator, AURA Sync, Fan Xpert 4, and Two-Way AI Noise Cancelation. Additionally, it includes utilities like AI Suite 3, EPU DIGI+ VRM, and Turbo app. The motherboard supports ASUS Control Center Express (ACCE) for IT management and includes Norton Anti-virus software and WinRAR.With its ATX form factor, the motherboard offers a stable and expandable platform for building a high-performance workstation. It supports Intel Socket LGA1700 and Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, ensuring optimized performance. The Intel B660 Chipset provides enhanced functionality and connectivity options.In terms of graphics, the motherboard offers an HDMI port that supports 4K@60Hz as specified in HDMI 2.1. It also includes a USB Type-C port that supports DisplayPort output, allowing for a maximum resolution of 8K@60Hz as specified in DisplayPort 1.4. For output through the USB Type-C port, a DisplayPort to DisplayPort cable is required.The ASUS ProArt B660-CREATOR D4 motherboard provides excellent connectivity options with multiple USB ports, both at the rear and front. It includes USB 3.2 Gen 2 Type-C ports, USB 3.2 Gen 1 ports, and USB 2.0 ports, offering fast data transfer rates and convenient device connectivity.Storage options include three M.2 slots that support PCIe 4.0 x4 and PCIe 3.0 x4 modes, providing fast storage performance. Additionally, it features four SATA 6Gb/s ports for traditional storage devices.The motherboard supports a maximum memory capacity of 128GB and utilizes DDR4 memory technology. It offers a wide range of supported memory speeds, including overclocking options, and supports Intel Extreme Memory Profile (XMP) and OptiMem II for optimized memory performance.Special features of the ASUS ProArt B660-CREATOR D4 motherboard include ASUS 5X PROTECTION III for enhanced reliability, ASUS Q-Design elements for easy installation, and an efficient thermal solution with flexible M.2 heatsinks and VRM heatsink design. The ASUS ProArt B660-CREATOR D4 motherboard offers 03 years warranty.
